Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-9 Work Days
Brand:
HuanYu Dream
Product Description

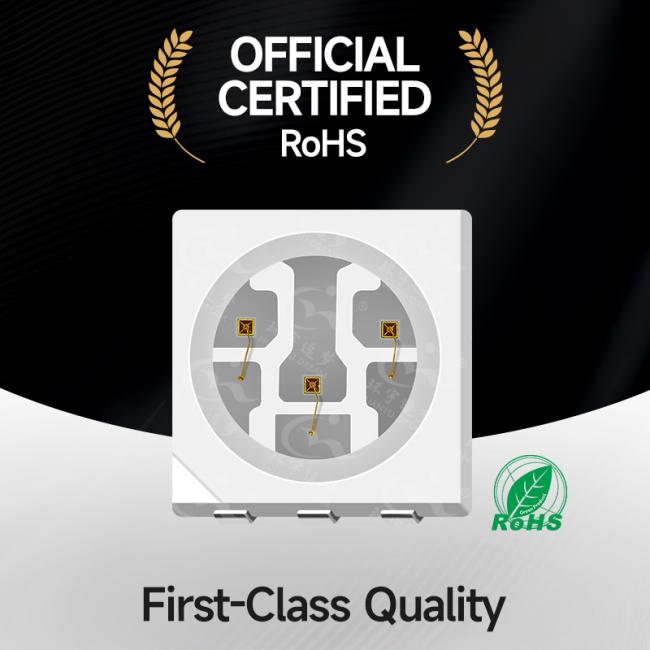

Medical Aesthetic Light Source 5050 SMD Chips
High-power LED chips in 660nm, 730nm, 810nm, 830nm, and 850nm infrared wavelengths for beauty therapy spectrometers and hair growth caps.
5050 SMD 830nm 850nm Color Infrared Red LED Chip Features
- Power: 0.2-1W (2V*300mA)
- Low thermal resistance
- Super long life >50,000 hours
- Compact structure, smaller size can achieve higher power
- Large chip area, deep support cup, and wider heat dissipation path for long-term illumination with minimal spectral drift and slow light decay
- Bright colors and true appearance with customization options for photography and studio lighting
Technical Specifications
| Parameter | Value |
|---|---|
| Electronic power | 1W |
| Color temperature | 850nm (660nm, 730nm, 830nm, 940nm available) |
| CRI | 70 |
| VF | 1.6-2.2V |
| IF | 150mA /300mA |
| Lumen | 1-2LM |
| Whole size | 5.0*5.4mm |
| Chip | Sanan/Epistar |
| View angle | 120° |
| Warranty | 3 years |
| Leading time | 7-10 days |
Absolute Maximum Ratings at Ta=25℃

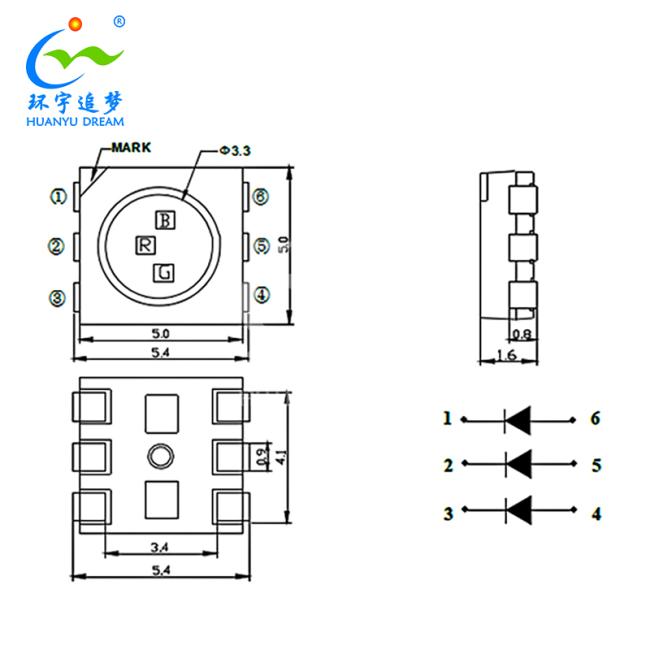

Dimensions (Tolerance: +/-0.1, Unit: mm)
Recommended Wavelengths for Aesthetic Phototherapy
| Color | Main Wavelength (±5 nm) | Functions |
|---|---|---|
| UV | 365nm, 400nm, 430nm | Anti-inflammatory & antibacterial effects, skin purification, bruise & pain relief |
| Blue | 460nm | Skin rejuvenation and detoxification |
| Yellow | 590nm | Lymphatic activation, hyperpigmentation correction, soothing effect |
| Orange | 605nm | Collagen synthesis, wrinkle reduction, microcirculation |
| Red | 630nm, 640nm, 660nm | Superficial pigmentation, fine line reduction, scar remodeling & joint pain |
| Infrared Red | 810nm, 830nm, 850nm, 880nm, 940nm | Tissue temperature regulation, vasodilation, accelerated tissue repair |
Applications
- Photography Lighting & Studio Lighting
- Indoor lighting: Fluorescent lamp, tube
- Commercial illumination and displays: Advertising words, light box
- Light strip
- LCD Back lighting
- Other illumination and displays
About Us
Frequently Asked Questions
Q1. How to proceed an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places order.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity.
Q3. Do you have any MOQ limit for LED light order?
A: MOQ is 100pcs for each model.
Q4. Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q6. How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new replacements.
Q7. Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
