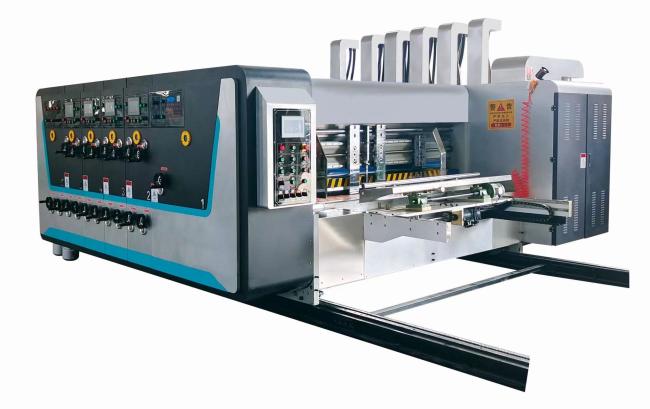

Non Bond Joining Carton Printing Machine With Slotter Die Cutter
Carton Printing Machine With Slotter & Die Cutter
1600x2800mm
| Model | 1600x2800 | 1600x3200 | 1600x3600 |
| Max. Speed (pcs/min) | 180 | 180 | 160 |
| Max. Feeding Size (mm) | 1600×2800 | 1600×3200 | 1600×3600 |
| Min. Feeding Size(mm) | 450×600 | 450×600 | 450×600 |
| Skip Feeding(mm) | 1900×2800 | 1900×3200 | 1900×3600 |
| Max. Printing Size (mm) | 1600×2760 | 1600×3160 | 1600×3560 |
| Min. Slotting(L:mm) | 260×65× 260×65 | 260×65× 260×65 | 260×65× 260×65 |
| Min. Slotting (R: mm) | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 |
| Max. Slotting Depth (mm) | 400 | 400 | 400 |
Carton Box Flexo Printing Machine Introduction
1. Electrical adjustment of grooving phass with data displayed.
2. 360 degree adjustment of grooving phases with data displayed.
3. Intergrated adjustment of carbon box grooving clearance and pressing trace clearance.
4. The mid blade is move able, which makes processing of over-sized boxes easy.
5. The axis handles possessionas as a result of grinding chromate treatment.
6. Central filling of lubricant on 45# forged gears makes low noise and stable running.
7. Non-bond joining ensures long-term accurately.
Feeding unit
Die-cutting part:
1. Axial position cycling moving automatically
2. Choose excellent durable rubber imported from Taiwan
3. With repair-auto rubber device
4. Track and compensate after lower and upper roller repair
5. Slotting slitting knife is special designed and installed on special fixtures , four blade can sync adjust box height . Load and install is convenient and it can replace rotary slotting machine . Blade incision is smooth
6.Die-cutting roller lift pneumatically and make rubber good when idling and phase adjustment to save cost
7. Rubber shaft axial moving 40mm automatically . Creasing not repeat and improve rubber using life
8. Rubber shaft with repair device auto and can repair 3-4 times
