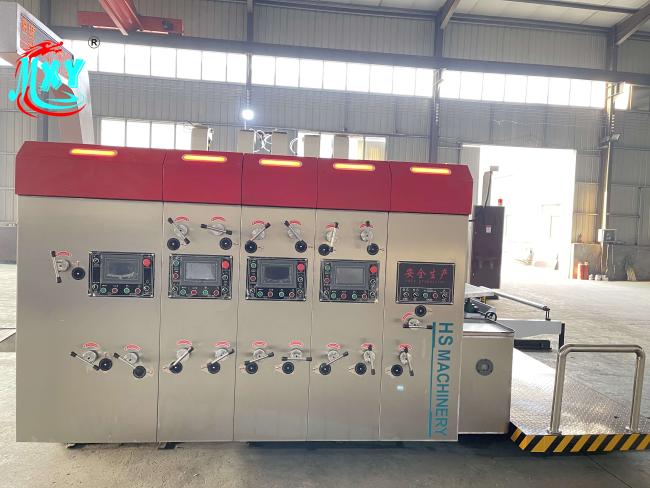

2 Color Big Size Flexo Printing Slotter Rotary Die Cutting
Big Size Automatic Lead Edge Corrugated Box Printing Slotter
2200x5200mm
| Data/Model | 1600*3600 | 2200*3600 | 2200*4000 | 2200*4600 | 2200*5200 | 2600*3600 | 2600*4000 | 2600*4600 | 2600*5300 |
| Printing Speed(m/min) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Max.Machine Speed(pcs/min) | 120 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 |
| Max.Feeding Size(mm) | 1570x3600 | 2100x3600 | 2100x4000 | 2100x4600 | 2100x5300 | 2500x3600 | 2500x4000 | 2500x4600 | 2500x5300 |
| Min.Feeding Size(mm) | 450x760 | 550x900 | 550x900 | 550x900 | 550x900 | 650x900 | 650x900 | 650x900 | 650x900 |
| Max. Printing Area(mm) | 1540x3600 | 2080x3600 | 2080x4000 | 2080x4600 | 2080x5300 | 2480x3600 | 2480x4000 | 2480x4600 | 2480x5300 |
Lead edge feeder
A) Servo control free-pressure feeding system adopted to avoid the cardboard being pressed ,improve the pressure resistance of cardboard
B) All the baffles are adjust by electric control
C) Guide rail support the right-left baffle move precise and smoothly.
D) The feeding rollers are grinded and plated with rigid chrome, make blance rectification for running stable.
E) Feeding rollers gap adjusted by PLC and touch screen
F) First row of feeding rollers: Upper feeding roller diameter is 132 mm ,seamless steel covered with wear-resistant rubber treated by balance rectification. Down feeding roller diameter is 156 mm, seamless steel with knurling surface,treated by balance rectification.
G) Second row of feeding rollers:Upper feeding roller diameter is 86 mm with dia two 132mm feeding rings ,seamless steel pipe is plated with chrome and grinded surface,treated by balance rectification
Down feeding roller diameter is 156 mm, seamless steel pipe is plated with chrome and grinded surface,treated by balance rectification.
Feeding Unit
Edge feeder device
A.Front feed mechanism, feed accurate, fast.
B.The leading edge is the width of the front board as positioning reference, without affecting the width of error of cardboard cut in line printing, slotting, die-cutting of locating datum requirements. Electric tone block box.
C.Has a higher processing capacity of thin cardboard delivery. (E, B-watt cardboard can be smoothly fed).
D.Suction outlet air flow from the inverter control, air volume can be adjusted according to the size of cardboard, Alice degree bend, easy to adjust, fast and freely.
Machine clutch
Single button switch control electric machine separation and combination, along with automatic alarm device, the road between the continuous ringing alert to ensure the safety of personnel.
Feed roller
A.Send the paper roll is inserted using a single channel trench roller, wear rubber buffer selection, dynamic balance correction, to ensure smooth feeding and accurate.
B.Lower feed roller embossing roll steel, hard chrome plating, wear balancing correction.
C.Use upper and lower feed rollers gap Oldham type trimming device wrench adjustment dial display.
Automatically reset to zero means
Features of Electrical Control System
- More than 95% electrical components of this auto flexo printer slotter die cutter and stacker are world famous brands.
- The control center is equipped with Simens PLC and single color touch screen which come with high reliability, low failure rate, high efficiency and easy operation.
- The main motor utilizes frequency converter to adjust speed, which is stable and power saving. Touch screen makes operation more convenient.
- All kinds of parameters setting and display are completed by computer.
- Phase position and slotting height is controlled by frequency converter, ensuring high precision.
- During feeding, the ink roller will automatically down. When feeding stops, it will automatically go up. Since that, the waste of paperboard can be reduced.
- The auto flexo printer slotter die cutter and stacker can store and memorize numerous orders. If connected with computer, the memory size will considerably increase.
- It can also implement order and customer management as well as report printing.
- Remote maintenance and parameter modification can be realized.
-
![]()
Rotary Die-Cutter Unit Features:
A. Die Cylinder (Lower)
● Ground and chromed high quality steel
● Dynamic balanced for stable running.
● Fixing hole distance is 50mm lateral.
● Creasing height is 22.60mm.
● Wooden die thickness is 13mm.
B. Anvil Cylinder (Upper)
● Ground and chromed high quality steel
● Dynamic balanced for stable running.
● Anvil cover thickness is 10mm,width is 252mm.
● Side to side oscillation of anvil cylinder( 50mm).
● Motorized gap adjustment between anvil roll and die cylinder.
C. Self-locking System Adopted for Pulling Roll Gap.
D. Cam bearing applied for the Pull Roll working, wear reduced and run more stable.
