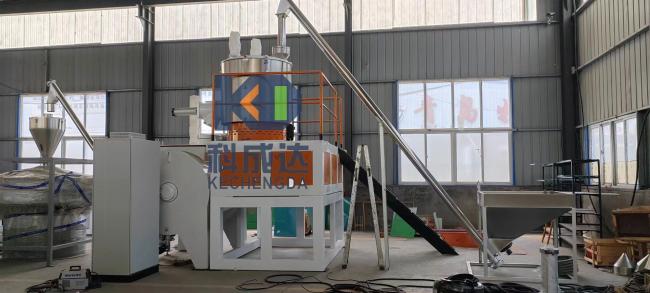

100-3000kg/h Vertical PVC Hot And Cold Mixing Machine Plastic Mixer For Sale
Applications:
1.Blending Master Batch with the virgin granules.
2.Mixing Pigments or Pigment Paste with granules or polymers powder.
3.Blending Pigment and Fillers additives.
Description:
The unit combines heat mixing and cool mixing together.The materials after heat mixing can be gotting into cool mixer for cooling automatically,exhausts remaining gass and avoids agglomerates.
It is an ideal equipment for plastics mixing.
Features:
1) All important parts(bowl, mixing tool, control cabinet) are manufactured in our factory, which ensure the quality of machine.
2) All material in contact with product is in SS304 or aluminum alloy and the product will nor be contaminated.
3) High cooling efficiency, short mixing time, easy and convenient to clean, and can reach high output.
| Model/Specs | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 | |
| Total Cubage (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 | |
| Effective Cubage (L) | 65/130 | 150/620 | 225/380 | 375/650 | 600/1050 | |
| Mixed Speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 | |
| Heating&Cooling Manner | Electric Heating, Self-friction/water-cooling | |||||
| Mixed Time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | |
| Motor Powder(KW) | 14/22/7.5 | 30/42/11 | 40/55/11/ | 47/67/15 |
60/90/22 |
|
