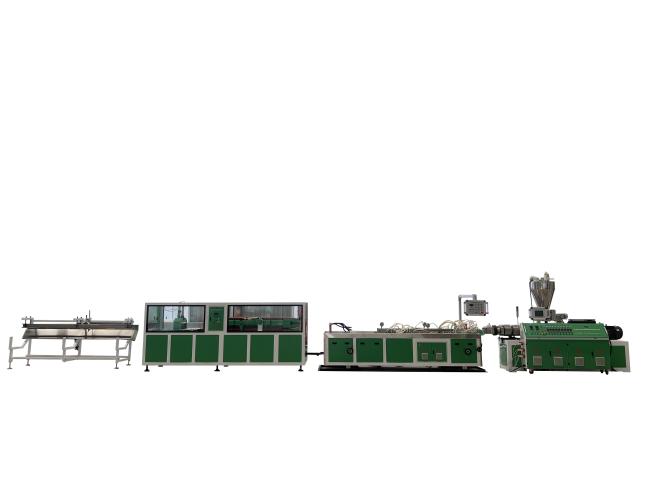

PLC Controlled Pvc Wpc upvc Profile Extrusion Line for Plastic Wood Window Profile Extruder

Price Negotiable

Price: USD 30000~80000

MOQ: 1

Delivery Time: 30 work days

Brand: Kechengda

Product Description

Products Description

>> For production of soft PVC profile, rigid PVC profile, soft-hard co-extrusion profile,foam profile extrusion, multi layer co-extrusion etc. >>Process Flow: Screw Loader →cone / parallel Twin Screw Extruder/Single screw extruder → Co-extrusion machine → Mould → Calibration Table → Haul-off & Cutter →Tripping Table → Final Product Inspecting & Packing

Product Paramenters

Max. profile width(mm)	Extruder model	Designed capacity(kg/h)	Extruder motor power(kw)
180	SJSZ 51/105 or 55/110	80-120/120-150	18.5/22
240	SJSZ65/132	175-250	37
300	SJSZ65/132	175-250	37
400	SJSZ 65/132 or 80/156	175-250/250-350	37/55
600	SJSZ65/132 or 80/156	175-250/250-350	37/55
800	SJSZ80/156	280-350	55

Technical Parameter of Main extruder
Model	Power (kw)	Screw Diameter (mm)	Screw Qty.	Screw rotation speed(rpm)	Designed Output (kg/h)	Center Height (mm)	Dimension(LWH) (mm)
SJSZ-45/90	15	Φ45/90	2	34.7	70	1050	3360x1290x2127
SJSZ-51/105	18.5	Φ51/105	2	34.7	100	1050	3360x1290x2127
SJSZ-55/110	22	Φ55/110	2	34.7	150	1050	3620x1050x2157
SJSZ-65/132	37	Φ65/132	2	34.7	300	1050	3715x1520x2450
SJSZ-80/156	55	Φ80/156	2	34.7	400	1050	4750x1550x2460
SJSZ-92/188	110	Φ92/188	2	34.7	750	1250	6725x1550x2814
