Plastic Granulator Air Cooled Hot Die Head Pearl Cotton Granulator PVC PET
Price:
Negotiable
MOQ:
1 set
Delivery Time:
50 workdays
Brand:
Kechengda
Product Description
PRODUCT DESCRIPTION
SJZ80/132 PVC Hot Cutting Pelletizing Granulator Plastic granulator Air cooled hot die head Pearl cotton granulator PVC PET
Product Description:

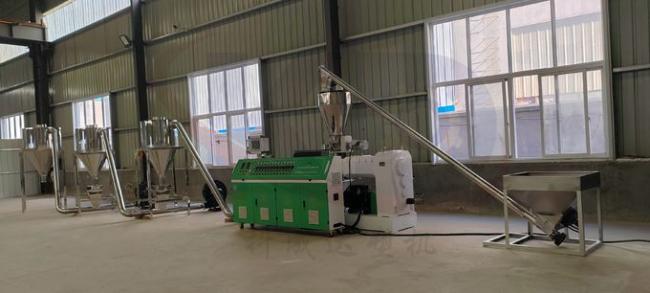

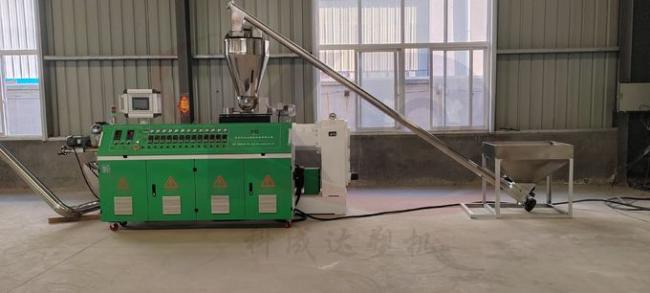

This hard PVC hot-cutting pelletizing line consists of SJSZ series conical twin-screw extruder and corresponding pelletizing auxiliary machines.
Process flow:

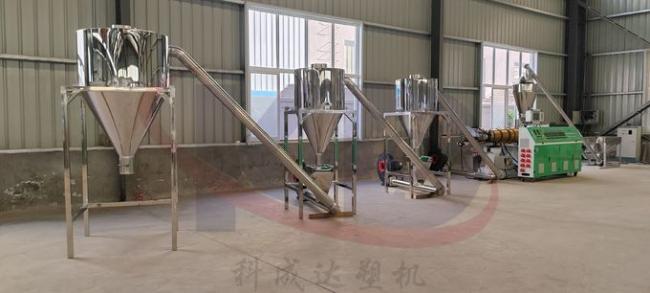

Mixer→Spring loader→Conical twin-screw extruder→Mould & Cutter→Air-conveying system→Silo
Features:
-Saving power: the electrical part adopts advanced frequency conversion technology;
-High effiency: the fast net-changing device may help remove impurities from ganules quickly and effiently;
-Broad application: the conical twin-screw extruder is suitable for various hard PVC & CPVC recipes;
-Zero pollution: all parts of the granules contact are made of stainless steel.
Main technical parameters:
| Extruder model | Screw diameter | Pellet size | Main motor power | Output |
| SJSZ55 | 55/110 mm | Φ3-Φ4 mm | 22 kw | 100-120 kg/h |
| SJSZ65 | 65/132 mm | Φ3-Φ4 mm | 37 kw | 220-260 kg/h |
| SJSZ80 | 80/156 mm | Φ3-Φ4 mm | 55 kw | 320-450 kg/h |
| SJSZ92 | 92/188 mm | Φ3-Φ4 mm | 110 kw | 650-800 kg/h |
After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
