Wire mesh Demister Pad

Wire Mesh Demister Mist Eliminators Standard Specification

Demister Pad collect liquid particles accompanying airborne droplets in the vapor phase after boiling, vacuum evaporation or bubbling process. Droplets grow in size their weights become heavy so they are fall free. It is making clean products at the top.


2. Demister mesh density and its applications

1.Mesh density(stainless steel) 50 kg/m3 Application: Heavy fouling, e.g. evaporators

2.Mesh density(stainless steel) 80 kg/m3 Application: Moderate fouling, e.g. vessel boilers

3.Mesh density(stainless steel) 110 kg/m3 Application: Light fouling

4.Mesh density(stainless steel) 145 kg/m3 Application: Heavy duty, e.g. oil and gas separators

5.Mesh density(stainless steel) 170 kg/m3 Application: General purpose, not totally clean

6.Mesh density(stainless steel) 195 kg/m3 Application: Optimum efficiency & pressure drop

7.Mesh density(stainless steel) 240 kg/m3 Application: High density with high separation efficiency

8.Mesh density(stainless steel) 112 kg/m3 Application: General purpose, clean service

9.Mesh density(stainless steel) 145 kg/m3 Application: Find droplet removal in clean service

3. Demister pad application

1. SS304 Water solutions, Nitric acid reduced crude petroleum fraction and so on

2. SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals

3. Synthetic fiber For corrosive service at moderate temperature

4. PP(Polypropylene) For corrosive service at temperature up to 70℃

5. PTFE For corrosive service at temperature of (-190℃, 250℃)

6. Monel Caustic soda, dilute acid

7. Nickel Caustic Soda, food products

8. Copper Freon, alcohol

9. Aluminium Nitric Acid

4.What can Yuanqiao factory do for you in the wire mesh demister?

1. Yuanqiao demister is tailor made to suit for specific vessel dimensions and configuration.
2. Yuanqiao provides wide variety of material to suit for even the most corrosive process environments.

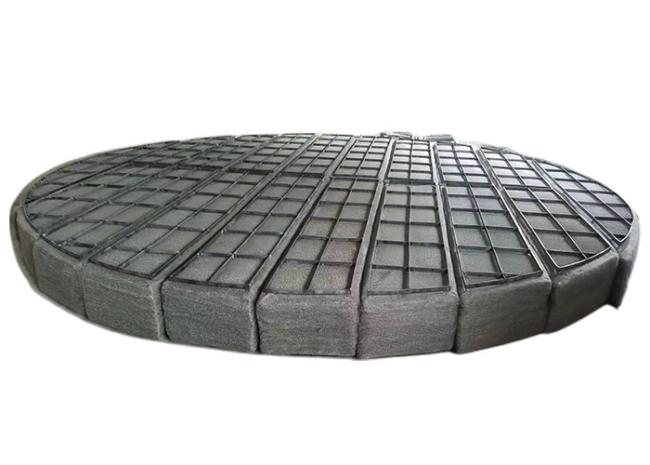

3. Yuanqiao factory can supplies either mesh pad only, or complete set demister with top and bottom supporting grids for direct installation in vessels.
4. Sectional construction for easy handling and access through man ways.
5. Complete accessory pack including support ring and beam can be provided when you required

6.15 year's exporting experience can service you carefully
