Chemical Industry 25mm Stainless Steel Raschig Rings Distillation

Price Negotiable

Price: Negociation

MOQ: 1pc

Delivery Time: 5-10 days

Brand: Yuanqiao

Product Description

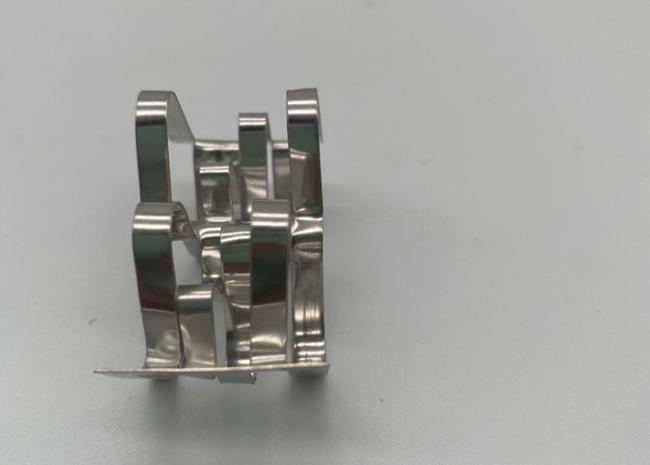

25mm Chemical Industry Metal Pall Ring Air Pollution Control Scrubbers Removal

Description

Product Name:	Air Pollution Control Scrubbers Removal Of Structured Packing	Usage:	Absorption Desorption Pressure Reducing
Material:	All	Applications:	Chemical Industry
Size:	9mm 25mm 38mm	OEM:	Yes
Model Number:	HL20211012-04	Equal Inch Type:	1in, 2in, 3in, Other
High Light:	Chemical Industry Metal Pall Ring , 25mm Metal Pall Ring , Air Pollution Control Metal Pall Ring

echnical Data of metal pall rings:

16mm Pall Rings
Free Space (%)	93
Specific Surface Area (m2/m3) 316
No. Per Unit Volume (m3 )	210,000
Packing Factor (m-1)	315
Specific Weight (kg/m3) 400 – 535 Stainless Steel
Dimensions (mm)	16 x 16
Thickness (mm)	0.3 – 0.4
Normal Material stainless steel 304, 316L

25mm Pall Rings
Free Space (%)	94
Specific Surface Area (m2/m3) 209
No. Per Unit Volume (m3 )	49,500
Packing Factor (m-1)	176
Specific Weight (kg/m3) 322 – 644 Stainless Steel
Dimensions (mm)	25 x 25
Thickness (mm)	0.4 – 0.8

38mm Pall Rings
Free Space (%)	95
Specific Surface Area (m2/m3) 122
No. Per Unit Volume (m3 )	13,450
Packing Factor (m-1)	107
Specific Weight (kg/m3) 200 – 400 Stainless Steel
Dimensions (mm)	38 x 38
Thickness (mm)	0.4 – 0.8
Normal Material stainless steel 304, 316L

50mm Pall Rings
Free Space (%)	96
Specific Surface Area (m2/m3) 100
No. Per Unit Volume (m3 )	6,000
Packing Factor (m-1)	107
Specific Weight (kg/m3) 196 – 354 Stainless Steel
Dimensions (mm)	50 x 50
Thickness (mm)	0.5 – 0.9
Normal Material stainless steel 304, 316L
