Metal Corrugated Plate Distillation Column Packing 304 Stainless Steel

Price Negotiable

Price: Negociation

MOQ: 1pc

Delivery Time: 5-10 days

Brand: Yuanqiao

Product Description

304 Stainless Steel Metal Corrugated Plate Structured Packing For Distillation Column

Metal Structured Packing brief introduction

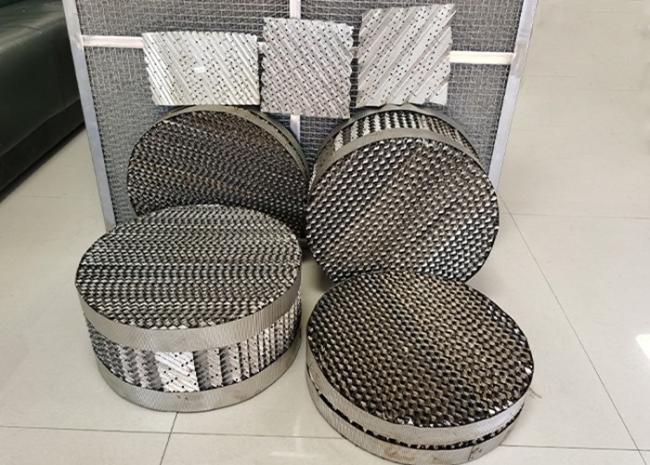

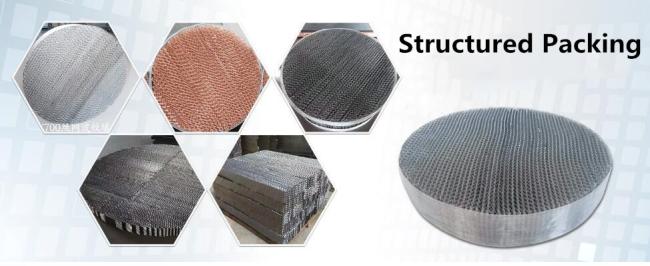

Metal Perforated Plate corrugated packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.Metal structured packing is available in a wide range of materials , include stainless steels,304,316,316 L,Carbon steel,Aluminium,copper bronze etc. Further materials available on request.

Metal Structured Packing Technical Parameter

Model		Metal Wire Gauze Structured Packing
Material		SS 304, 304L, 410, 316, 316L, etc.
Model	Specific surface	Bulk density	Void ratio	Obl.	ΔP	Theo. plate	HETP/mm	F factor m/s (kg/m3)0.5
Model	(m2/m3)	(kg/m3)	(%)	angle	(Pa/plate)	(piece/m)	HETP/mm	F factor m/s (kg/m3)0.5
250AX	250	125	95	30	100-400	2.5~3	100	2.5-3.5
500BX	500	250	90	30	400	4~5	200	2.0-2.4
700CY	700	350	85	45	600-700	8~10	333-400	1.5-2.0

Model		Perforated Plate Corrugated Packing
Model		125Y	250Y	350Y	500Y	125X	250X	350X	500X
Specific surface	(m2/m3)	125	250	350	500	125	250	350	500
Bulk density	(kg/m3)	100	200	280	360	100	200	280	360
Void ratio	(%)	98	97	94	92	98	97	94	92
Obl.	angle	45°	45°	45°	45°	30°	30°	30°	30°
P	(Pa/plate)	200	300	350	400	140	180	230	280
Theo. plate	(piece/m)	1~1.2	2~2.5	3.5~4	4~4.5	0.8~0.9	1.6~2	2.3~2.8	2.8~3.2
Typical Application		Absorption, scrubbing and stripping services

Metal Structured Packing Application:

Refinery columns (atmospheric and under vacuum).
Petrochemical columns.
Natural gas glycol dehydration.
Wastewater treatment stripping columns.
Atmospheric pressure and high pressure columns.

Metal Structured Packing Advantage

Its high mass transfer surface area is suitable for close boiling components distillation due to shorter columns.
Its structured arrangement ensures no channeling of liquid and requires minimum liquid redistribution.
Due to its very low pressure drop, it is recommended for vacuum distillation systems.
It has higher vapour load capacity as compared to random packing and trays.
It provides low liquid hold-up.

Welcome your inquiryStructured Packing specifications.
