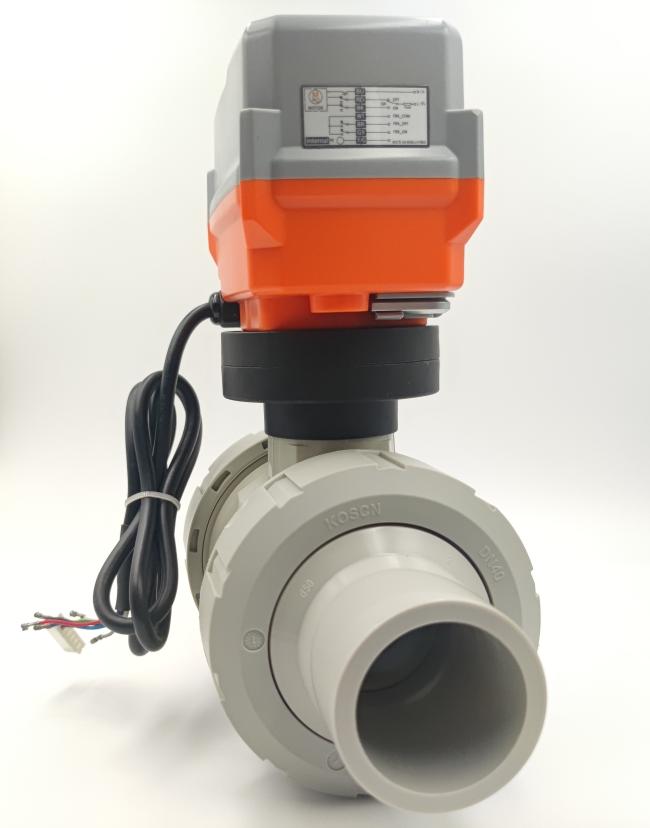

Electric Actuated Ball Valve in Plastic

BV201 electric ball valve is a multifunctional plastic valve to offer various functions including intelligent switch control, flow regulating, signal feedback, auto reset, failure alarm. Full plastic housing design makes this ball valve a perfect choice for application in harsh working environments.

Specifications

• 1. Size
  1. DN 15/20/25/32/40/50
• 1. Pressure Level
  1. PN 10
• 1. Body Material
  1. PVC-U, PVC-C, PP-H, PVDF
• 1. Seal
  1. EPDM, FPM
• 1. Connection
  1. true union (socket or spigot), flange
• 1. Standard
  1. ISO 5211 standard

Features

Easy installation and maintenance

• The optimized locking mechanism of ball valve allows installation in two directions.
• ISO 5211 standard design with easy maintenance
• Valve body and actuator are installed by standard installation parts
• All plastic or extruded aluminum actuator in compact design, suitable for limited space installation
• Mounting base provided

Outstanding safety

• Trapezoidal threaded union to prevent pop-off
• Double seal valve base with low torque and without internal leakage
• Broadest range of materials optional including high temperature and corrosion resistant materials
• Actuator designed with over torque protection to ensure safety

Excellent flexibility in configuration

• Valve body: PVC-U, PVC-C, PP-H, PVDF
• Seal: EPDM, FPM
• Connection: true union (socket or spigot), flange
• Connection standard: metric, US, JP
• Can be designed with intelligent electric switch, regulating module, bus communication
• Signal feedback, power rest, failure alarm

Electrical configuration

• Voltage: AC/DC12-24V, AC/DC95-265V
• Feedback: passive contact, active contact, potentiometer feedback
• Optional: relay contact failure alarm
• With super capacitor, auto reset after power-off is available.
• Output regulation: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V, 2-10V
• Control regulation: 4-20mA
• Bus control feedback: RS485(modbus), CANBus 2.0B, Mbus
• Protection rating: IP67

Application

• New energy
• Integrated circuit
• Electroplate
• Power industry
• Metallurgy
• Chemical engineering
• Water treatment
• Papermaking
• Bio pharmacy
• Food & beverage
