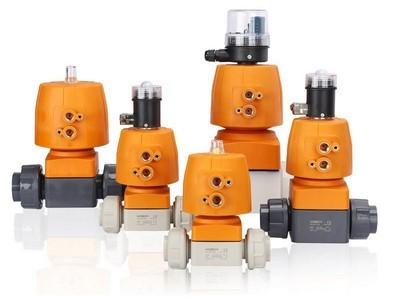

Pneumatic Diaphragm Valve, MV303

Specifications

• 1. Size
  1. DN 15/20/25/32/40/50/65
• 1. Pressure Level
  1. PN 10
• 1. Body Material
  1. PVC-U, PVC-C, PP-H, PVDF, PP-Natural
• 1. Diaphragm
  1. EPDM, FPM, EPDM-PTFE
• 1. Connection
  1. flange, spigot, true union (socket or spigot)
• 1. Standard
  1. DIN, JIS, ANSI

Features

Easy installation and maintenance

• Independent actuator for easy replacement and dismounting
• With pilot operated solenoid valve mounting base for quick installation
• Position indicator configured with protective shield adapted to outdoor and harsh working environments
• Absence of metal parts exposed to the external environment to prevent any risk of corrosion
• Excellent lubrication performance and maintenance free
• Air inlet direction is optional at 90°intervals.
• Perfect for installation in limited space
• Same installation length as market standard valves

Outstanding safety

• Insert-molded threaded connection suitable for different installation strengths.
• Valve flow passage and pneumatic actuator overpressure design for improved safety
• Smoothened valve flow passage design for better protection from water hammer

Excellent flexibility in configuration

• Connection: flange, spigot, true union (socket or spigot)
• Connection standard: metric, US, JP
• Diaphragm: EPDM, FPM, EPDM-PTFE
• Valve body: PVC-U, PVC-C, PP-H, PVDF, PP-Natural
• PP-H, PVDF pneumatic diaphragm valves offer oil-free options

Best flow control performance

• Smoothened flow path profile leads to lower loss of pressure and double flow rate
• Linear flow characteristics for more accurate fluid control
• Suitable for media containing a small number of particles and solids

Application

• Water treatment
• Power industry
• Steel
• Metallurgy
• Petrochemical industry
• Chemical engineering
• Marine engineering
• PV
• Nuclear
• Wind energy
• Chlor-Alkali
