25A 24V Sealed Electronic Lead Acid Battery Charger Smart Silver Color
24V 25A Smart Electronic Sealed Lead Acid Battery Charger
UY900-2425 is our 24V lead-acid/lithium/lifepo4 battery charger! It possesses several key features that set it apart, including an aluminum alloy casing, intelligent charging curve, and optional communication via CAN, RS485, or Bluetooth.
The UY900-2425 charger is designed with an aluminum alloy casing, ensuring both durability and efficient heat dissipation during the charging process. This prevents overheating and promotes optimal performance.
One notable feature is its intelligent charging curve. Equipped with advanced technology, the charger automatically adjusts the charging parameters based on the battery's condition and requirements. This ensures the battery is charged accurately, preventing overcharging or undercharging.

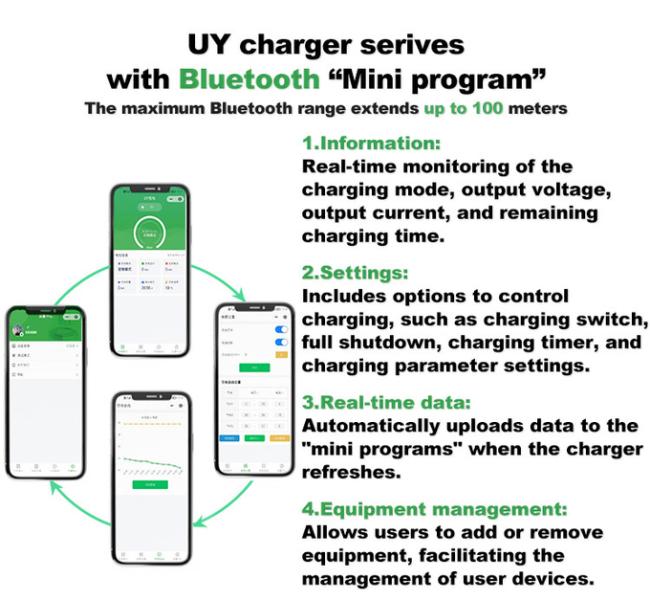

In addition to its exceptional charging capabilities, the UY900-2425 charger offers optional communication options. It can be configured with CAN, RS485, or Bluetooth connectivity, providing seamless integration with different communication systems. This allows for real-time monitoring and control of the charging process.
With the UY900-2425 charger, you can efficiently charge your 24V lead-acid battery in a short period, ensuring it is ready for immediate use. Whether it's for powering your equipment, vehicles, or other applications, this charger provides a reliable and efficient charging solution. Choose the UY900-2425 charger and enjoy the convenience of rapid battery charging.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current | Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY900 | 12V 40A | 12.6V/16.8V | 14.6V | 14.7V | 40A | 8%CC | 25%CC |
| 24V 25A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 25A | |||
| 36V 20A | 42V/46.2V | 43.8V | 44.1V | 20A | |||
| 48V 15A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 15A | |||
| 60V 12A | 63V/67.2V/71.4V | 73V | 73.5V | 12A | |||
| 72V 10A | 79.8V/84V | 87.6V | 88.2V | 10A | |||
| 84V 8A | 88.2V | 102.2V | 107.8V | 8A | |||
Charging curve
Features
The charger features a classic half-bridge topology, providing exceptional performance and reliability. It offers several notable advantages:
1. Self-Balancing Adjustment Ability: The charger is equipped with self-balancing adjustment capability, effectively mitigating core saturation caused by core accumulation bias magnetism. This feature ensures optimal charging efficiency and extends the lifespan of the charger.
2. Charging from 0 Voltage: The charger can initiate charging from 0 voltage, allowing for convenient and efficient charging of deeply discharged batteries. This capability is particularly beneficial in emergency situations or when dealing with heavily depleted batteries.
3. Enhanced Protection and Customization: The charger incorporates a Microcontroller Unit (MCU) that enhances its protection functions. This advanced technology provides comprehensive safeguards against overcharging, short circuits, and other potential risks. Furthermore, the charger supports customization of charging curves, allowing users to tailor the charging process to their specific requirements.
4. Optional Communication Functions: The UY900 charger offers optional configurations for RS485, CAN, or Bluetooth communication. This enables seamless integration with various communication systems, allowing for real-time monitoring and control of the charging process.
