Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

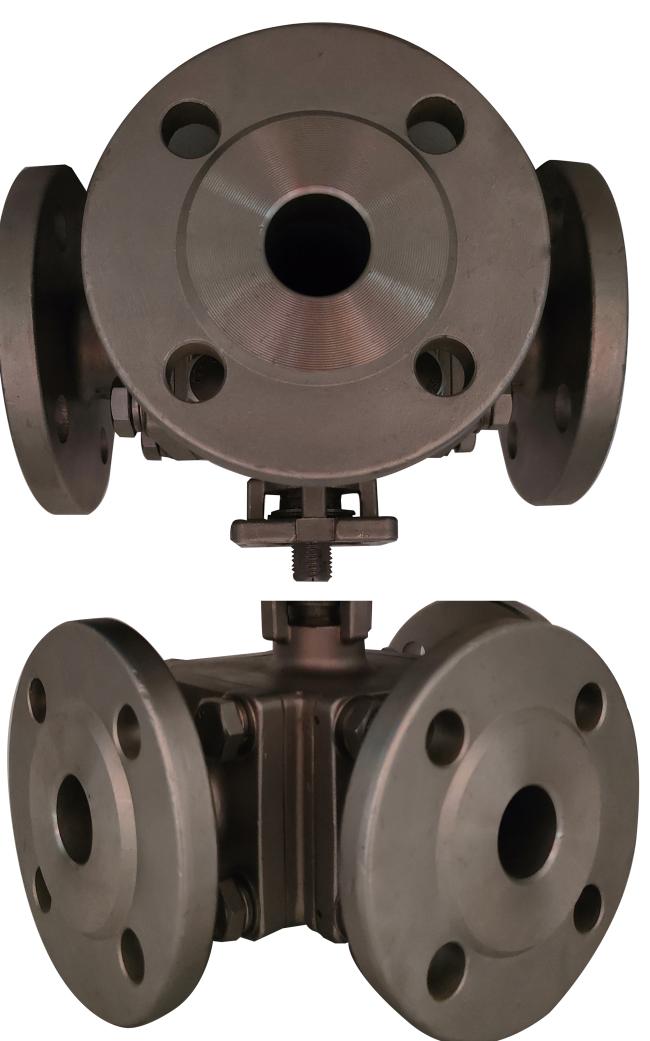

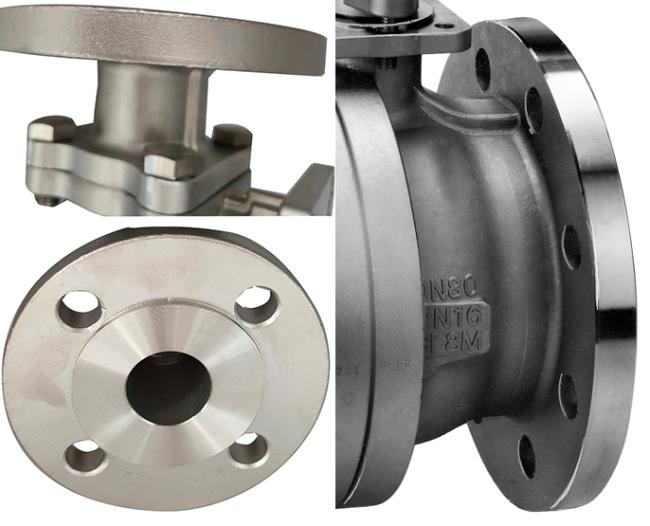

FABIA Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control

1.Description:

Three-piece flange ball valve,for water, steam, oil, nitric acid, acetic acid and other media equipment.

The valve body casting adopts the advanced technology introduced in Taiwan, with reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing.

2. Specification:

FABIA Valve Parameter List
Valve type:	Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q..........

3. Features:

The valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve. chamber is abnormally pressurized.
Drive mode: manual, electric, pneumatic, can set 90° switch positioning mechanism, lock according to need to prevent misoperation
Suitable for PN1.0 ~ 4.0MPa.
Working temperature -29 ~ 180℃(seal ring for enhanced polytetrafluoroethylene) or -29 ~ 300℃(seal ring for para polystyrene) of various pipelines.
Used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid and other media.
