2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 work days
Brand:
FABIA
Product Description

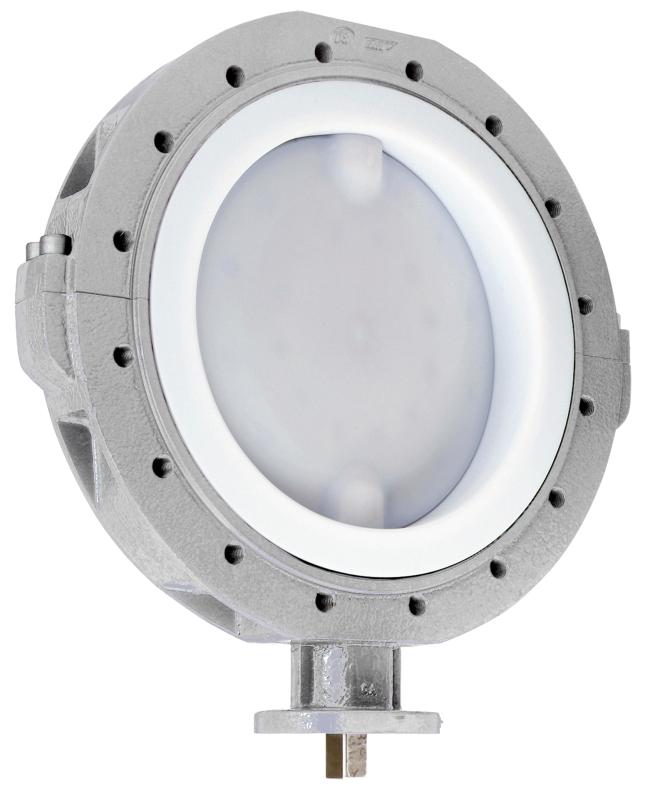

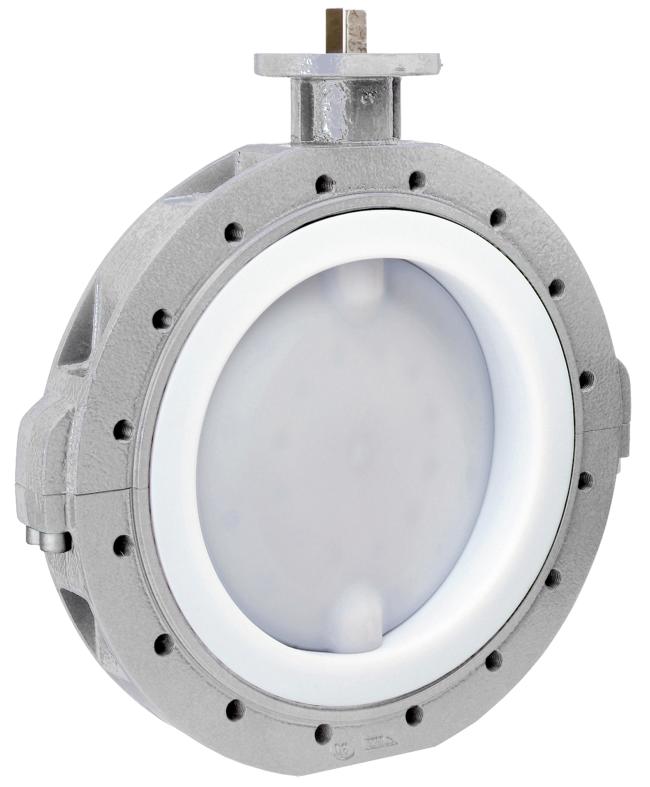

FABIA Lightweight Pneumatic Flanged Butterfly Valve With Low Cost And Easy Operation
1. Description:
Used in oil, gas, chemical, water treatment and other industries equipment.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Lightweight Pneumatic Flanged Butterfly Valve With Low Cost And Easy Operation | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt Clamp/Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-D.......... | |
3. Features:
- Main advantages of the pneumatic flange butterfly valve are simple structure, small size and light weight, low cost.
- Characteristics of the pneumatic disc valve are especially significant, which is installed in the high-altitude tunnel.
- Easy to operate and adjust the flow medium through the two-position five-way solenoid valve.
- Small fluid resistance, large diameter pneumatic disc valve fully open when the effective flow area is large, quick and easy to open and close.
- Butterfly rotation 90 Angle can complete the opening and closing.
- Because the two sides of the rotating shaft plate hand medium force is close to equal.
- Torque generated in the opposite direction, so the opening and closing torque is small, low pressure can achieve a good seal, disc valve sealing materials .
