Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

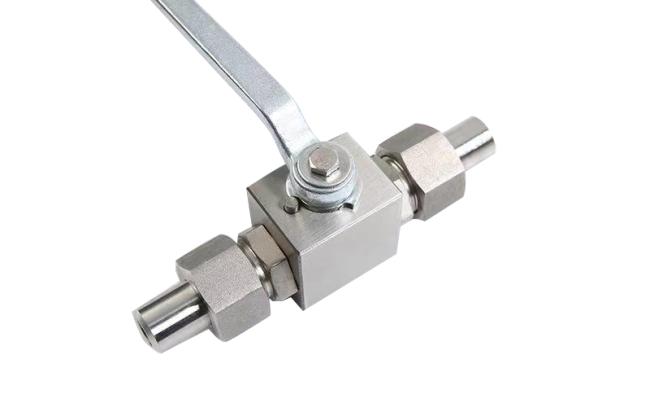

FABIA Manual High Pressure Two Way Butt Welding Ball Valve

1. Description:

Been widely used in petroleum, chemical, power generation, paper, atomic energy, aviation, rocket and other departments.

2. Specification:

FABIA Valve Parameter List
Valve type:	Manual High Pressure Two Way Butt Welding Ball Valve
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q..........

3. Features:

Small fluid resistance, full diameter ball valve basically no flow resistance.
Simple structure, small size, light weight.
Tight and reliable. It has two sealing surfaces, and the sealing surface material of the ball valve is widely used in various plastics, which has good sealing property and can achieve complete sealing. It has also been widely used in vacuum systems.
Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90°, easy to remote control.
Easy maintenance, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are more convenient.
When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the valve.
