Manual High Pressure Three Way Flange Ball Valve Stainless Steel
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 work days
Brand:
FABIA
Product Description

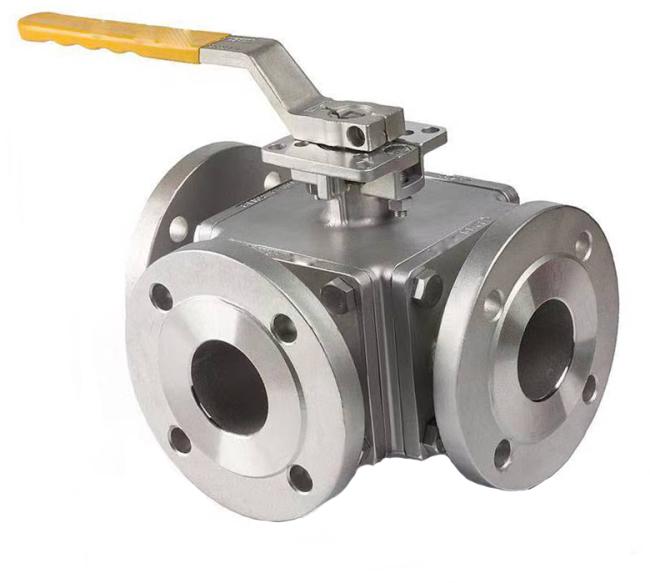

FBIA Manual High Pressure Three-Way Flange Ball Valve
1. Description:
Action of water supply, petrochemical, metallurgy, food, steel and other pipeline system intermediary flow direction switch, as well as the medium of the shunt or mixing fluid role.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Manual High Pressure Three-Way Flange Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Easy maintenance: After decompressing the system, the entire valve body can be inspected and maintained without disassembling.
- Good sealing performance: the elastic deformation of the four-side seat material PTFE can achieve a leak-free seal.
- Valve has a variety of uses: any port can be used as an inlet without leakage.
- Compact structure, fast opening and closing, smooth flow path, small fluid resistance.
