China High Performance Manual Two Piece Stainless Steel Industrial Ball Valve for sale

High Performance Manual Two Piece Stainless Steel Industrial Ball Valve

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

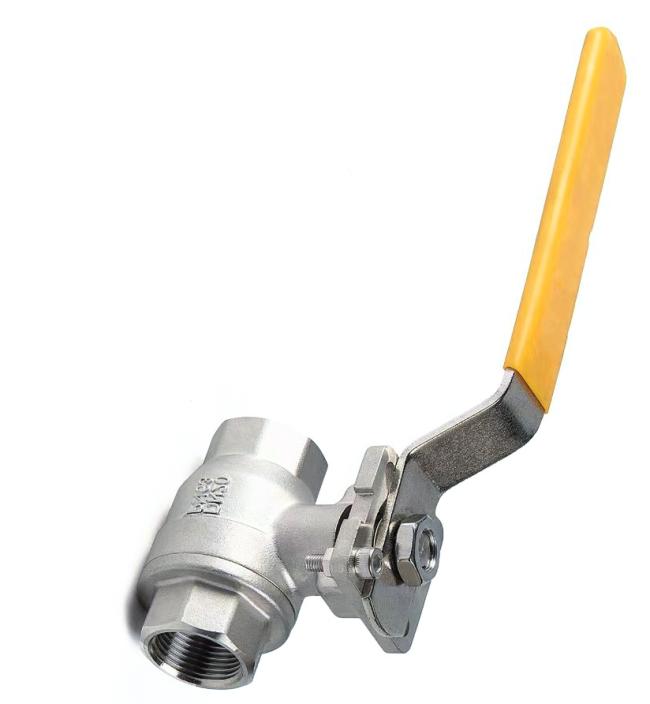

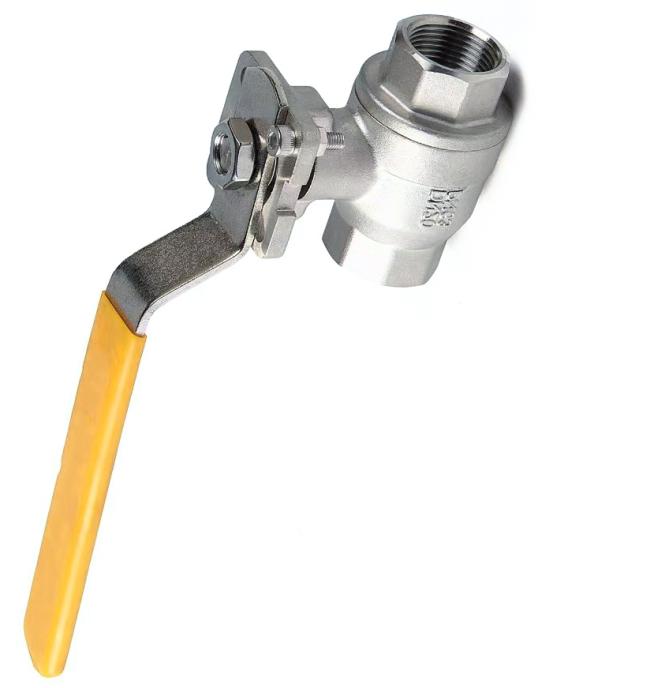

High Performance Manual Two Piece Stainless Steel Industrial Ball Valve

1. Description:

High pressure manual ball valve is widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, food and other industrial fields, used to control all kinds of large pressure, viscous medium pipelines, such as conveying oil, gasoline, natural gas, water and other liquid or gas medium pipeline system. It can also be applied to seawater, fresh water, sewage, drinking water and other water treatment systems.

2. Specification:

FABIA Valve Parameter List
Valve type:	High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q..........

3. Features:

High pressure manual ball valve can withstand up to 6000PSI pressure, strong load capacity.
Advanced bidirectional sealing structure design, the ball and the seat reach zero leakage.
Design of the ball valve is flexible, and it has the characteristics of light sensitivity and simple operation when switching.
Good liquidity: there is no flange inside the ball valve, good liquidity and small flow resistance.
High-pressure manual ball valve has the pressure relief function, which can release the uncompacted gas or liquid to reduce the impact during operation.
