High Temp High Pressure Ball Valve 3/8 3 4" Tee Butt Welding Ball Valve

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

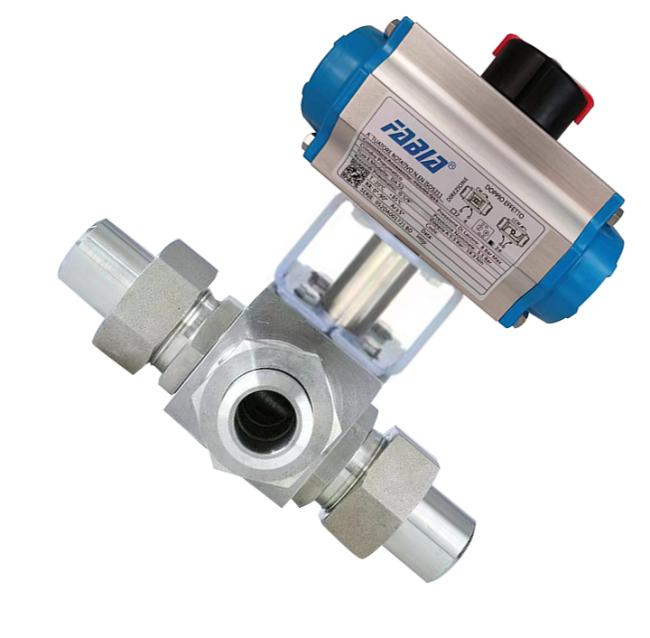

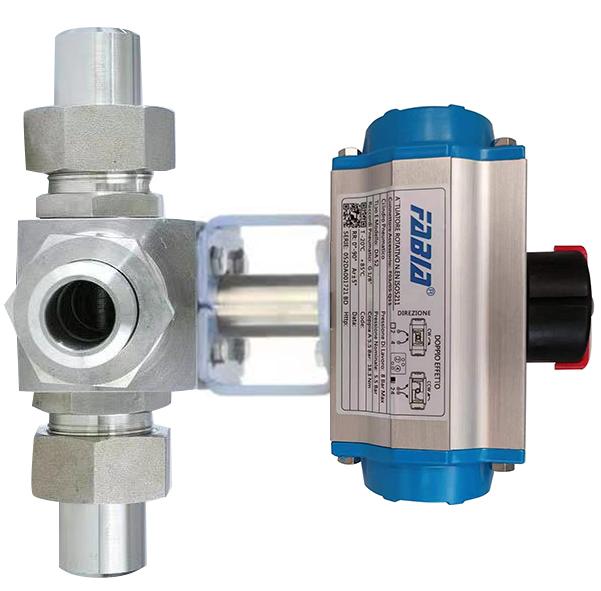

FABIA Pneumatic High Pressure Tee Butt Welding Ball Valve

1. Description:

Pneumatic high-pressure tee butt welding ball valve is widely used in chemical, petroleum, natural gas, power, food and pharmaceutical industries, is a variety of fluid pipeline control key equipment.

Especially in some high temperature, high pressure and corrosive occasions, the advantages of pneumatic butt welding ball valves are more obvious.

2. Specification:

FABIA Valve Parameter List
Valve type:	Pneumatic High Pressure Tee Butt Welding Ball Valve
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q..........

3. Features:

Good sealing performance: The sealing performance of pneumatic butt welding ball valve is superior, because the ball is connected by welding, the sealing ring is not easy to fall off, and the sealing performance is more stable.
Easy to operate: pneumatic butt welding ball valve adopts pneumatic drive, easy to operate, and can realize remote control, which greatly improves work efficiency.
Good corrosion resistance: the main material of the pneumatic butt welding ball valve is stainless steel or alloy steel, which has strong corrosion resistance and can be widely used in the pipeline control of various corrosive media.
High temperature resistance: pneumatic butt welding ball valve adopts high temperature sealing ring, which can maintain stable sealing performance in high temperature environment.
Accurate flow control: The ball of the pneumatic butt welding ball valve uses a rotary opening and closing, and the flow control is accurate, and does not produce turbulence, and has little impact on the fluid.
