China 1/4 Inch 1 Inch Pneumatic High Pressure Two Piece Ball Valve With Internal Teeth for sale

1/4 Inch 1 Inch Pneumatic High Pressure Two Piece Ball Valve With Internal Teeth

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

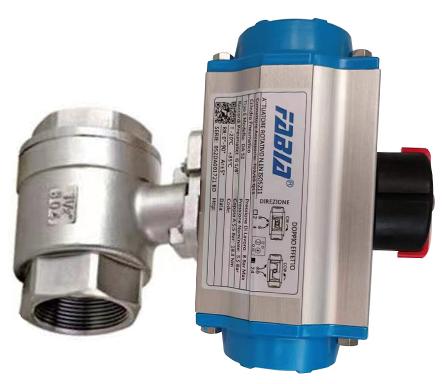

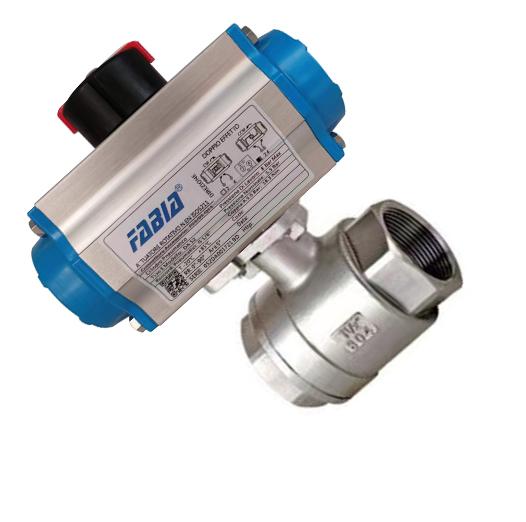

FABIA Pneumatic High Pressure Two-Piece Ball Valve With Internal Teeth

1. Description:

Stainless steel high pressure valve can be widely used in the market, because it has a wide range of original applications.

Can effectively cut off or dial the pipeline medium, you can also know the role played in all kinds of pipelines, the current medium is mainly compression, water and steam.

2. Specification:

FABIA Valve Parameter List
Valve type:	Pneumatic High Pressure Two-Piece Ball Valve With Internal Teeth
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q..........

3. Features:

Fluid resistance is small, and its resistance coefficient is equal to the pipe segment of the same width.
Simple structure, small size, light weight.
Close and reliable, the sealing surface material of the eye valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
Internal screw high pressure valve is easy to operate, fast to open and close, from full run to full close as long as the rotation of 90°, in order to remote control.
Easy to repair, simple valve structure, sealing ring - generally active, disassembly and replacement are more convenient.
Internal screw high pressure valve has a wide range of application, the diameter of the pipe is small to a little millimeter, the automatic valve model is large to a few meters, and the high vacuum or high pressure can be applied.
