Electric PVC Soft Seal Industrial Ball Valve For Oil Gas Water Chemical
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 work days
Brand:
FABIA
Product Description

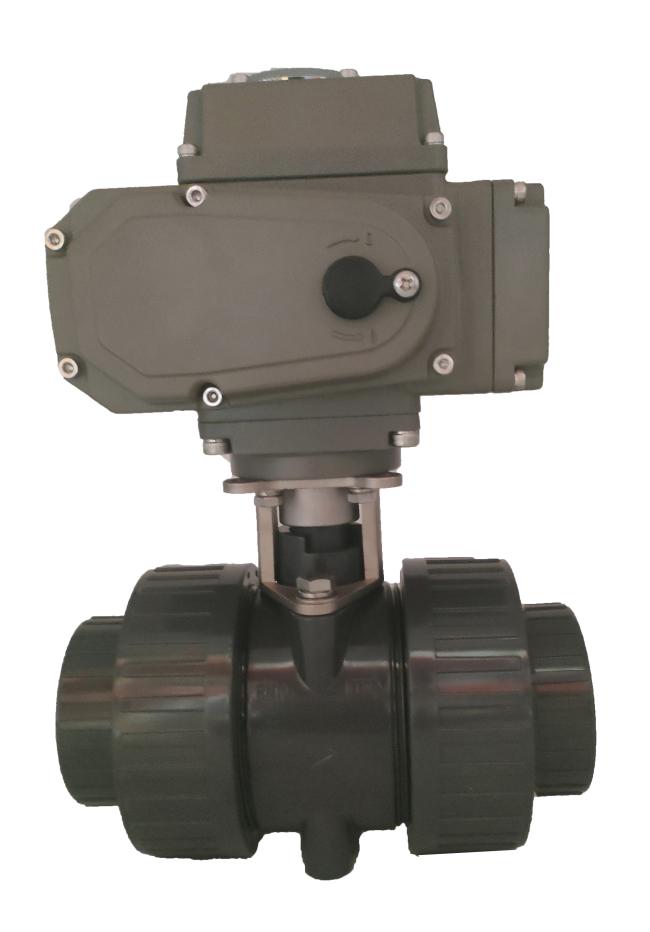

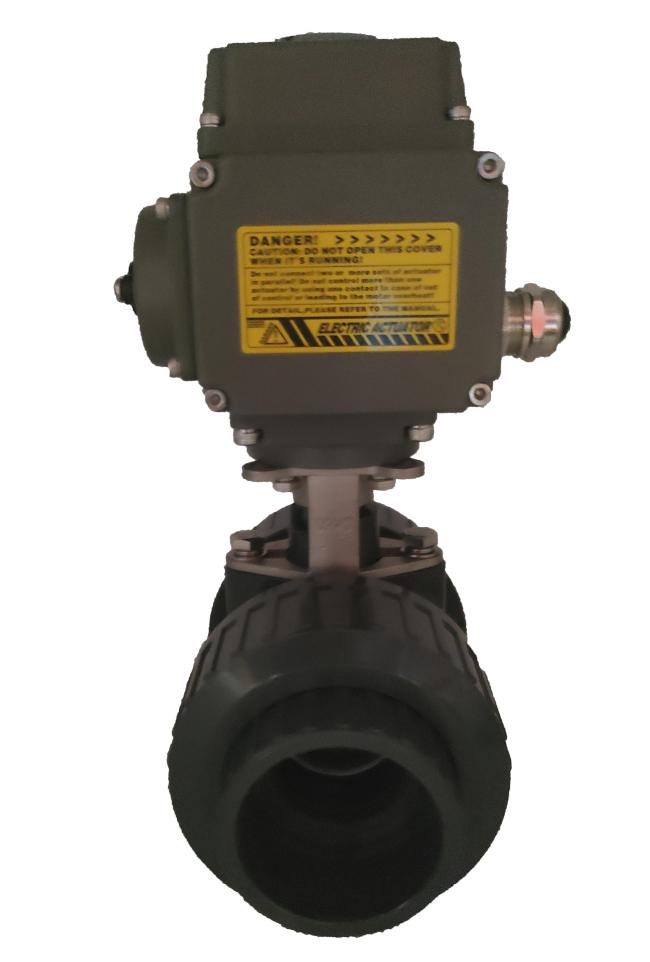

High Performance Electric PVC Soft Seal Industrial Ball Valve
1. Description:
Opening and closing part of the ball valve is a ball, and the ball rotates around the center line of the valve body to open and close a valve.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Soft Seal Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Electric soft seal ball valve easy to achieve better sealing effect, and corrosion resistance, acid and alkali resistance.
- Disadvantage is that it is not resistant to high temperature, the sealing surface is easy to wear, and the mechanical property is relatively poor.
- High sealing requirements, or with particles containing room temperature and atmospheric pressure occasions.
