Manual Stainless Steel High Temperature And High Pressure Ball Valve

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

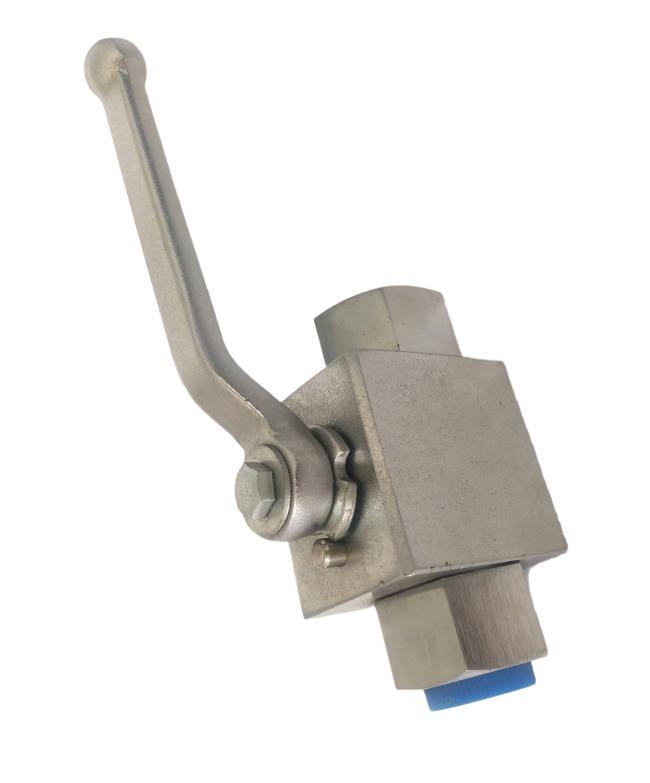

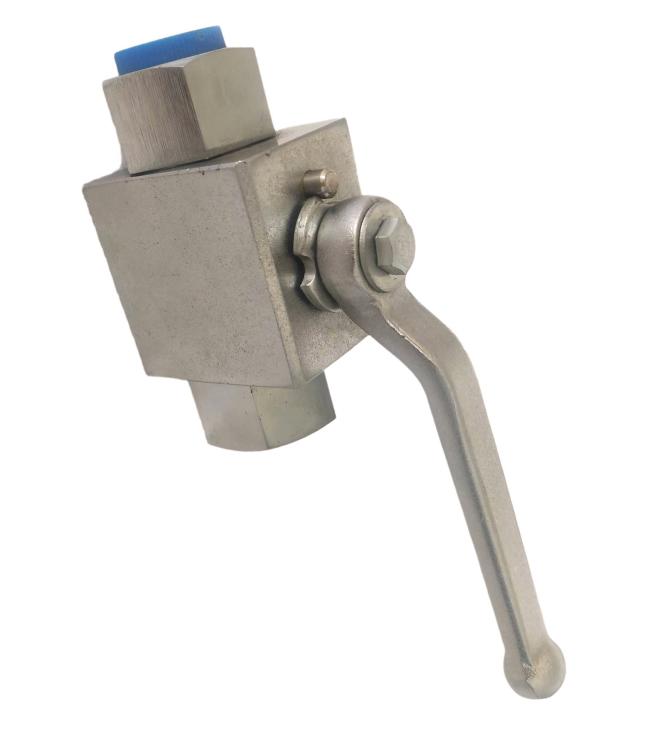

FABIA Manual Stainless Steel High Temperature And High Pressure Ball Valve

1. Description:

High temperature and high pressure valve, used in power station, nuclear power, petrochemical and other high temperature environment.

High temperature and high pressure ball valve, used in petroleum refining plants, chemical plants and other high temperature environment.

2. Specification:

FABIA Valve Parameter List
Valve type:	Manual Stainless Steel High Temperature And High Pressure Ball Valve
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q...

3. Features:

Low temperature valve, used in liquid oxygen transport pipeline system and equipment.
Valves for special occasions, such as valves for steam engine inlet and exhaust pipelines in thermal power plants; Hydrogen cooler main heat exchanger in petrochemical plant.
High parameter control ball valve is mainly used in metallurgical industry mold outlet temperature control; Blast furnace gas recovery systems in iron and steel enterprises and other places that require strict temperature control.
High parameter adjustment control ball valve is mainly used in the chemical industry reaction kettle as a medium temperature controller.
High parameter adjustment control ball valve is mainly used in the power industry hydraulic ash removal system to do electric actuator use.
High parameter adjustment control ball valve is mainly used in the water treatment industry.
High temperature anti-corrosion valve.
