Ventilation Butterfly Valve Rto Special Valve RTO Valve

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 15-30 work days

Brand: FABIA

Product Description

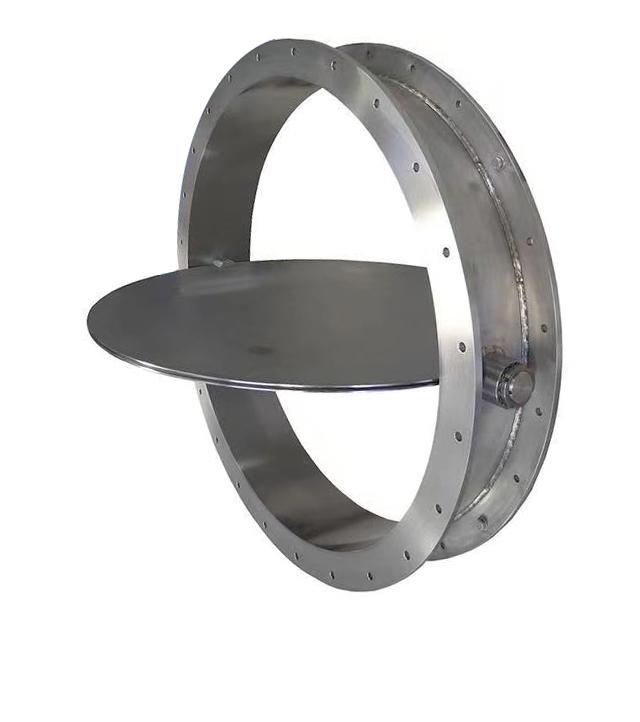

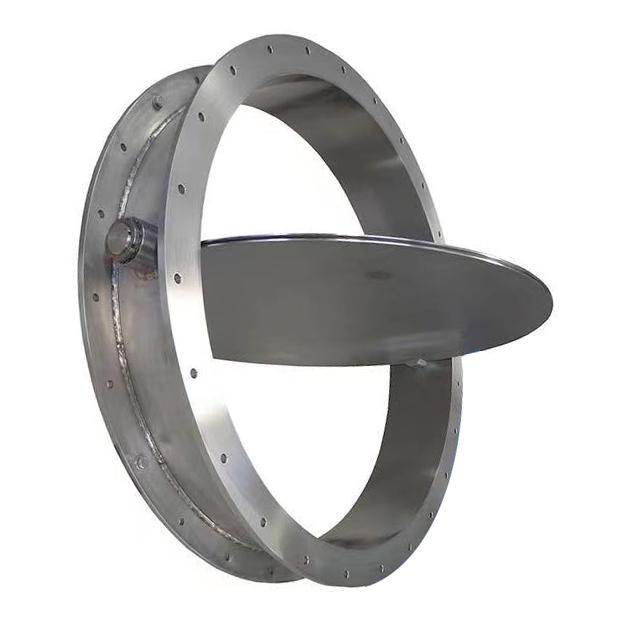

RTO Valve Ventilation Butterfly Valve Rto Special Valve

1. Description:

RTO valves are used in cold air or hot air gas pipelines containing dust in ventilation

Environmental protection projects in chemical, building materials, power stations, glass and other industries

As pipe control devices for regulating flow or cutting off gas medium.

2. Specification:

FABIA Valve Parameter List
Valve type:	RTO Valve Ventilation Butterfly Valve Rto Special Valve
Size:	1/8 inch ～ 18 inch
Material:	WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type:	butt clamp/flange connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN10,0～100Mpa
Temperature:	-40℃～450℃
Model:	FB-DB..........

3. Ventilation Butterfly Valve features:

Designed and manufactured by using the new structure form of welding between the middle line type butterfly plate and the short structure steel plate.
Advantages of compact structure, light weight, easy installation.
Small flow resistance, large circulation.
Butterfly valve is welded by the middle line butterfly plate and short structural steel plate
Component problems will not occur during use, so the failure rate is very low.
Very easy to use. It is a reliable valve device.
Service life is longer than the elastic seal, and it has the characteristics of high temperature resistance.
Building materials, electricity, metallurgy and other industries have a wide range of applications.
In the medium transmission pipeline with a temperature not higher than 300 degrees, the connection and closing adjustment can be realized.
