Product Description

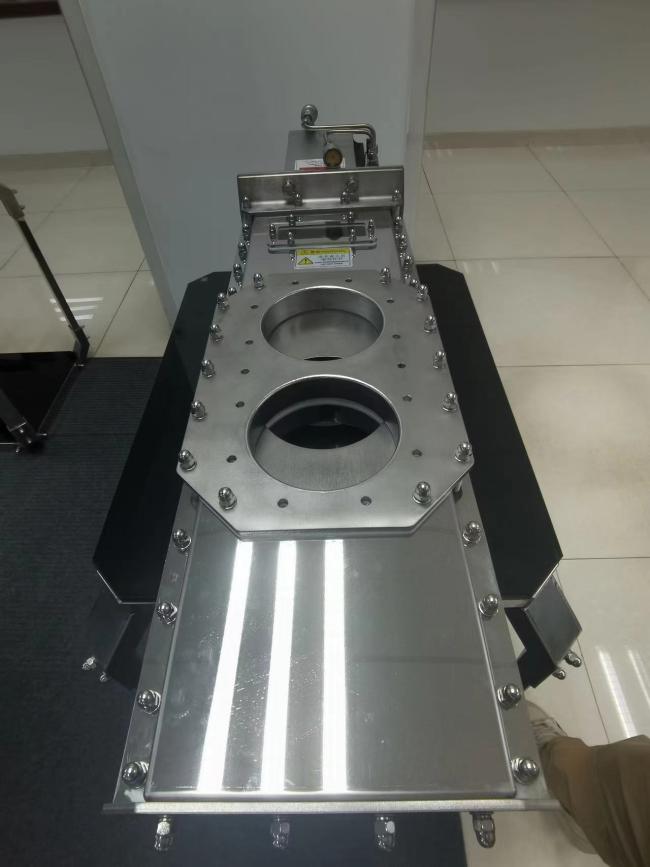

12inch Pneumatic Slide Damper with high performance for biopharmaceutical exhaust systems
1. Description:
This valve is mainly used in biopharmaceutical and waste classification high-speed conveying systems, and the main conveying medium is medical supplies (such as surgical gowns, bed sheets, etc.)
2. Specification:
| Product No. | Size | Thickness (body) |
Thickness (blade) |
D(shaft) | Control Model |
| FB-SD-0300-01 | D300 | 3.0 | 10.0 | D30 | Pneumatic |
| FB-SD-0350-02 | D350 | 3.0 | 10.0 | D30 | |
| FB-SD-0400-03 | D400 | 3.0 | 10.0 | D30 | |
| FB-SD-0450-04 | D450 | 3.0 | 12.0 | D40 | |
| FB-SD-0500-05 | D500 | 4.0 | 12.0 | D40 | |
| FB-SD-0550-06 | D550 | 4.0 | 12.0 | D40 | |
| FB-SD-0600-07 | D600 | 4.0 | 12.0 | D40 | |
| FB-SD-0650-08 | D650 | 4.0 | 12.0 | D40 | |
| FB-SD-0700-09 | D700 | 4.0 | 12.0 | D40 | |
| FB-SD-0750-10 | D750 | 4.0 | 12.0 | D40 | |
| FB-SD-0800-11 | D800 | 4.0 | 12.0 | D40 | |
| FB-SD-FREE | FREE | ||||

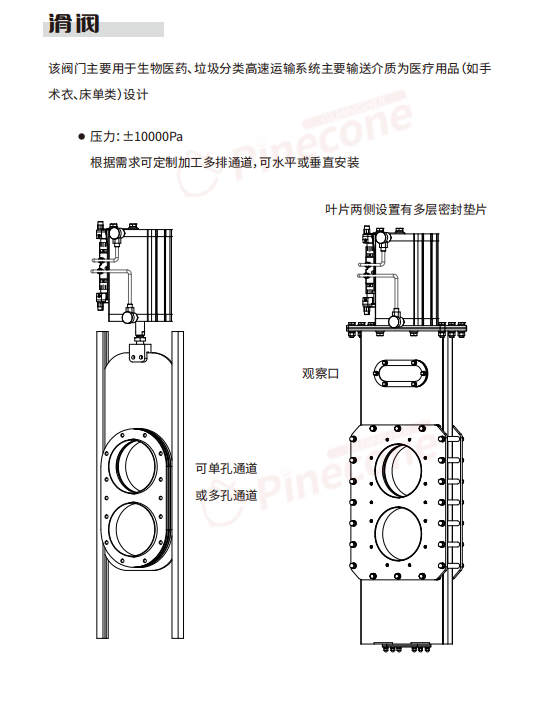

3. Features:
- Structure:Single hole channel and Porous channel
- Design Pressure:±10000Pa
- Multiple rows of channels can be customized and processed according to needs
- Install:Horizontal or Vertical
- Including access door
- Multiple layers of sealing gaskets are installed on both sides of the blade
- Material:Stainless
- Control Model:Pneumatic
