Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 work days
Brand:
FABIA
Product Description

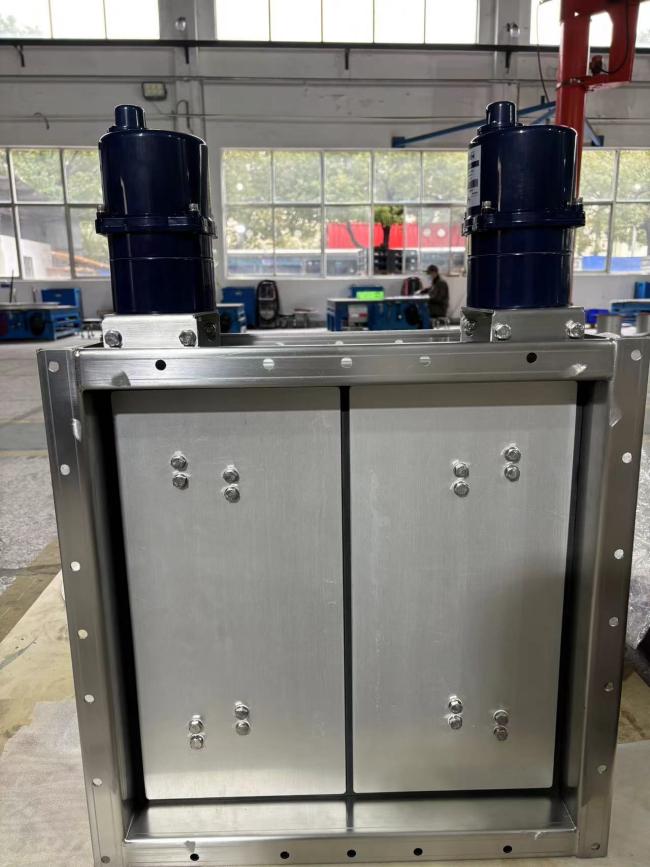

Zero Leakage 11inch 30inch Electric Airtight Damper Valve for Biomedical Exhaust Systems
1. Description:
This valve is mainly used inBiomedical exhaust system , and the valve is mostly multi linkage structures with zero leakage.
2. Specification:
| Product No. | Size(A) | Size (B) | Height | Thickness (body) |
Thickness (blade) |
D(shaft) | Control Model |
| FB-RSAD-0300*0300-01 | 300 | 300 | 250 | 2.5 | 2 | D18 | Manual/Pneumatic/Electric |
| FB-RSAD-0350*0350-02 | 350 | 350 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0400*0400-03 | 400 | 400 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0450*0450-04 | 450 | 450 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0500*0500-05 | 500 | 500 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0550*0550-06 | 550 | 550 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0600*0600-07 | 600 | 600 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0650*0650-08 | 650 | 650 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0700*0700-09 | 700 | 700 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0750*0750-10 | 750 | 750 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-0800*0800-11 | 800 | 800 | 250 | 2.5 | 2 | D18 | |
| FB-RSAD-FREE | FREE | ||||||
3. Features:
- Structure:achieving a push in extrusion effect to achieve sealing by multi link structure; Adopting a multi link water valve structure to achieve airtightness
- Design Pressure:±4000Pa
- Leakage:Zero leakage
- Material:Stainless
- Control Model:Manual/Pneumatic/Electric
