Pneumatic Three Way Switching Damper For Chemical Industry And Grain Transportation With High Performance
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 work days
Brand:
FABIA
Product Description

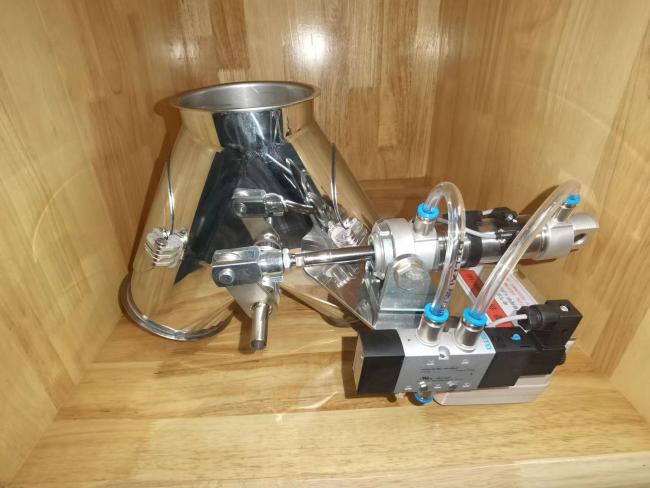

Pneumatic Three-way switching damper for chemical industry and grain transportation with high performance
1. Description:
This valve is mainly used in chemical and grain machinery conveying systems. Mainly used for switching between conveying branches. According to the needs, the angle between the two branch pipes can be customized and processed according to the needs.
2. Specification:
| Product No. | Size | Thickness (body) |
Thickness (blade) |
D(shaft) | Control Model |
| FB-TSD-0100-01 | D100 | 3.0 | 4.0 | D30 | Pneumatic |
| FB-TSD-0150-02 | D150 | 3.0 | 4.0 | D30 | |
| FB-TSD-0200-03 | D200 | 3.0 | 4.0 | D30 | |
| FB-TSD-0250-04 | D250 | 3.0 | 4.0 | D30 | |
| FB-TSD-0300-05 | D300 | 3.0 | 4.0 | D30 | |
| FB-TSD-0350-06 | D350 | 3.0 | 4.0 | D30 | |
| FB-TSD-0400-07 | D400 | 4.0 | 5.0 | D50 | |
| FB-TSD-0450-08 | D450 | 4.0 | 5.0 | D50 | |
| FB-TSD-0500-09 | D500 | 4.0 | 5.0 | D50 | |
| FB-TSD-0550-10 | D550 | 4.0 | 5.0 | D50 | |
| FB-TSD-0600-11 | D600 | 4.0 | 5.0 | D50 | |
| FB-TSD-0650-12 | D650 | 4.0 | 5.0 | D50 | |
| FB-TSD-0700-13 | D700 | 4.0 | 5.0 | D50 | |
| FB-TSD-FREE | FREE | ||||
3. Features:
- Material:Stainless steel
- Contact type jog switch,70 ℃ fireproof probe, 180 ℃ smoke exhaust probe
- Pressure Design:±2000Pa
- Including access door for maintenance

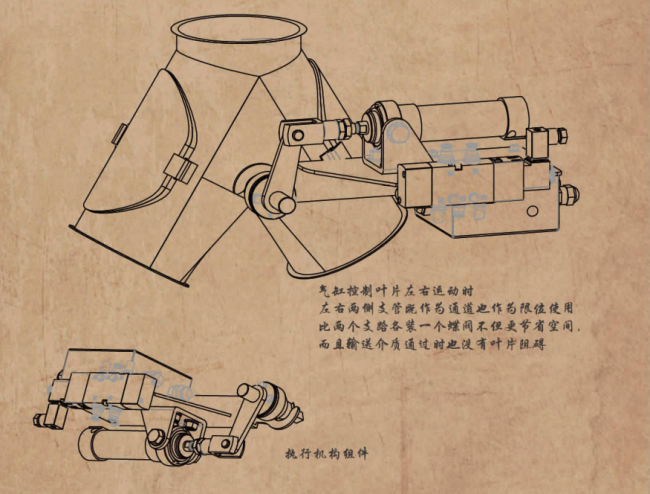

- When the cylinder controls the left and right movement of the blades, the left and right branch pipes are used as both channels and limits, which is more space saving than installing a butterfly valve on each of the two branches, and there is no obstruction from the blades when conveying the medium.
