Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Centerline Pneumatic Stainless Steel Flanged Butterfly Valve
1. Description:

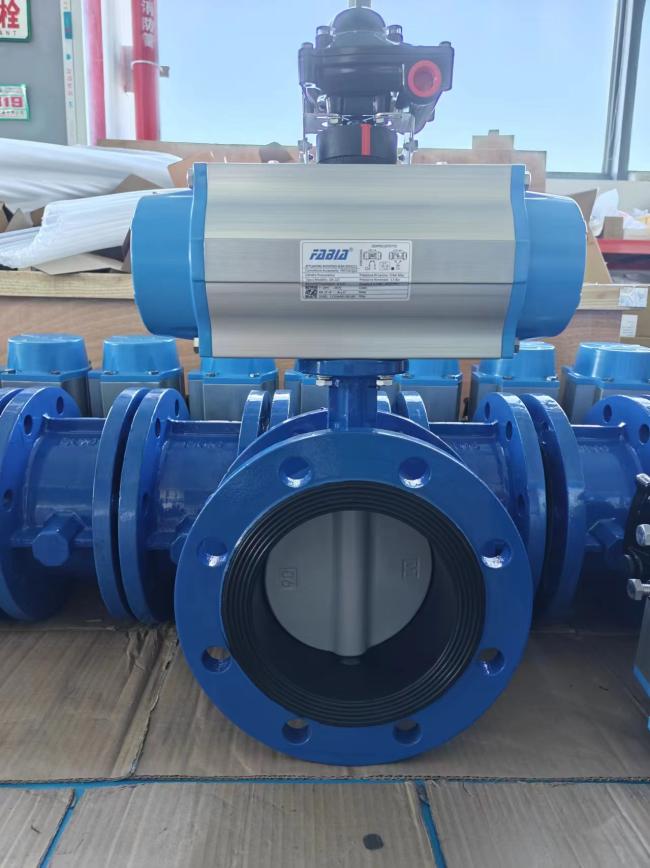

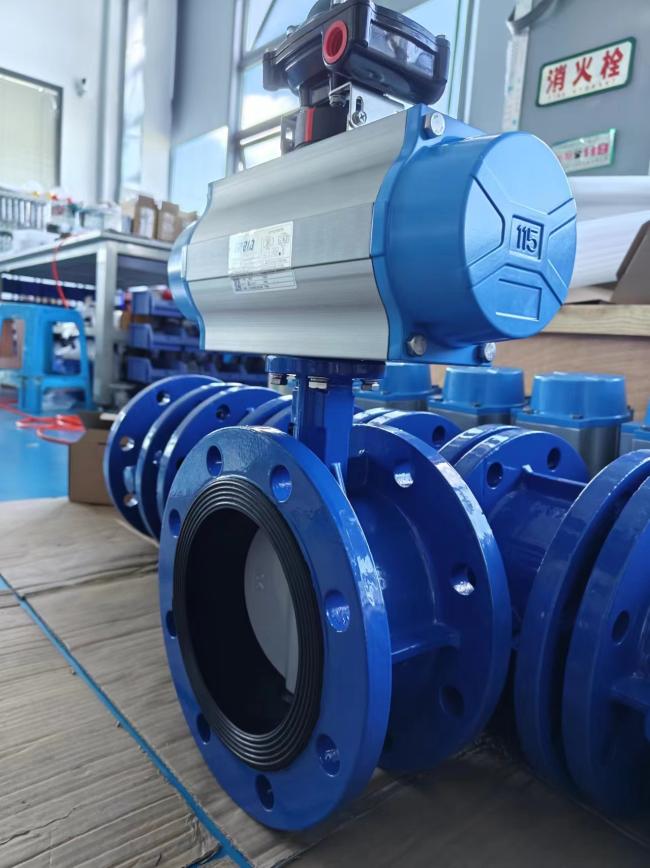

Centerline Pneumatic Carbon Steel Flanged Butterfly Valve is composed of a pneumatic actuator and a flanged soft seal butterfly valve, which is suitable for regulating the flow and stopping the medium on the water supply and drainage pipe of food, medicine, chemical industry, petroleum, electric power, textile, paper making and other gas pipes with the temperature ≤120℃ and nominal pressure ≤1.6MPa.
This valve combines durable stainless steel construction with soft-seated sealing, ensuring reliable performance and efficient flow control in various industrial applications.
2. Specification:
| Attribute Name | Attribute Value |
|---|---|
| Product Name | Pneumatic Flanged Butterfly Valve |
| Valve Type | Butterfly |
| Valve Material | Stainless Steel |
| Valve Operation | Pneumatic |
| Valve Connection | Flanged |
| Valve Application | Petroleum, Chemical, Power, etc. |
| Valve Body Material | Carbon Steel |
| Valve Pressure | 1.6 MPa |
| Valve Seat Material | NBR, EPDM, Viton |
| Valve Temperature | -30°C to +120°C |
| Actuator Type | Pneumatic |
| Leakage Class | ANSI Class VI, ISO 5208 Class D |
| Fire Safe Design | API 607, ISO 10497 |
| Certification | API, ISO, CE |
3. Features:
- Good two-way sealing performance, small torque value.
- Flow characteristics tend to be straight, good adjustment performance.
- Flange connection installation is convenient, vertical, horizontal installation can be.
- Diversity of sealing materials, available for users to choose.
- Can be used for pipe end as a vent valve, reliable performance.
- Valve seat sealing ring is organically combined with the valve body to make the valve have a long service life.
- Flange type soft seal butterfly valve design is simple, reasonable, compact structure, light weight, fast opening and closing.
- Small torque, easy to operate, labor-saving dexterity.
- Can be installed in any position, easy maintenance.
- Seal can be replaced, sealing to achieve bi-directional sealing zero leakage.
- Sealing material aging resistance, long service life, etc.
