Triple eccentric marine butterfly valve High Performance For Diesel Engine Exhaust Gas Treatment System

1. Description:

In the Marine field, FB-D-73 series butterfly valves are mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-73 series butterfly valves have also been widely used in the road industry, such as steam desorption ads- orption pipes in VOCs and some other gas pipelines that require strict leakage rates.

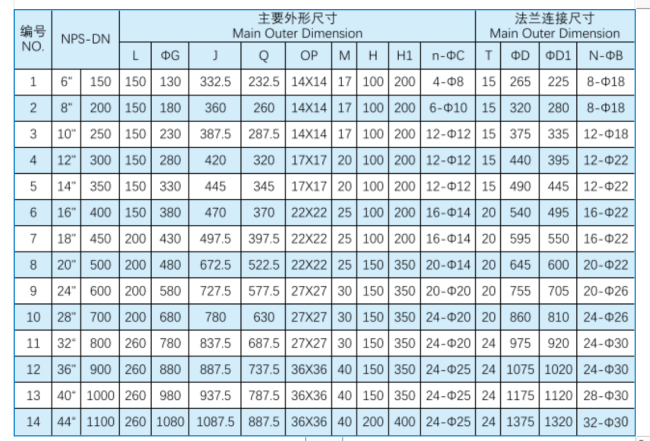

2. Specification:

3. Features:

• three eccentric structure,wideoblique valveseat design
• Suitable for low pressure air or other gas flow, pressure control and high temperature gas
• Zero air leakage
• CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
• Strong Corrosion Resistance: Manufactured with high-quality corrosion-resistant materials, suitable for harsh operating environments.
• Precise Control: High-precision control system ensures accurate adjustment of gas flow.
• Excellent Sealing: Well-designed sealing structure reduces leakage rate.
• Fast Response: Quick opening and closing enhance system response speed.
• Simple Structure: Easy maintenance minimizes downtime.
• High Temperature Resistance: Able to withstand high-temperature conditions reliably.
