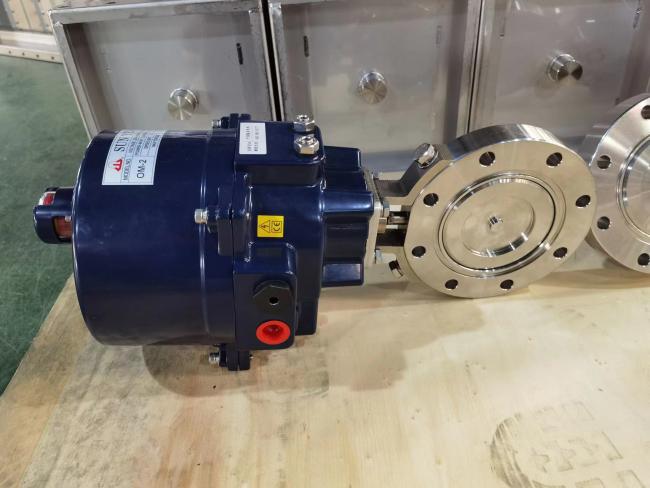

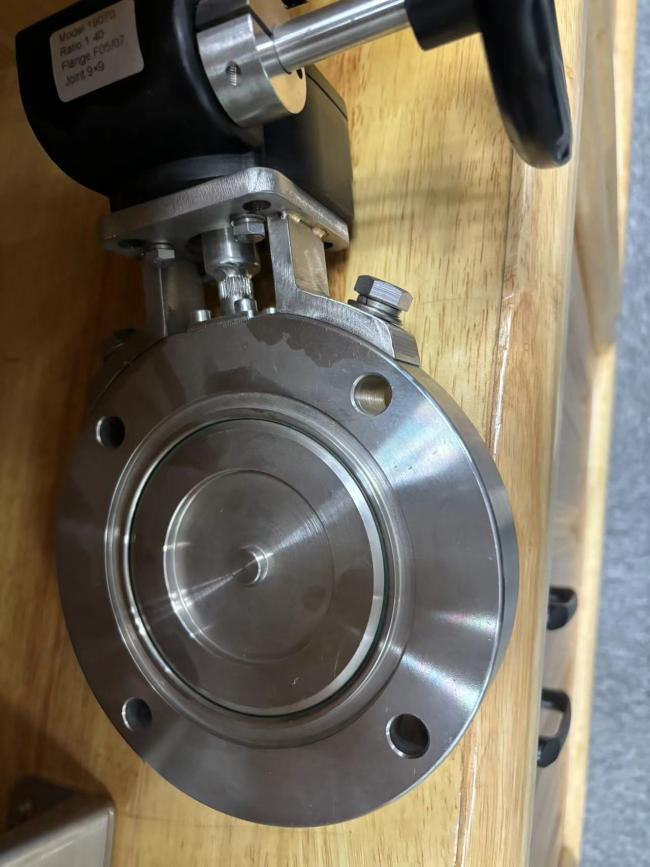

Electric High Vacuum Rated Stainless Steel Butterfly Valve For Food And Beverage
electric High Vacuum Rated Stainless Steel Butterfly Valve For Food And Beverage
1. Description:
Electric vacuum butterfly valve is a device used to control fluid flow, especially suitable for connecting or cutting off airflow in vacuum pipelines. It adopts a rotary electric and electronic regulating valve drive device, which controls the valve opening, closing or intermediate position through the switching of external power supply (such as manual switch or computer control) or external input signals. The design of this valve ensures quality and safety, including comprehensive testing of pressure, material, sealing, and other aspects to ensure quality.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Vacuum butterfly valve Electric stainless steel valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN16,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Simple structure and easy maintenance.
- Easy to operate and can be automatically controlled by electric actuator.
- Good sealing, can effectively prevent fluid leakage.
- Long service life, can meet the long-term stable fluid control needs
| Attribute | Value |
|---|---|
| Product Name | Electric Vacuum Ball Valve |
| Name | Vacuum Ball Valve |
| Type | Ball Valve |
| Temperature | High Temperature |
| Vacuum | High Vacuum |
| Pressure | High Pressure |
| Material | Stainless Steel |
| Seal | PTFE/EPDM |
| Connection | Flanged |
| Pressure Rating | 1000 psi |
| Size | 1/2 to 8 inches |
| Temperature Rating | 450°F |
| Flow Direction | Bidirectional |
| Actuator Type | Electric |
| Standards | ANSI, ISO 9001 |
| Control Type | On/Off or Modulating |
