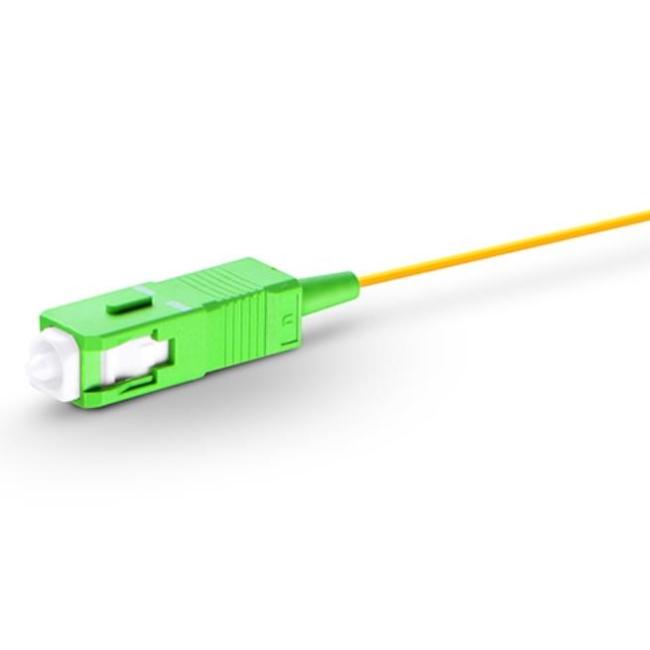

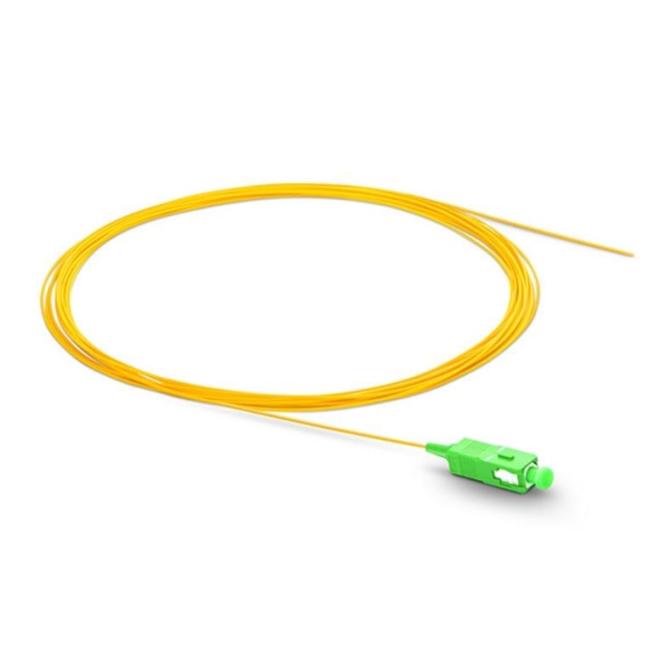

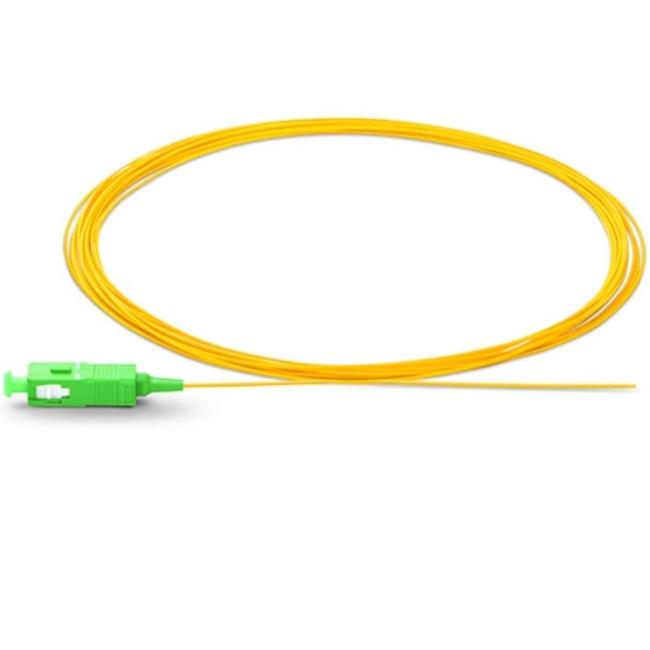

Simplex 0.9mm Fiber Optic Patch Cord Pigtail SC APC Optical Fiber Pigtail
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Dierite
Product Description
Simplex SC/APC 9/125 Single Mode Fiber Optic Pigtail, 0.9 mm PVC Outer Jacket
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the indu
Feature
-- Low insertion loss & High return loss
-- Good exchangeability
-- Good Durability
-- High temperature stability
-- Superior PC/UPC/APC Polishing
-- Standard: IEC Grade B
Applications:
-- Fiber Optic communications system
-- Fiber Optic access networks
-- CATV/CCTV --Fiber Optic data communication
-- Fiber Optic Test Equipment
Connector A
SC
Connector B
Unterminated
Fiber Mode
9/125 μm
Fiber Count
Simplex
Fiber Grade
G.657.A1
Minimum Bend Radius
10 mm
Polish Type
APC
Cable Diameter
0.9 mm
Cable Jacket
PVC
Jacket Color
Yellow
Wavelength
1310 nm/1550 nm
Durability
500 Times
Insertion Loss
≤0.3 dB
Interchangeability
≤0.2 dB
Return Loss
≥60 dB
Vibration
≤0.2 dB
Operating Temperature
-40~75°C
Storage Temperature
-45~85°C
