High Tension Low Tension Electrical LV Panel Lighting Control Panel IP65
Medium Voltage Low Voltage High Tention Low Tention Lighting Control Panel
Product Description
The switchgear is equipped with various protective devices, such as circuit breakers, fuses, and ground fault protection, to prevent electrical faults and short circuits. These protective devices can quickly detect and isolate faults, preventing damage to the electrical equipment and minimizing the risk of electrical shock to personnel.
Moreover, low-voltage switchgear can also help to optimize the power system and reduce energy consumption. With the help of advanced control systems, the switchgear can regulate the voltage and power factor of the electrical system, which can reduce energy losses and improve overall energy efficiency.
Overall, the importance of low-voltage switchgear in real estate, commercial buildings, and other fields cannot be overstated. It is an essential component of the power system, providing reliable and efficient power distribution, control, and protection, as well as contributing to energy conservation and optimization.
Specification
| Rated Insulation voltage | 690V (1000)V |
| Rated working voltage | 380V, 400V, 690V |
| Maximum working current of main bus | 6300A |
| Rated withstand current of main busbar | 100kA/1s |
| Main busbar rated peak withstand current | 220kA/0.1s |
| Maximum operating current of branch distribution bus (vertical bus) | 2000A |
| Standard type | 105kA(Max)/0.1s |
| Reinforced type | 176kA(Max)/0.1s |
| Protection level | IP4X, IP41,IP65 |
Engineering
1.Power generation plants
2.Substations
3.Commercial buildings
4.Data centers
5.Renewable energy systems
6.Transportation

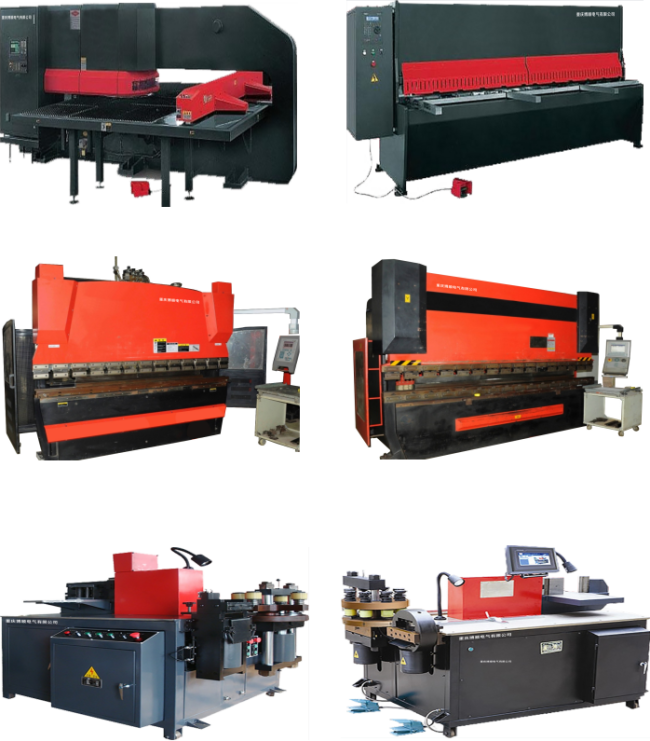

Production Facilities
Team Show
1.Professional team
2.Comprehensive services
3.Strict quality control
4.Comprehensive inspection
5.Responsibility guarantee
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
