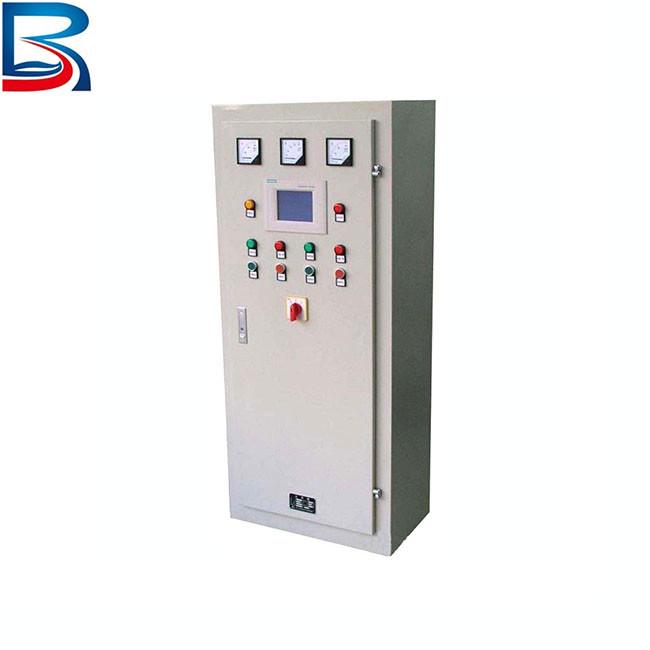

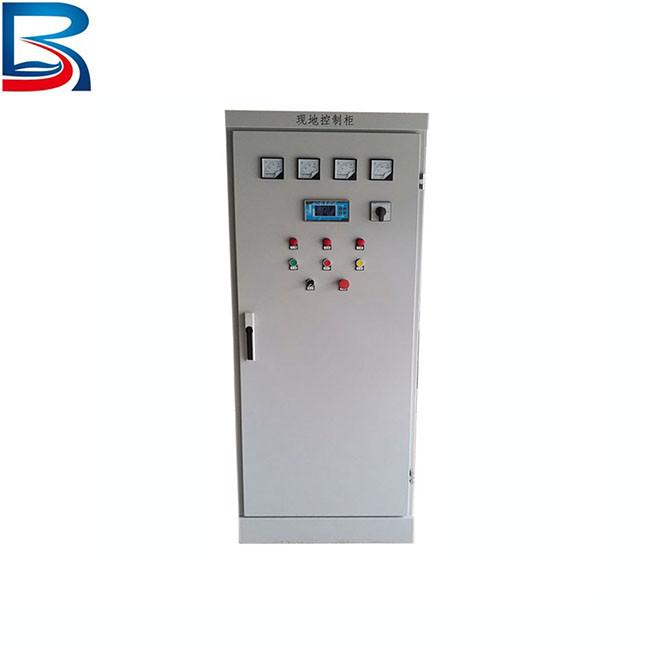

Low-Voltage Power Distribution Cabinet 400v 4 In 2 Out 3 Phase
Low-voltage Distribution Cabinet 400v 4 in 2 out The Power Distribution Cabinet
Product knowledge
Secondary wiring process
First, according to the schematic diagram, not in the same position to the terminal, do not connect a terminal with 3 wires. Check the wrong is not so check, only according to the schematic to one by one.
1, the selection of wire cross section
Mains (AC 220V) voltage circuit line with 1.5 square mm; The current loop is 2.5 square millimeters. The battery is usually 1.5 square millimeters.
2, when wiring, check whether the signals at both ends of the wire correspond to avoid unnecessary errors.
3. The most important thing is to understand the schematic diagram and wiring diagram.
Low-voltage Distribution Cabinet 400v 4 in 2 out The Power Distribution Cabinet
|
Parameter
|
Description
|
|
Brand
|
Bosun
|
|
Size(W*D*H)
|
Customizable
|
|
Rated working voltage
|
Customizable
|
|
Rated insulation voltage
|
Customizable
|
|
Frequency
|
Customizable
|
|
Rated current of main busbar
|
Customizable
|
|
Rated current of distribution bus
|
Customizable
|
|
Rated short-time withstand current of main bus
|
Customizable
|
|
Rated short-time withstand current of distribution bus
|
Customizable
|
|
Enclosure protection class
|
Customizable
|
Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.
Q: How can I get a quotation?
A: Pls kindly supply single line diagram or details description( proposal) on demand products.
Q: How long get a quotation?
A: We will supply quotation within 24hours according to details description or single line diagram.
Q: What about after sale?
A: During warranty period , we will supply any technical service to solve problem.
Q: What about warranty?
A: 24month after the goods leave Ningbo/Shanghai port.
