Slant Tube Filler For Domestic And Industrial Sewage Treatment-TSS-35

PRODUCT OVERVIEW

Product Overview: PSS-35 Slant Plate Filler and Slant Tube Filler for Domestic and Industrial Sewage Treatment
The PSS-35 Slant Plate Filler and Slant Tube Filler are innovative solutions designed for efficient sewage treatment in both domestic and industrial settings.
Features and Benefits:

1. Slant Plate Filler: This component is specifically designed to enhance the sedimentation and separation processes in sewage treatment systems. Its slanted plates provide an increased surface area, promoting the settling of solids and improving the overall treatment efficiency.

2. Slant Tube Filler: The slant tube design optimizes the flow dynamics within the sewage treatment system, facilitating the separation of impurities and enhancing the sedimentation process. The tubes' inclined configuration ensures the effective removal of suspended solids, resulting in cleaner effluent.

3. Domestic and Industrial Application: The PSS-35 fillers are suitable for both domestic and industrial sewage treatment applications. They effectively remove pollutants, organic matter, and suspended solids, ensuring compliance with environmental regulations and maintaining water quality standards.

4. High Efficiency: The PSS-35 fillers offer high treatment efficiency, effectively reducing the concentration of pollutants and improving the clarity of the treated water. This results in cleaner and safer effluent discharge.

5. Robust Construction: Constructed from durable materials, the PSS-35 fillers are designed to withstand harsh operating conditions and ensure long-term reliability. They require minimal maintenance, making them a cost-effective solution for sewage treatment applications.

6. Easy Installation: The PSS-35 fillers are designed for easy installation, allowing for quick integration into new systems or retrofitting into existing sewage treatment plants.

FEATURES

1. Large wet circumference and small hydraulic radius.
2. The laminar flow state is good, and particle sedimentation is not disturbed by floc flow.
3. When the length of the inclined pipe is 1 meter, the effective load is designed at 3-5 tons/m2 · h. V0 is controlled within the range of 2.5-3.0 millimeters per second, resulting in excellent effluent quality.
4. Honeycomb inclined pipes are used at the water intake, with a length of 2.0-3.0 meters, which can safely operate and handle high turbidity with a sediment content of 50-100 kg/m³.
5. Adopting an inclined tube sedimentation tank, its processing capacity is 3-5 times that of a horizontal flow sedimentation tank, and 2-3 times that of an accelerated sedimentation tank and a pulse sedimentation tank.

              Inclined tube packing                                                        Slant Plate Filler                                                        Warehouse finished product area

Material Advantage

Hexagonal honeycomb inclined tube circuit:

Dragonfly Ethylene Propylene Copolymer: Flexible, Easy to Float;

PVC polystyrene: easy aging, brittle, slightly toxic;

FRP fiberglass: acid and alkali resistance.

Inclined packing:

Polypropylene ethylene propylene copolymerization: acid resistance, alkali resistance, beautiful appearance

PVC polyvinyl chloride: slightly toxic;

FRP fiberglass: acid and alkali resistance.

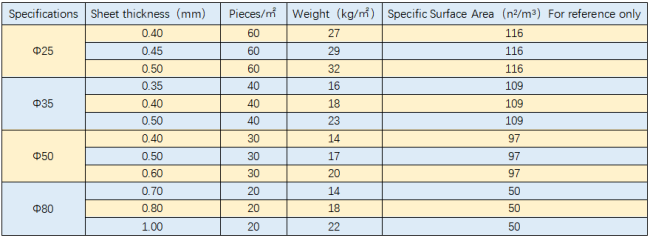

Main Technical Parameters
