BTH-8032 BTH 8132 Surgical 4K Medical Monitor Eco Friendly LED Backlight
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

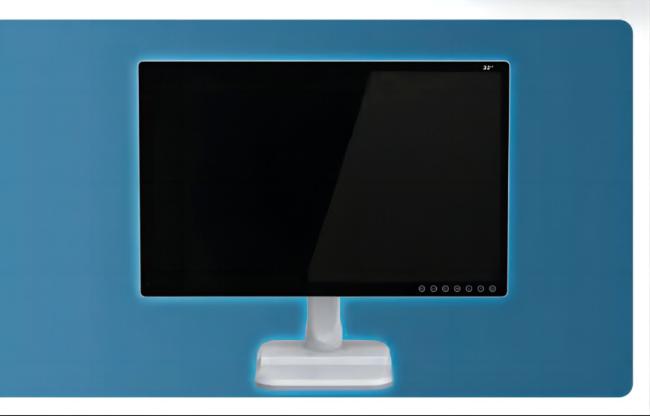

BTH-8032 BTH 8132 Medical Monitor Environmentally friendly LED backlight
Product Description
The meidcal monitor adopt widescreen full HD panels with accurate color rendering, excellent layering, smooth and dynamic images and an expanded visual scope, which meet the current rapidly changing demands for medical displays and is able to provide clear and precise observation of surgical sites together with our camera system in minimally invasive surgery.This product is perfectly suited to meet the requirements of various kinds of endoscopic displays and ICU displays due to its white frame, water-proof design, antibacterial treatment, compliance with electromagnetic compatibility regulations and multiple video input/output interfaces.
Product Features
- High-performance I/P conversion
- Bright color separation deep compensation
- Environmentally friendly LED backlight
- Dynamic dark area color reconstruction technology
- Over Drive accelerates response and eliminates screen smear
- Digital image transient enhancement technology
- Unique white balance automatic adaptation technology
- Gamma value adjusted one by one before leaving the factory
- Personalized three primary color adjustment permissions
- Operate custom screen ratio adjustment between different modes
 |
|

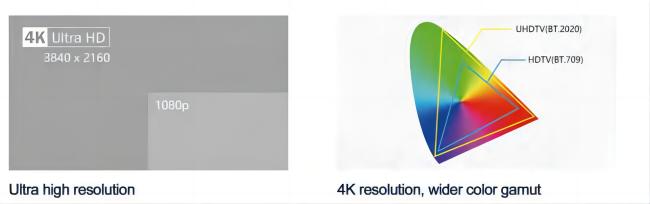

| 3840x2160 utra-high-definition image output showing richer textures and more accurate tissue identification. | 3840x2160 pixel image output, showing richer texture, more accurate tissue identification; Wider color gamut truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster. |
| Product Name | BTH-8024 | BTH-8032 |
| Screen Size | 24" | 32" |
| Appearance | White metal shell | |
| Power Supply | External power supply | |
| Power Supply Specifications | 12V/8.5A | |
| Resolution | 1920x1080 | |
| Proportion | 16:9 | |
| Factory Brightness | 500±20% | 400 |
| Highest Brightness | 600 | 400 |
| Contrast | 1000:1 | 1200:01:00 |
| Display Color | 16.7M (6bit) | 16.7M 8bit |
| Dot Pitch | 0.2745x0.2745 | 121.25(H)xRGBx363.75(V) |
| Response Time | 14ms | 8ms |
| Perspective | 178/178 | 178/178 |
| Dimensions (Without Base) | 570(W)x345(H)x65(D)mm | 746(W)x481(H)x67(D)mm |
| Installation Standard | VESA 100x100mm | VESA 200x100mm |
| Power Consumption | 80W max | 100W max |
| Energy Saving | EPA, VESA | |
| Operating Temperature | 5℃~40℃ | |
| MTBF (Mean Time Between Failures) | >50,000 hours | |
| Signal Interface | HDMI/DVI/GA/CVBS/S-VIDEO | |
| Application | Endoscope/electronic gastrointestinal endoscopy, laparoscopy | |
| Factory Curve | AMA2.6 | |
| Factory Color Temperature | 6500K | |
| Color Gamut | 72% NTSC (sRGB) | |
| Brightness Uniformity | >75% | |
| Brightness Equalization Technology | Brightness stabilization system | |
| Environmental Light Compensation | N/C | |
| Dot Clock Frequency | 154MHz | 400MHZ |
| Scanning Frequency | 50Hz-75Hz | 58HZ-97HZ |
| Backlight module | LED | LED |
