Electronic Grade High Purity 99.9999% 6n Sih4 Cylinder Gas Silane
Price:
US $45/kg
MOQ:
1kg
Delivery Time:
15 days
Brand:
CMC
Product Description

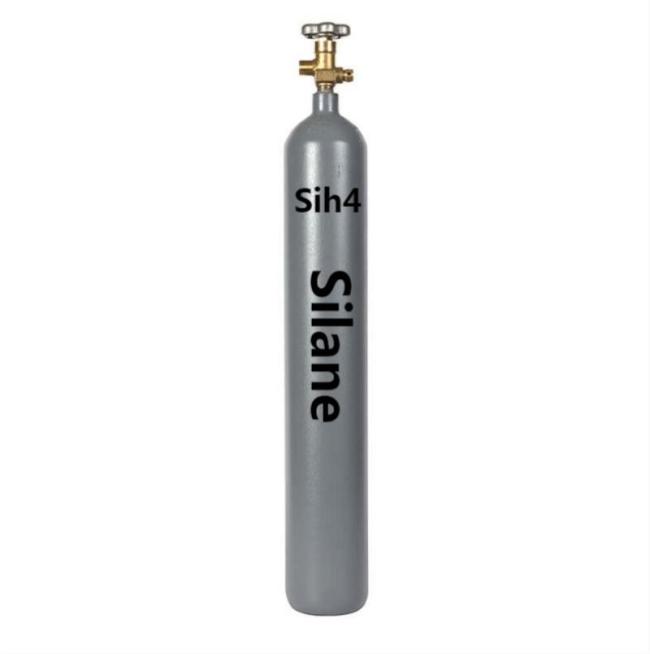

Electronic Grade 6n Sih4 Silane Gas Ultra High Purity 99.9999%
SiH4 refers to silane, which is a chemical compound composed of one silicon atom bonded to four hydrogen atoms. Here are some key points about SiH4:
- Chemical Formula: SiH4
- Molecular Weight: 32.12 g/mol
- Structure: Silane has a tetrahedral molecular geometry, with the silicon atom at the center and four hydrogen atoms arranged around it.
- Physical Properties: Silane is a colorless, flammable gas with a pungent odor. It is less dense than air and can form explosive mixtures when combined with air.
- Chemical Reactivity: Silane is highly reactive and can readily react with oxygen, water, and other substances. It is pyrophoric, meaning it can ignite spontaneously in the presence of air or moisture.
- Applications: Silane has various applications, primarily in the semiconductor industry. It is used as a precursor in the chemical vapor deposition (CVD) process to deposit thin films of silicon onto semiconductor substrates. Silane is also used in the production of solar cells, optical fibers, and certain types of coatings.
- Safety Considerations: Silane is highly flammable and can pose fire and explosion hazards. It is also toxic and can cause chemical burns. Proper safety precautions, including the use of specialized equipment and trained personnel, should be followed when handling and working with silane.
- Storage and Handling: Silane is typically stored and transported in specialized containers under controlled conditions to prevent exposure to air and moisture. It is handled with extreme caution due to its reactivity and flammability.
- Environmental Impact: Silane is not considered a significant environmental hazard. However, its use and disposal should be in accordance with local regulations and best practices to minimize any potential impact.
Basic Info.
| Model NO. | Sih4 | Boiling Point | -112 ºC |
| Density | 1.34 Kg/M³ | Melting Point | -185 ºC |
| Cylinder Pressure | 12.5MPa/15MPa/20MPa | Transport Package | 47L/440L/ISO Tank |
| Specification | 47L/440L/ISO Tank | Origin | China |
| HS Code | 2931900090 | Production Capacity | 20, 000tons/Year |
Specification:
CAS No.: 7803-62-5
EINECS No.: 232-263-4
UN No.: UN2203
Purity: 99.9999%
Dot Class: 2.1
Appearance: Colorless
Grade Standard: Electronic Grade
| Specification | 99.9999% |
| Carbon Monoxide | ≤ 0.05 ppm |
| Carbon Dioxide | ≤ 0.05 ppm |
| Total chloride | ≤ 0.1 ppm |
| Methane | ≤ 0.05 ppm |
| C2-C4 | ≤ 0.1 ppm |
| Nitrogen | ≤ 0.5 ppm |
| Oxygen | ≤ 0.05 ppm |
| Moisture | ≤ 0.1 ppm |
| Silyl Ether | ≤ 0.1 ppm |
| Methyl Silane | ≤ 0.1 ppm |
| Disilane | ≤ 0.3 ppm |
| Hydrogen | ≤ 20 ppm |
| Aluminum | ≤ 0.02 ppba |
| Antimony | ≤ 0.02 ppba |
| Arsenic | ≤ 0.02 ppba |
| Gallium | ≤ 0.02 ppba |
| Boron | ≤ 0.02 ppba |
| Phosphorus | ≤ 0.02 ppba |
| Iron + Chromium + Nickel + Copper + Zinc | ≤ 1 ppba |

Packaging & Shipping
| Cylinder Specifications | Contents | |
| Cylinder Capacity | Valve | Weight |
| 47L | DISS632 | 10 kgs |
| 440L | DISS632 | 120 kg |
Shanghai Kemike Chemical Co., Ltd is staffed by trained personnel, combine many years experience in Gas industry .We supply cylinder gas, electronic gas, etc ., and the gas holder, panel, valves and fittings and other equipment, parts and engineering services to our customers in China and worldwide; The products are involved in various industrial fields, such as semiconductor chip, solar cell, LED, TFT-LCD, optical fiber, glass, laser, medicine , etc., Our mission is to partner with our global customers to provide support, solutions and quality products that are innovative,reliable, and safe.
Our products mainly include: H2, O2, N2, Ar, CO2, propane, acetylene, helium, laser mixed gas, SiH4, Sih2cl2, SiHCL3, SiCL4, NH3, CF4, NF3, SF6, HCL, N2O, doping mixed gas (TMB, PH3, B2H6) and other electronic gases.
