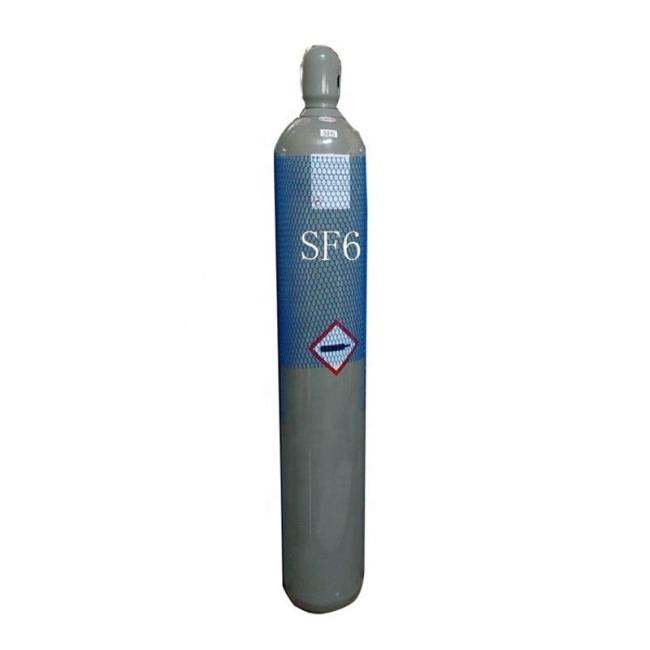

99.999% High Purity Electron Grade Cylinder Gas Sf6 Sulfur Hexafluoride

Product Description

SF6 refers to sulfur hexafluoride, which is a chemical compound composed of one sulfur atom bonded to six fluorine atoms. Here are some key points about SF6:

1. Chemical Formula: SF6
2. Molecular Weight: 146.06 g/mol
3. Structure: SF6 is a covalent compound with a central sulfur atom surrounded by six fluorine atoms, giving it an octahedral molecular geometry.
4. Physical Properties: SF6 is a colorless, odorless, and non-flammable gas at standard temperature and pressure. It has a high density and is significantly heavier than air. SF6 is not soluble in water but is soluble in nonpolar organic solvents.
5. Stability and Inertness: SF6 is chemically stable and inert under normal conditions. It is non-reactive with most substances, including acids, bases, and oxidizers. This inertness makes SF6 useful in various applications.
6. Electrical Insulation: One of the most significant applications of SF6 is as a dielectric medium in high-voltage electrical equipment, such as circuit breakers, gas-insulated switchgear (GIS), and transformers. SF6's high dielectric strength and excellent electrical insulation properties allow for compact and efficient electrical equipment designs.
7. Greenhouse Gas: SF6 is considered a potent greenhouse gas due to its high global warming potential (GWP). It has a GWP significantly higher than carbon dioxide, making it a focus of environmental concerns. Efforts are being made to reduce SF6 emissions and find alternative solutions in various industries.
8. Industrial Applications: SF6 is used in several industrial applications apart from electrical equipment. It is employed as a gaseous dielectric in the electronics industry, as an etching agent in semiconductor manufacturing, and as a tracer gas for leak detection in various systems.
9. Safety Considerations: SF6 is non-toxic and does not pose immediate health hazards. However, as a dense gas, it can displace oxygen in confined spaces and pose asphyxiation risks. When handling SF6, appropriate safety measures and equipment should be employed to ensure proper ventilation and prevent accidental release.
10. Regulations: Due to SF6's high GWP and environmental impact, its use is regulated in many countries. Measures include the monitoring and reporting of SF6 emissions, the use of alternative gases, and the proper handling and recycling of SF6-filled equipment.
