China High Quality Factory Price 6n sih4 Industrial 99.999% Cylinder gas Silane

Price Negotiable
Price: US $45/kg
MOQ: 1kg
Delivery Time: 15 days
Brand: CMC
Product Description

Product Description

Silane is a chemical compound that consists of one silicon atom bonded to four hydrogen atoms (SiH4). Here are some key points about silane:

  1. Structure: Silane has a tetrahedral molecular structure, with the silicon atom at the center and the four hydrogen atoms surrounding it.

  2. Properties: Silane is a colorless, flammable gas with a pungent odor. It is less dense than air and can form explosive mixtures when exposed to certain conditions. Silane is highly reactive and can undergo various chemical reactions.

  3. Production: Silane can be produced through several methods, including the reaction of silicon with hydrogen or the decomposition of silicon-containing compounds. Industrial-scale production typically involves the reaction of metallurgical-grade silicon with hydrogen chloride.

  4. Applications: Silane has various applications in different industries:

    • Semiconductor Industry: Silane is used as a precursor in the deposition of silicon-based thin films for semiconductor devices. It is an essential gas in processes such as chemical vapor deposition (CVD) and plasma-enhanced CVD (PECVD).

    • Solar Energy: Silane is utilized in the production of silicon-based photovoltaic cells (solar cells). It serves as a precursor for depositing thin films of amorphous or polycrystalline silicon on solar cell substrates.

    • Surface Modification: Silane compounds are used as coupling agents and surface modifiers in the formulation of coatings, adhesives, and sealants. They can improve the adhesion and compatibility between different materials.

    • Chemical Synthesis: Silane can be used as a reducing agent or a precursor for the synthesis of various silicon-containing compounds in the chemical industry.

It's important to note that silane is a hazardous substance due to its flammability and reactivity. Proper handling, storage, and safety measures should be followed when working with silane to ensure the well-being of individuals and prevent accidents.



Basic Info.

Model NO. Sih4 Boiling Point -112 ºC
Density 1.34 Kg/M³ Melting Point -185 ºC
Cylinder Pressure 12.5MPa/15MPa/20MPa Transport Package 47L/440L/ISO Tank
Specification 47L/440L/ISO Tank Origin China
HS Code 2931900090 Production Capacity 20, 000tons/Year

Specification:
CAS No.: 7803-62-5
EINECS No.: 232-263-4
UN No.: UN2203
Purity: 99.9999%
Dot Class: 2.1
Appearance: Colorless
Grade Standard: Electronic Grade

Specification  99.9999%
Carbon Monoxide ≤ 0.05 ppm
Carbon Dioxide ≤ 0.05 ppm
Total chloride ≤ 0.1 ppm
Methane ≤ 0.05 ppm
C2-C4 ≤ 0.1 ppm
Nitrogen ≤ 0.5 ppm
Oxygen ≤ 0.05 ppm
Moisture ≤ 0.1 ppm
Silyl Ether ≤ 0.1 ppm
Methyl Silane ≤ 0.1 ppm
Disilane ≤ 0.3 ppm
Hydrogen ≤ 20 ppm
Aluminum ≤ 0.02 ppba
Antimony ≤ 0.02 ppba
Arsenic ≤ 0.02 ppba
Gallium ≤ 0.02 ppba
Boron ≤ 0.02 ppba
Phosphorus ≤ 0.02 ppba
Iron + Chromium + Nickel + Copper + Zinc ≤ 1 ppba

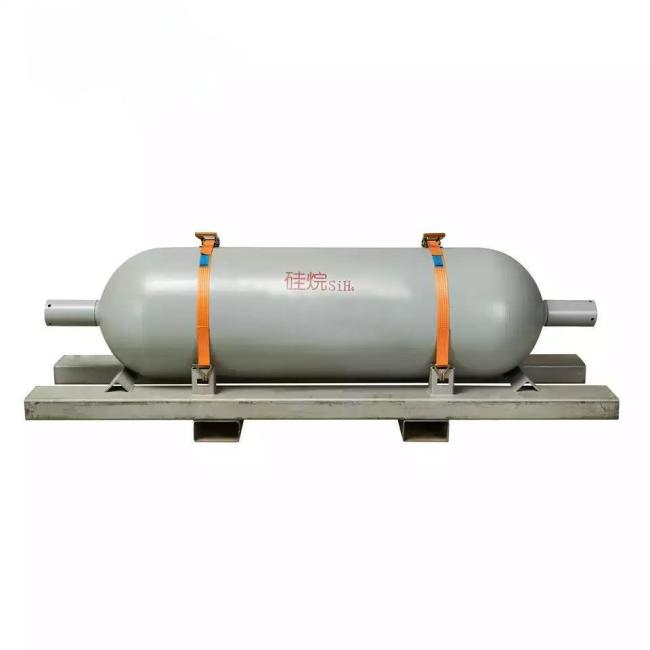

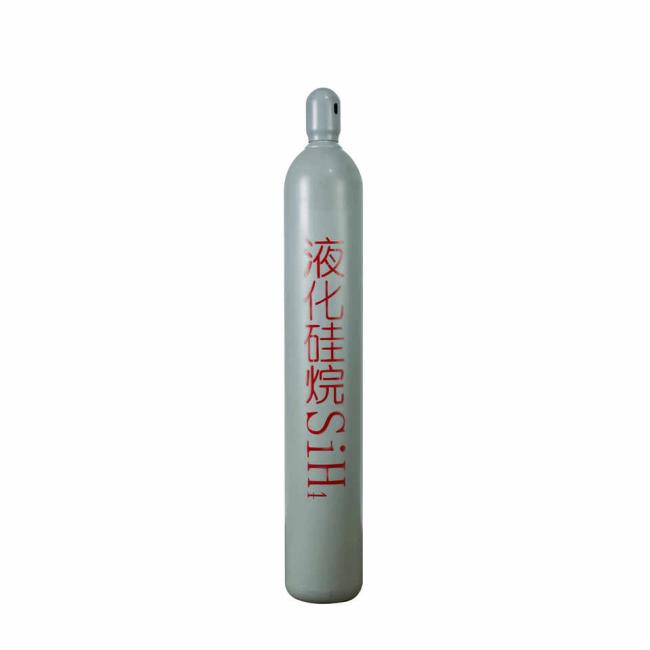

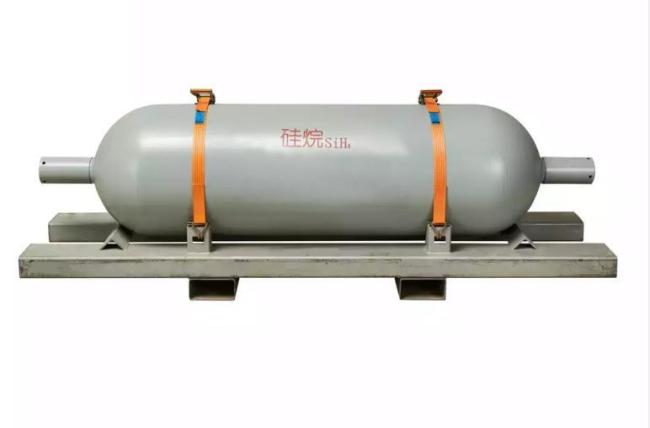

Detailed Photos
Gigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 GasGigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 Gas
Gigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 GasGigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 Gas

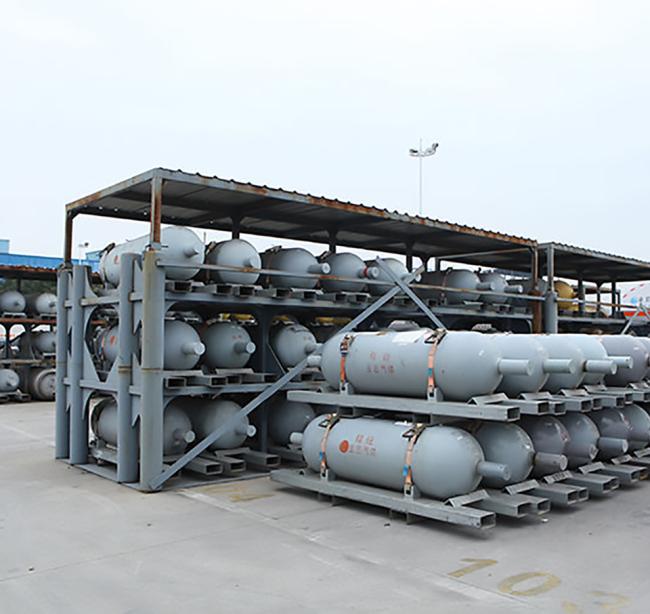

Packaging & Shipping


Cylinder Specifications Contents
Cylinder Capacity Valve Weight
47L DISS632 10 kgs
440L DISS632 120 kg

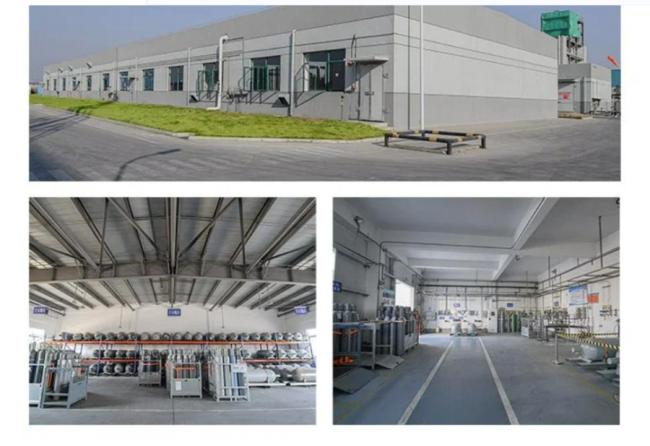

Company Profile

Gigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 Gas

Shanghai Kemike Chemical Co., Ltd is staffed by trained personnel, combine many years experience in Gas industry .We supply cylinder gas, electronic gas, etc ., and the gas holder, panel, valves and fittings and other equipment, parts and engineering services to our customers in China and worldwide; The products are involved in various industrial fields, such as semiconductor chip, solar cell, LED, TFT-LCD, optical fiber, glass, laser, medicine , etc., Our mission is to partner with our global customers to provide support, solutions and quality products that are innovative,reliable, and safe.
Our products mainly include: H2, O2, N2, Ar, CO2, propane, acetylene, helium, laser mixed gas,  SiH4, Sih2cl2, SiHCL3, SiCL4, NH3, CF4, NF3, SF6, HCL, N2O, doping mixed gas (TMB, PH3, B2H6) and other electronic gases.
Gigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 Gas
Gigh Quality 6n Industrial 99.999% Silane Gas of Silane Sih4 Gas
