Collapsible Welded Wire Mesh Pallet Cages 1000x800

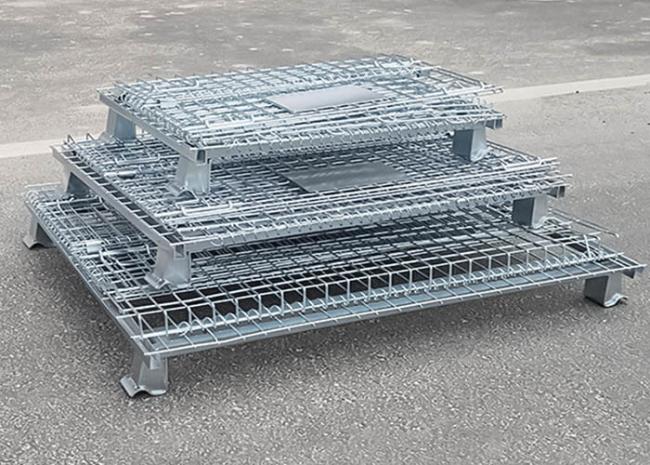

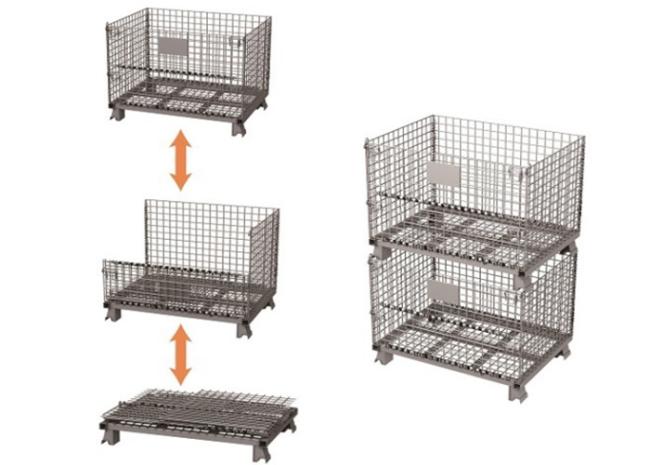

The collapsible pallet cage design can be folded down flat when not being used for easy storage or transport. The robust wire mesh construction enables products to be stored safely and identified quickly. The half-hinged drop down gate on the front comes as standard and allows the goods to be loaded and unloaded with ease – this is handy when goods are large and heavy.
Professional technology
1.Mesh anti-curve process.
2.Structure solid welding process.
3.Integrated trimming process.
Features
1. Easy to fold and easy to operate.
2. Maximize space utilization minimize transportation costs.
3. Considering the convenience of storage designing the semi open door and the fully open door structure.
4. It can meet the requirements of normal half-opening and full-opening. It can also meet the special requirements of integrated top cover.upper and lower opening type, matching tray.
Application
widely used in automobile parts,electronic and electrical industries, production storage and transportation links.
| Model |
External Size (mm) |
Internal Size (mm) |
Grid (mm) |
Load (Kg) |
Wire Diameter (mm) |
| B-1 | 1000*800*800 | 970*750*700 | 50*50 | 1300 | 6.0 |
| B-2 | 1000*800*800 | 970*750*700 | 50*50 | 1300 | 5.8 |
| B-3 | 1000*800*800 | 970*750*700 | 50*50 | 1000 | 5.6 |
| B-4 | 1000*800*800 | 970*750*700 | 50*100 | 1000 | 5.6 |
| B-5 | 1000*800*800 | 970*750*700 | 50*50 | 600 | 4.8 |
| B-6 | 1000*800*800 | 970*750*700 | 50*100 | 600 | 4.8 |
| B-7 | 1000*800*800 | 970*750*700 | 50*50 | 1000 | 5.8 |
Non-standard types and size can be customized.
