120kw Dc Ev Charger For Parking Lot In Vietnam
Solarsonc DC120 is a high-quality electric vehicle power charger designed for efficient and intelligent charging of electric vehicles. With its advanced technology and user-friendly features, it is the perfect solution for both personal and commercial use.
The DC120 model is the latest addition to Solarsonc's range of EV charging stations. It is designed to provide fast and efficient charging for electric vehicles, making it the perfect choice for busy roads and highways.
The DC120 is designed to withstand extreme temperatures, making it suitable for use in various weather conditions. It can operate efficiently in temperatures ranging from -30℃ to +55℃, ensuring reliable performance all year round.
The DC120 can be easily installed in a stand-up position, making it compact and space-saving. This makes it perfect for use in parking lots, garages, and other public areas, where space is limited.
The Solarsonc DC60 is suitable for a wide range of application scenes, including:
- Residential areas - The DC60 can be installed in residential areas, allowing electric vehicle owners to conveniently charge their vehicles at home.
- Commercial buildings - The DC60 is perfect for use in commercial buildings, such as shopping malls, hotels, and office complexes, providing a fast and efficient charging solution for employees, customers, and guests.
- Public parking lots - The DC60 can be installed in public parking lots, allowing for easy and convenient charging for electric vehicle owners on the go.
- Highways and rest stops - The DC60 is ideal for use on highways and rest stops, providing a reliable and fast charging solution for long-distance travelers.
With its high-quality materials, advanced technology, and versatile application scenes, Solarsonc DC60 is the ultimate EV DC charging solution for all electric vehicle owners.
Features:
1.Flexible Charging Port Options

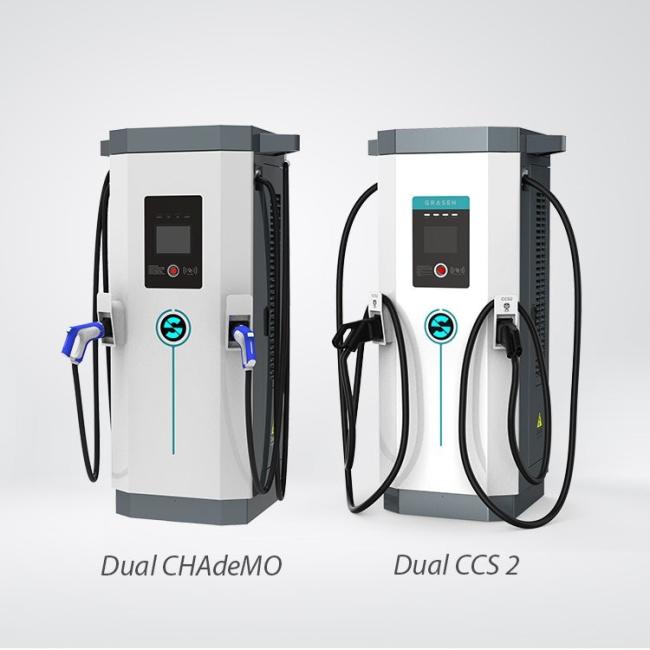

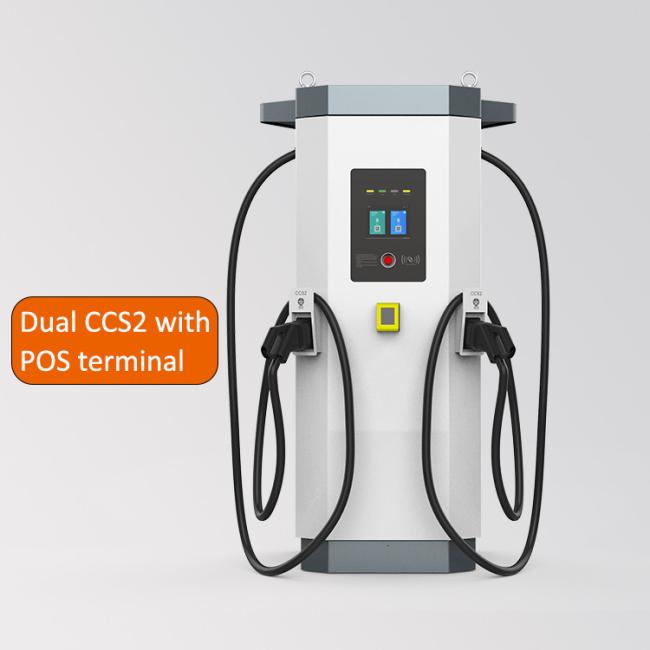

Support CCS1,CCS2,CHAdeMO or GBT connector.
Charging two vehicles simultaneously.
2.High-Speed Charging
Max output power 60kw~150kW,average charging time 30~60mins.
3.Easy Operating
White-labeled hardware and software,manage multi-
ple charging stations via cloud-based CSMS.
4. Safety &Reliable
CE Certified quality,IP55 rated for outdoor application,
with a standard 2-year warranty.
Technical Parameters:
| Power | 60kW/90kW/120kW/150kW/180kW/200kW | |
| Input | Input Voltage | 400V±15%/440V±15%/480V±15% |
| Input Voltage Type | TN-S | |
| Working Frequency | 45~65Hz | |
| Power Factor | ≥0.99 | |
| Efficiency | ≥94% | |
| Output | Rated Voltage | CHAdeMO 500Vdc;CCS 1000Vdc;GBT 1000Vdc |
| Max Output Current | CHAdeMO 125A;CCS 200A;GBT 250A | |
| Interface | Display | 8"LCD Touch Screen |
| Emergency Stop Button | Yes | |
| Payment | Mobile APP /RFID /POS | |
| Comm |
Network Connection |
4G(GSM or CDMA)/Ethernet /WIFI |
|
Communication Protocols |
OCPP1.6J or OCPP2.0 |
|
|
Working Environment |
Working Temperature | -30℃~+50℃ |
| Storage Temperature | -40℃~+70℃ | |
| Operating Humidity | <95%Non-Condensing | |
| Protection | IP55 | |
| Acoustic Noise | <60dB | |
| Cooling Method | Forced Air-Cooling | |
| Mechanica | Dimension(Wx Dx H) | 1006mm*640mm*1890mm |
| Weight | 310 ~420kg | |
| Cable Length | 5m or 7m | |
| Regulation | Certificate | TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2 |
| Charging Interface | DIN70121/DIN70122 /ISO15118 | |
By customizing your Solarsonc DC120EV Charger, you can:
- Enhance your brand image and visibility with personalized branding.
- Create a cohesive and professional look with color options.
- Provide a seamless and convenient charging experience for your customers with customized charging options.
- Maximize space and efficiency with customized installation options.
Packing and Shipping:
- Each DC Ev Charger unit is carefully packaged in a sturdy cardboard box.
- The box is designed to protect the product during transportation and storage.
- Inside the box, the charger is wrapped in protective foam to prevent any damage during shipping.
- Accessory cables and manuals are also included in the packaging.
- We offer worldwide shipping for our DC Ev Charger.
- Shipping costs and delivery times may vary depending on the destination.
- For domestic shipping, we use reliable courier services to ensure timely delivery.
- For international shipping, we work with trusted logistics partners to ensure safe and efficient transport.
- Customers will receive a tracking number to monitor the status of their shipment.
FAQ:
- Q: What is the brand name of this product?
A: The brand name is Solarsonc. - Q: What is the model number of this product?
A: The model number is DC120. - Q: Where is this product manufactured?
A: This product is manufactured in JIANGSU. - Q: What type of charger is DC120?
A: DC120 is a DC fast charger. - Q: What is the charging capacity of DC120?
A: DC120 has a charging capacity of 120kW.
