High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency
1560nm High Repetition Frequency High Power Femto-second Pulse Fiber Laser

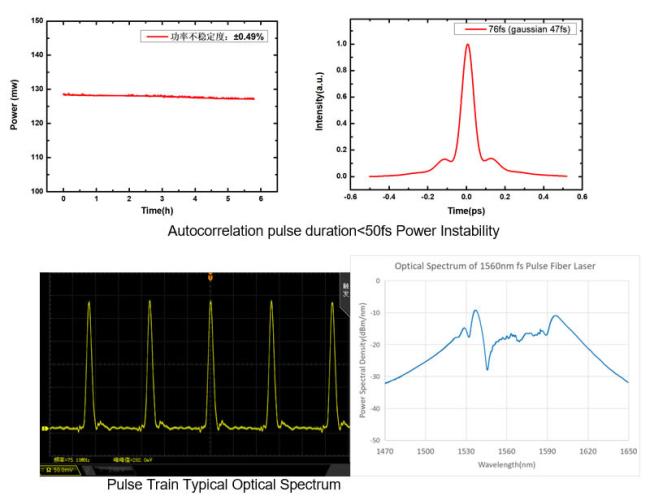

1. 1560nm Femtosecond Pulse Fiber Laser
E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The output laser pulse has the characteristics of extremely narrow duration and high pulse peak power. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.
Features
- Pulse duration<50fs
- 1560 nm wavelength
- Turn-Key Product
- All PM fiber Laser cavity
Applications
- Optical Frequency Comb
- Supercontinuum
- THz
- Ultra Fast Laser Research
| Parameters | Unit | Typical Value | Remarks | ||
| Center Wavelength | nm | 1560±10 | |||
| Spectrum Width | nm | 20 | 60 | ||
| Pulse Duration | fs | 50/100/200/500 | Customizable | ||
| Average Power | mW | 1~120 | Customizable | ||
| Power Instability | - | < ±1% | |||
| Repetition Rate | MHz | 80 | |||
| Repetition Rate Instability | Hz | < 100 | |||
| Pulse Energy | nJ | >1 | |||
| Polarization | - | Linear | Aligned to Slow Axis | ||
| Fiber Type | - | PM Fiber 0.5m | PM Fiber 2m | ||
| Fiber connector | - | FC/APC | |||
| Worm Up time | min | < 1 | |||
| General Parameters | Benchtop | Module |
| Control function | Push Button in Front Panel | RS232 Serial Port |
| Synchronous electrical signal port | SMA | SMA |
| Power Supply | AC100~240V, <30W | DC5V, <20W |
| Dimensions(mm) | 260(W)×280(D)×120(H) | 200(W)×121(D)×65(H) |
| Operation Temperature | 5 ~ 35°C | |
| Operation Humidity | 0~70% | |
| Ordering Information/Product Code | ||||||
| SMR-FSPL | WL(nm) | Pulse Duration(fs) | Power(mW) | Freq (MHz) | Fiber | Packaging |
| 1560 | 50/100/200/ 500 |
10/50/100 | 80/100 | SM PM |
B=Benchtop M=Module |
|

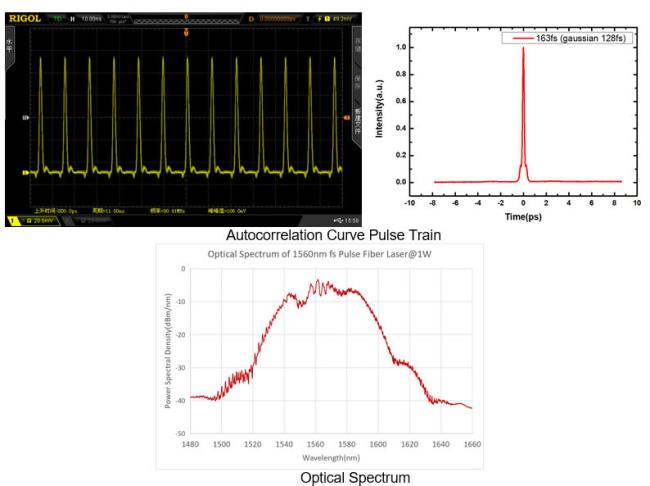

2. 1560nm High-Power Femtosecond Pulse Fiber Laser
E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The average power can be 1 Watt. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.
Features
- Pulse duration < 120fs
- Average Power 1W
- Turn-Key Product
- ALL PM fiber Laser cavity
Applications
- Optical Frequency Comb
- Supercontinuum Light
- THz Generation
- Ultra Fast Laser Research
| Parameters | Unit | Typical Value | Remarks |
| Center Wavelength | nm | 1560±10 | |
| Pulse Duration | fs | ≤120 | Customizable |
| Average Power | W | 1 | Customizable |
| Power Instability | - | < ±1% | 24h@25°C |
| Repetition Rate | MHz | 80~100 | Customizable |
| Pulse Energy | nJ | >10 | |
| Polarization | - | Line | Vertical |
| DOP | dB | >20dB | |
| Output | - | Free Space | |
| M2 | - | <1.2 | TEM00 |
| Beam Diameter | mm | ≤1.6 | * 1/e2 Waist Diameter |
| Divergence Angle | mrad | <1.5 | |
| Worm Up time | min | < 1 |
| General Parameters | Unit | Value | Remarks |
| Synchronous signal Port | - | SMA | |
| Operation temperature | °C | 5 ～ 45 | |
| Power Supply | - | AC 110~240VAC | Power <40W |
| Dimension | mm | 330(W)×398(D)×112(H) | Benchtop |
| Weight | kg | ≤5 |
| Ordering Information/Product Code | ||||||
| SMR-FSPL | WL(nm) | Pulse Duration(fs) | Power(mW) | Freq (MHz) | Fiber | Packaging |
| 1560 | 120 | 1000 | 80/100 | FS=Free Space | B=Benchtop | |

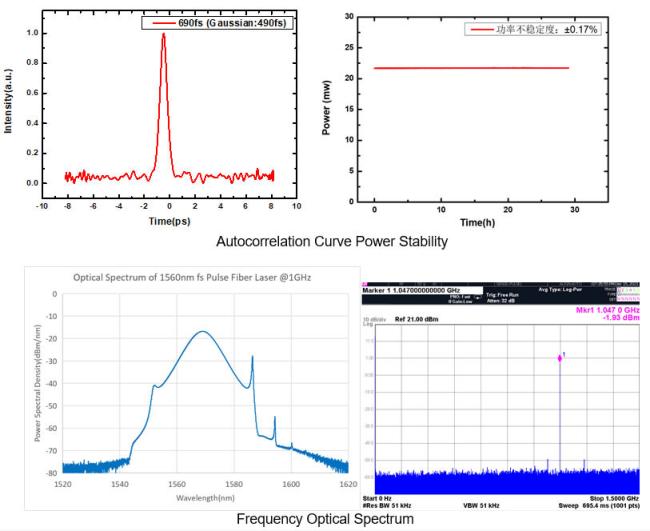

3. 1560nm High Frequency Femtosecond Pulse Fiber Laser
E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The laser has high repetition rate. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.
Features
- Pulse duration 50~500 fs
- Repetition Rate 200MHz~1GHz Customizable
- Turn-Key Product
- ALL PM fiber Laser cavity
Applications
- Optical Frequency Comb
- Supercontinuum Light
- THz Generation
- Ultra fast Laser Research
| Parameters | Unit | Typical Value | Remarks |
| Center Wavelength | nm | 1560±10 | |
| Spectrum Width | nm | 20 | |
| Pulse Duration | fs | 50 ~ 500 | Customizable |
| Average Power | mW | 1 ~ 200 | Customizable |
| Power Instability | - | < ±1% | |
| Repetition Rate | MHz | ≥ 200 | 200MHz~1GHz |
| Repetition Rate Instability | Hz | < 200 | |
| Pulse Energy | nJ | > 1 | |
| Polarization | - | Linear | Aligned to Slow Axis |
| Fiber Type | - | PM fiber, 1m | |
| Fiber connector | - | FC/APC | |
| Worm Up time | min | < 1 |
| General Parameters | Benchtop | Module |
| Control function | Push Button in Front Panel | RS232 Serial Port |
| Synchronous electrical signal port | SMA | SMA |
| Power Supply | AC100~240V, <30W | DC5V, <20W |
| Dimensions(mm) | 260(W)×280(D)×120(H) | 200(W)×121(D)×65(H) |
| Operation Temperature | 5 ~ 35°C | |
| Operation Humidity | 0~70% | |
| Ordering Information/Product Code | ||||||
| SMR-FSPL | WL(nm) | Pulse Duration(fs) | Power(mW) | Freq (MHz) | Fiber | Packaging |
| 1560 | 50/100/200/500 | 10/50/100 | 200/600/1000 | SM PM |
B=Benchtop M=Module |
|

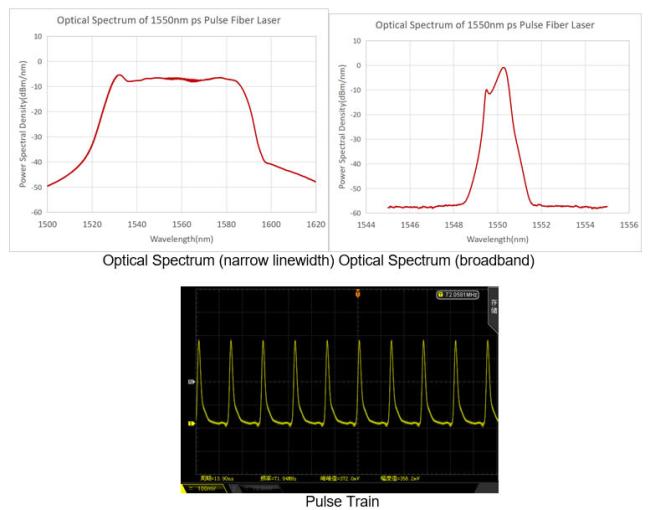

4.1560nm Picosecond Pulse Fiber Laser
Specific combination of pulse duration, repetition rate and average power is customizable.
Features
- Pulse Duration 1~100ps
- Center Wavelength 1530~1560 nm
- Turn-Key Product
- ALL PM fiber Laser cavity
Applications
- Optical Frequency Comb
- Supercontinuum Light
- THz Generation
- Ultra fast Laser Research
| Parameters | Unit | Typical Value | Remarks |
| Center Wavelength | nm | 1530~1560 | Customizable |
| Spectrum Width | nm | 0.5~50 | |
| Pulse Duration | ps | 1/10/50/100 | Customizable |
| Average Power | mW | 1~120 | Customizable |
| Power Instability | - | < ±1% | |
| Repetition Rate | MHz | 80 | Customizable |
| Repetition Rate Instability | Hz | < 100 | |
| Pulse Energy | nJ | >1 | |
| Polarization | - | Linear | Aligned to Slow Axis |
| Fiber Type | - | PM Fiber | |
| Fiber connector | - | FC/APC | |
| Worm Up time | min | < 1 |
| General Parameters | Benchtop | Module |
| Control function | Push Button in Front Panel | Push Button in Front Panel |
| Synchronous electrical signal port | SMA | SMA |
| Power Supply | AC100~240V, <30W | DC5V, <20W |
| Dimensions(mm) | 260(W)×280(D)×120(H) | 200(W)×121(D)×65(H)mm |
| Operation Temperature | 5 ~ 35°C | |
| Operation Humidity | 0~70% | |
| Ordering Information/Product Code | ||||||
| SMR-PSPL | WL(nm) | Pulse Duration(fs) | Power(mW) | Freq (MHz) | Fiber | Packaging |
| 1560 | 50/100/200/
500 |
10/50/100 | 80/100 | SM
PM |
B= benchtop
M=Module |
|
5.780nm Femtosecond Pulse Fiber Laser
The 780nm is generated by second-harmonic of 1560nm. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.
Features
- 100fs
- Turn-Key Product
- All PM fiber Laser cavity
Applications
- multiphoton
- two-photonabsorption
- UltrafastOptics
| Parameters | Unit | Typical Value | Remarks |
| Center Wavelength | nm | 780±10 | |
| Spectrum Width | nm | 20 | |
| Pulse Duration | fs | <100 | Customizable |
| Average Power | mW | >30 | Customizable |
| Power Instability | - | < ±1% | |
| Repetition Rate | MHz | 80 | Customizable |
| Repetition Rate Instability | Hz | < 100 | |
| Pulse Energy | nJ | > 0.4 | |
| Polarization | - | Linear | |
| Fiber Type | - | Free Space | |
| Fiber connector | min | < 1 |
| General Parameters | Benchtop | Module |
| Control function | Push Button in Front Panel | Push Button in Front Panel |
| Synchronous electrical signal port | SMA | SMA |
| Power Supply | AC100~240V, <30W | DC5V, <20W |
| Dimensions(mm) | 260(W)×280(D)×120(H)mm | 200(W)×121(D)×65(H)mm |
| Operation Temperature | 5 ~ 35°C | |
| Operation Humidity | 0~70% | |
| Ordering Information/Product Code | ||||||
| SMR-FSPL | WL (nm) | Pulse Duration(fs) | Power (mW) | Freq (MHz) | Fiber | Packaging |
| 780 | 50/100/200/500 | 1/10/50/ 100 |
80/100 | FS=Free Space | B= benchtop M=Module |
|
