100MHz 120MHz 200MHz 250MHz AOM Driver / RF Drivers / AOQ Drivers
100MHz, 120MHz, 200MHz, 250MHz AOM Drivers /RF Drivers, AOQ Drivers
RF drivers can generate RF signals at fixed or variable-frequencies. Specified waveforms could be produced by different modulated signals to meet the requirements of different acousto-optic components and determine how much an optical beam is modulated, deflected, or tuned. Our RF drivers are able to generate RF signal at 27.12MHz, 40.68MHz, 68MHz, 80MHz, 100MHz, 120MHz, 200MHz, 250MHz, 300MHz and even higher, with RF power up to 120W. A variety of operating modes are available including FPS, PPK, R05 and A05 (Analog). Acousto-optic variable-frequency series drive of frequency shifter, deflector and filter, can output RF signal with high precision and broad frequency range, and support digital control, analog control, etc. PC software is equipped with which users can set the frequency and power at will. The frequency sweeping and other functions can also be set (TA series). For high-speed frequency conversion applications, it is capable of fast frequency switching (TB series). These drivers are matched with our AOMs and other acousto-optic components.
1. Fixed-frequency series product number: STCT-CARD-as-f-vpt-bme-c
| Series(as) | RF(f) | Supply Power(v) | Output Power(p) | Cooling(t) | Channel(b) | Mode(m) | Function(e) | RF Connector(c) |
| FA (Fixed-frequency series A) |
40.68 MHz 68 MHz 80 MHz |
15D (15 VDC) 24D (24 VDC) |
20 W 25 W |
C (Conduction-Cooled) |
1 | F (FPS) P (PPK) A (A05) R (R05) M (M05) |
C (Common) H (TTL_HIGH = RF on) L (TTL_HIGH = RF off) |
AF (SMA-F) |
| FD (Fixed-frequency series D) |
40.68 MHz 68 MHz 80 MHz 100 MHz 110 MHz 120 MHz ... |
12D (12 VDC) 15D (15 VDC) 24D (24 VDC) |
5W | C (Conduction-Cooled) A (Air-Cooled) W (Water-Cooled) |
1 | F (FPS) A (A05) D (Digital) |
||
| 20W | ||||||||
| 40W | ||||||||
| FB (Fixed-frequency series B) |
27.12 MHz 40.68 MHz 68 MHz 80 MHz |
24D (24 VDC) 28D (28 VDC) |
50W | C (Conduction-Cooled) A (Air-Cooled) W (Water-Cooled) |
1, 2 | F (FPS) A (A05) D (Digital) |
NF (BNC-F) |
|
| 100W | ||||||||
| FE (Fixed-frequency series E) |
200 MHz 250 MHz 300 MHz ... |
24D (24 VDC) |
2.5 W | C (Conduction-Cooled) |
1 | D (Digital) A (A05)* DA (Digital+Analog) |
AF (SMA-F) |
*Analog control voltage can be requested: A5: 0-5 V,A1: 0-1 V
Typical specifications:
| Working Frequency | Maximum RF Power | Rise/Fall time |
| 27.12 MHz | 100 W | <150 ns |
| 40.68/68/80 MHz | 15/20/25 W | <35 ns |
| 200/250 MHz | 2.5 W | <6 ns |
2. Variable-frequency series product number: STCT-CARD-as-f-vpt-bme-c
| Series(as) | RF(f) | Supply Power(v) | Output Power(p) | Cooling(t) | Channel(b) | Mode(m) | Function(e) | RF Connector(c) |
| TA (Variable-frequency series A) |
60~120 MHz ... |
24D (24 VDC) |
0.5~4 W | C (Conduction-Cooled) |
1 | Programmable frequency | C (Common) ... |
AF (SMA-F) AM (SMA-M) |
| TB (Variable-frequency series B) |
70~120 MHz ... |
24D (24 VDC) |
0.5~4 W | C (Conduction-Cooled) |
1 | A (A05)* D (Digital) |
Px (channel) |
AF (SMA-F) |
| TE (Variable-frequency series E) |
70~120 MHz | 24D (24 VDC) |
0.5~4 W | C (Conduction-Cooled) |
1 | Voltage control 0~10V D (Digital) |
C (Common) ... |
AF (SMA-F) CF (SMC-F) |
*Analog control voltage can be requested: A10: 0-10 V,A5: 0-5 V,A1: 0-1 V
Typical specifications:
| Working Frequency | RF Power* | Working Mode*** | Switching Speed |
| 60~120 MHz | 4 W | Programmable frequency** | ~us |
| 70~120 MHz | 4 W | Voltage control 0~10 V, Digital** | ~50ns |
- *The output power of the product is matched according to the load
- ** Supporting related host computer software and control instruction set
- ***Special control methods can be customized
3. Detailed Specifications of Driver STCT-CARD-TA1-060-100-24D04C-1DA5H-AF
| Min. | Typ. | Max. | Unit | |
| Number of channels,RF output | 1 | Channel | ||
| Frequency Range CH1 | 60 | 100 | MHz | |
| Frequency stability | ±1 | Ppm/°C | ||
| Frequency accuracy | ±1 | kHz | ||
| Output Power1 CH1 | 2 | Watt | ||
| VSWR | 1.5/1 | |||
| Rise-time(10%-90%) | 2.5 | 6 | ns | |
| Fall-time(90%-10%) | 2.5 | 6 | ns | |
| Trigger frequency2 | DC | 1 | 10 | MHz |
| Extinction ratio | 45 | 50 | dB | |
| Harmonic Distortion | -20 | dBc | ||
| Output impedance | 50 | W | ||
| Analog input | 0 | 5 | V | |
| Digital control | Standard TTL (V_L<0.8V, V_H>2.0V) | |||
| Communication | RS232 (DB9) | |||
| Supply power | 24VDC, <0.8A | |||
| Operating temperature | +25 to +50°C | |||
- 1 The factory power is optimally debugged according to the supporting load.
- 2 With internal and external control functions, the internal control trigger frequency is up to 2MHz.
4. Detailed Specifications of Driver STCT-CARD-TA1-040-24D04C-1DA5H-AF
| Min. | Typ. | Max. | Unit | |
| Number of channels,RF output | 1 | Channel | ||
| Frequency Range CH1 | 40 | MHz | ||
| Frequency stability | ±1 | Ppm/°C | ||
| Frequency accuracy | ±1 | kHz | ||
| Output Power1 CH1 | 1 | Watt | ||
| Output Power Ref | 0.5 | 1 | Vpp | |
| VSWR | 1.5/1 | |||
| Rise-time(10%-90%) | 2.5 | 6 | ns | |
| Fall-time(90%-10%) | 2.5 | 6 | ns | |
| Trigger frequency2 | DC | 1 | 10 | MHz |
| Extinction ratio | 45 | 50 | dB | |
| Harmonic Distortion | -20 | dBc | ||
| Output impedance | 50 | W | ||
| Analog input | 0 | 5 | V | |
| Digital control | Standard TTL (V_L<0.8V, V_H>2.0V) | |||
| Communication | RS232 (DB9) | |||
| Supply power | 24VDC, <0.8A | |||
| Operating temperature | +25 to +50°C | |||
- 1 The factory power is optimally debugged according to the supporting load.
- 2 With internal and external control functions, the internal control trigger frequency is up to 2MHz.

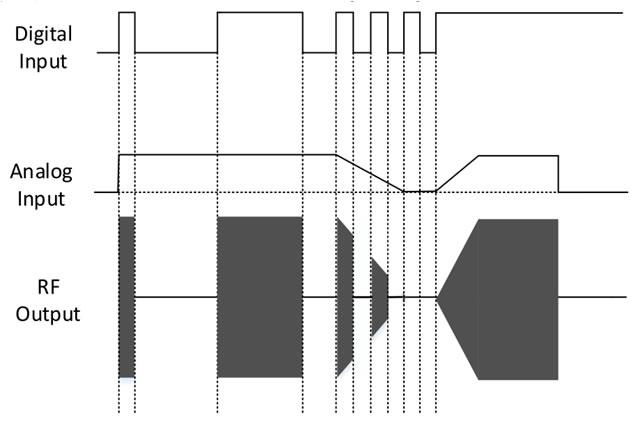

The control mode can be changed according to customer needs:

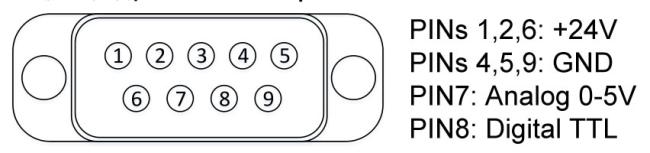

Inferface definitions:

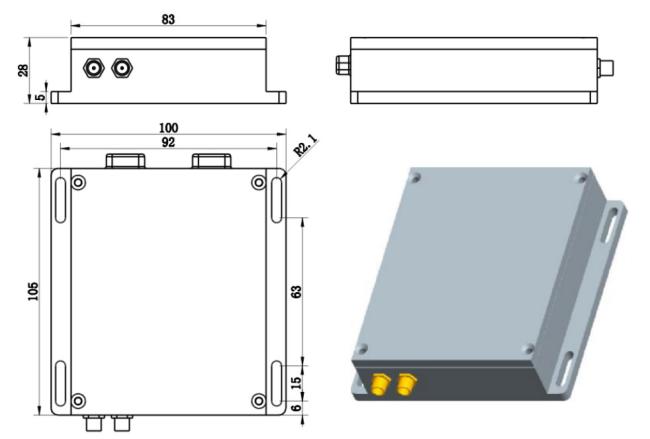

Dimensions:
