Wavelength 10.6mm Laser Articulated Arms For Beam Delivery
Delivery Time:
Stock
Brand:
Sintec Optronics
Product Description
Wavelength 10.6mm, Articulated Arms for Beam Delivery
The articulated arm delivery system is used in conjunction with various types of CO2, YAG, and other wavelength laser systems as a means of delivering the laser energy from the laser launch to the process point. A six or seven joint articulated arm for the delivery of laser energy. Attachment to the laser is accomplished with a laser mount plate and various coupling devices, and process end is attached to the hand piece by the use of an adapter at the end of the arm.

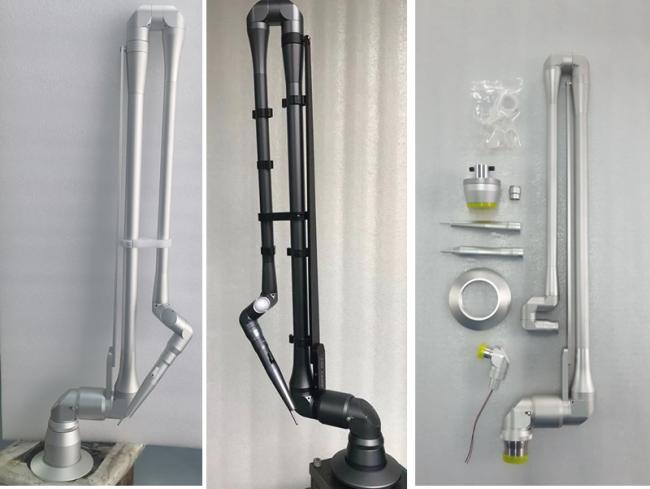

STTL Series Articulated Arms
| Part number | STTL-10.6-7-14-1415 |
| Laser wavelength (mm) | 10.6 |
| Number of joints | 7 |
| Max. beam aperture (mm) | Φ14 |
| Extension length (mm) | 1415=80+108+611+51+441.5+39+39+45.5 |
| Optical path deviation (mm) | ±0.3 |
| Dimension of mirrors (mm) | Φ25.4x3 (4pcs), Φ18x3 (3pcs) |
| Total reflectivity | ≥85%@10.6mm |
| Mount connection (mm) | M20x1 |
| Colour | Silver; Blue-black |
| Tip | F=50mm; F=100mm |
Accessories (options):
SSZ Series Articulated Arms
1. Articulated Arms for Nd:YAG Laser
| Part number | SSZ-1064/532-7-17-1635 | SSZ-1064-7-17-1523 |
| Laser wavelength | 1064+532nm | 1064nm |
| Number of joints | 7 | 7 |
| Max. beam aperture | Φ17mm | Φ17mm |
| Extension length (mm) | 1635=219+108+630+48+482+48+48+52 | 1523=90+109+616+52+500+52+52+52 |
| Optical path deviation | ±0.3mm | ±0.3mm |
| Dimension of mirrors | Φ25x3mm | Φ25x3mm |
| Reflectivity | 99.6%@1064nm, 98%@532nm | 99.6%@1064nm, 98%@532nm |
| Mount connection | M22x1.5mm | M22x1.5mm |
| Part number | SSZ-1064/532-7-17-1838 | SSZ-1064/532-7-17-1755 |
| Laser wavelength | 1064+532nm | 1064+532nm |
| Number of joints | 7 | 7 |
| Max. beam aperture | Φ17mm | Φ17mm |
| Extension length (mm) | 1838=377+93+670+52+515+43+43+45 | 1755=285+86+653+48+535+48+52 |
| Optical path deviation | ±0.3mm | ±0.3mm |
| Dimension of mirrors | Φ25x3mm | Φ25x3mm |
| Reflectivity | 99.6%@1064nm, 98%@532nm | 99.6%@1064nm, 98%@532nm |
| Mount connection | M22x1.5mm | M22x1.5mm |
2.Articulated Arms for CO2 Laser
| Part number | SSZ-10.6-7-17-1458 | SSZ-10.6-7-17-1647 |
| Laser wavelength | 10.6um | 10.6um |
| Number of joints | 7 | 7 |
| Max. beam aperture | Φ17mm | Φ17mm |
| Extension length (mm) | 1458=89+107+630+48+436+48+48+52 | 1647=186+93+670+52+515+43+43+45 |
| Optical path deviation | ±0.3mm | ±0.3mm |
| Dimension of mirrors | Φ25x3mm | Φ25x3mm |
| Reflectivity | 98%@10.6um | 98%@10.6um |
| Mount connection | M20x1mm | M20x1mm |
