Fiber Fusion Splicer, PM Polarization Maintaining Fiber/Specialty Fiber/Ribbon Fiber
1. STXH-S-27LDF Specialty Fiber Fusion Splicer
FEATURES

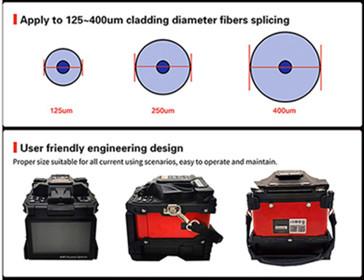

- Applicable to cladding diameter 125~400μm fibers
- Accurate alignment, world standard fusion loss
- 14s splicing time, 24s heating time for 40/60mm tube
- Applicable to different types fibers (SM/MM/DS/NZDS)
- Ruggedized body, waterproof, anti-dust, anti-shock
- Easy to maintenance, easy to replace the electrodes
- USB port for software upgrading, records exporting
- Support 4000/100 groups fusion records/fusion images
- Comply with CE/Rohs international standard
| Model | STXH-S27-250 | STXH-S27-400 | |
| Alignment method | Clad to clad | ||
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) | ||
| Cladding diameter | 125/250um | 400um | |
| Coating diameter | 250～1000µm | ||
| Splicing program | 40 groups | ||
| Operation mode | Manual/ Automatic | ||
| Auto-heating | Available | ||
| Typical splice time | 14 seconds | ||
| Typical heating time | 24 seconds for 60mm/40mm heating tube | ||
| Fiber magnification | X or Y single fiber image 125X,X and Y double image 62.5X | ||
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor | ||
| Data storage | 4000 groups data records and 100 group images | ||
| Loss evaluation | Available | ||
| Tension test | 1.8～2.2N | ||
| Interface | GUI menu interface, easy for operation | ||
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V | ||
| Electrode life | ＞3000 times discharge (125um),＞1000 times discharge (＞125um) | ||
| Terminals | Micro-USB 2.0 port, for software upgrading, records exporting | ||
| Operating condition | Altitude:0-5000m, Humidity:0-95%, Temperature: -10℃～+50℃; Wind: max 15m/s | ||
| Dimension/Weight | 155mm (L)×144mm (W)×155mm (H) /2.3kg (including battery) | ||

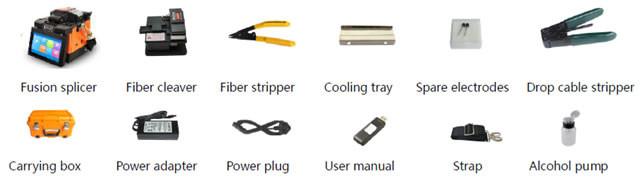

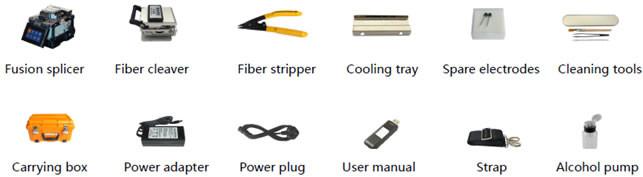

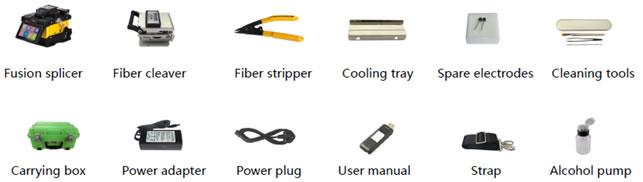

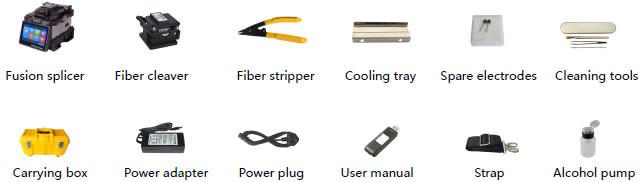

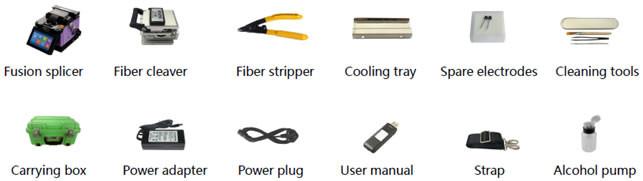

Accessories
2. STXH-S-12PM Polarization Maintaining Fiber Fusion Splicer
Features
- Core to core alignment, low splicing loss

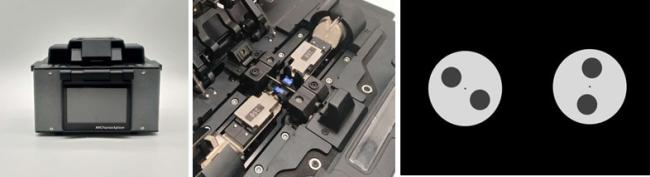

- End view and Profile observation and alignment
- Arc automatic calibration and splicing
- PM fiber 45 and 90 degree alignment
- Applicable to variety fibers splicing, such as Panda, bow-tie and elliptical fiber
| Applicable fiber | MMF(ITU-G651),SMF(ITU-G652), NZDS(ITU-G655),DS(ITU-G653), |
| PM fiber | Panda fiber and other type PMF |
| Cladding diameter | 80～150µm |
| Coating diameter | 160～900µm |
| Typical splice loss | SMF:0.02dB MMF:0.01dB NZDS,DS:0.03dB,PMF 0.05dB |
| Extinction ratio | 32dB(PANDA) |
| Cleaved length | 10～16mm(coating diameter＜250um); 16mm(coating diameter: 250-1000um) |
| Alignment method | Profile and End face alignment |
| Splicing program | 40group |
| Heating program | 20group; Automatic heating |
| Operation mode | Manual/ Automatic |
| Typical splice time | Unpolarized fiber: 15seconds; PM Fiber:45seconds |
| Typical heating time | 30 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber Identification | Automatically Identify SMF,MMF,NZDS,DS,PANDA PMF |
| Fiber magnification | 180X (X or Y view), 90X (X and Y view) |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating condition | 0 ~ 40℃ Not frosted |
| Dimension/Weight | 260mm(W)×202mm(D)×170mm(H) /5.1kg |

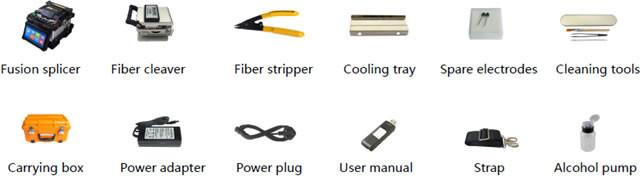

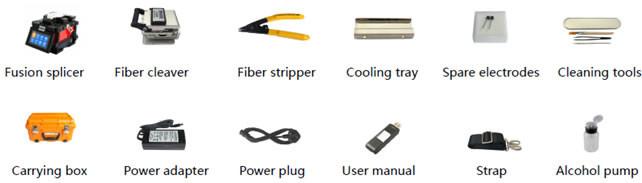

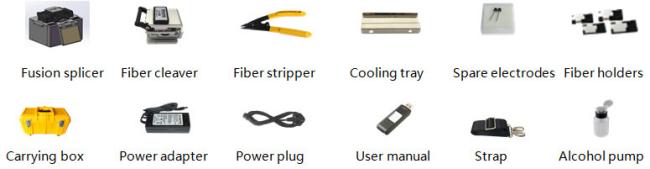

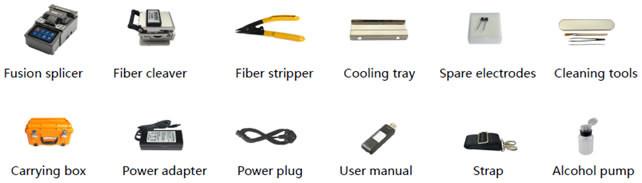

Accessories

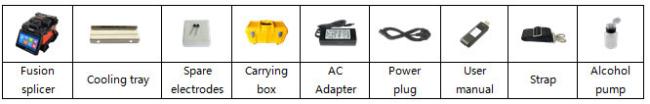

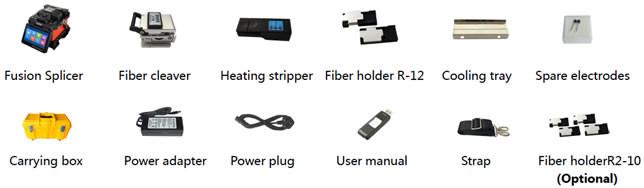

3. STXH-X-950 Ribbon Fiber Fusion Splicer

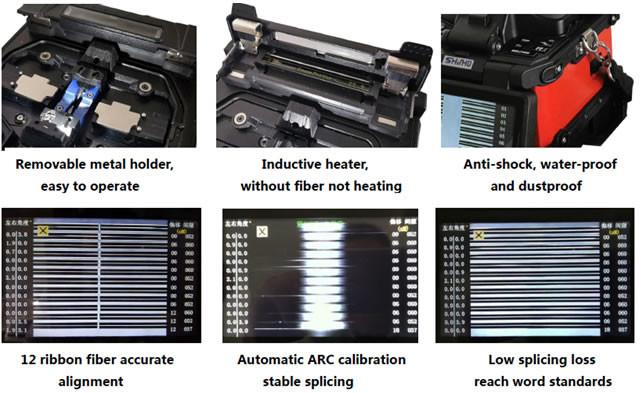

FEATURES
- Applicable to 2-12 ribbon fiber splicing
- Accurate alignment, world standard fusion loss
- 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
- Applicable to different types fibers (SM/MM/DS/NZDS)
- Ruggedized body, waterproof, anti-dust, anti-shock
- Pluggable Li-battery, support separate charging
- Easy to maintenance, easy to replace the electrodes
- USB port for software upgrading, records exporting
- Support 4000/100 groups fusion records/fusion images
- Comply with CE/Rohs international standard
Specifications
| Alignment method | Clad to clad |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Fiber cores quantity | Single core,2-12 cores |
| Coating diameter | 250～400μm |
| Typical splice loss | SM: 0.05dB；MM: 0.02dB；DS: 0.08dB；NZDS: 0.08dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 20 seconds |
| Typical heating time | 1-2 cores 26 seconds,4-12 cores 40 seconds |
| Fiber magnification | 25X |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records and 100 group images |
| Loss evaluation | Available |
| Tension test | 1.8～2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 150 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 3000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s |
| Dimension/ Weight | 155mm(L)×144mm (W)×155mm (H) /2.3kg (incuding battery) |

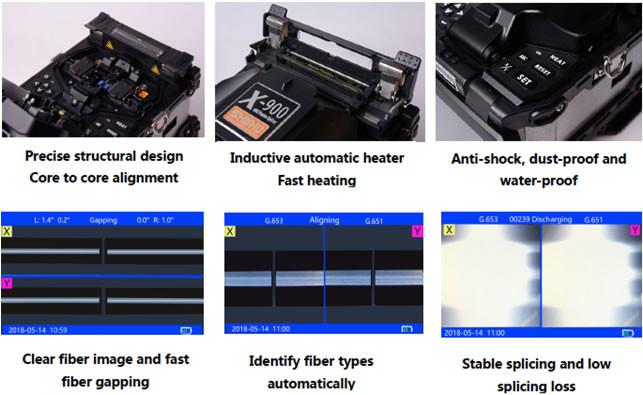

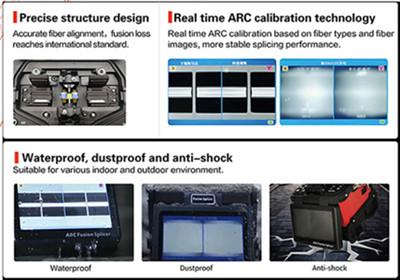

4. STXH-X-900 Multi-function Fusion Splicer

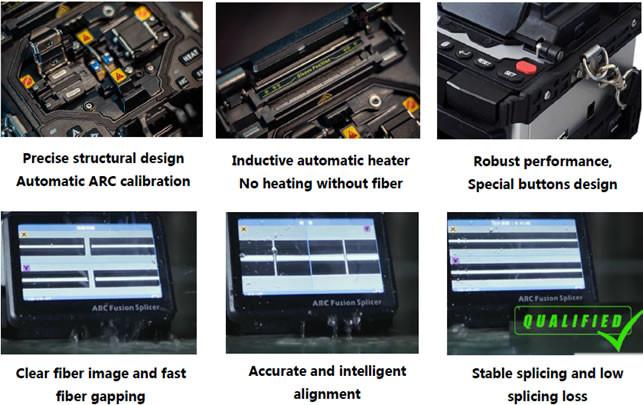

FEATURES
- 6 motors accurate core to core alignment
- Identify fiber types(SM/MM) automatically
- 6 seconds splicing & 18 seconds heating
- Automatic & real-time ARC calibration
- Industrial quad-core CPU with 30% power saving
- Real-time heating temperature monitoring
- Anti-shock, anti vibration, dustproof & waterproof
- Apply to 250um/0.9mm/2.0mm/3.0mm fibers
Specifications
| Alignment method | 6 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 300 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/ Weight | 156mm(L)×141mm(W)×156mm (H) /2.45kg (incuding battery) |

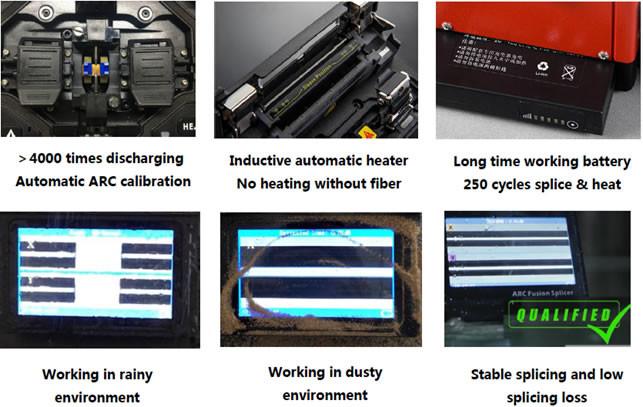

5. STXH-S-16 Handheld FTTx Fusion Splicer

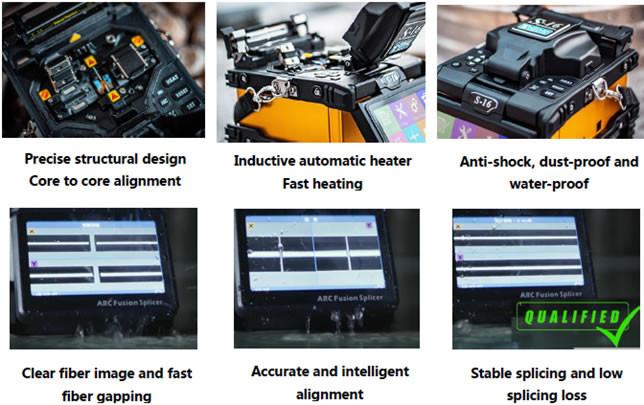

FEATURES
- 4 motors accurate core to core alignment
- 6 seconds splicing & 18 seconds heating
- Automatic & real-time ARC calibration
- Industrial quad-core CPU, faster & more stable
- Real-time heating temperature monitoring
- Anti-shock, anti vibration, dust-proof & waterproof
- Apply to 250um/0.9mm/2.0mm/3.0mm fibers etc.
- Suitable for medium backbone, FTTx projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension / Weight | 160mm (L) x 136mm (W) x 140mm (H) / 2.20kg (including battery) |
6. STXH-X-97 Handheld FTTx Fusion Splicer
FEATURES
- Small and light, easy to carry
- 4 motors accurate core to core alignment
- 7 seconds splicing & 26 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Apply to bare fiber, pigtails, drop cable etc.
- Suitable for FTTx, FTTH, CATV projects etc.
Specfications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimensions / Weight | 149mm (L) x 120mm(W) x 127mm(H) / 1.90kg (including battery) |

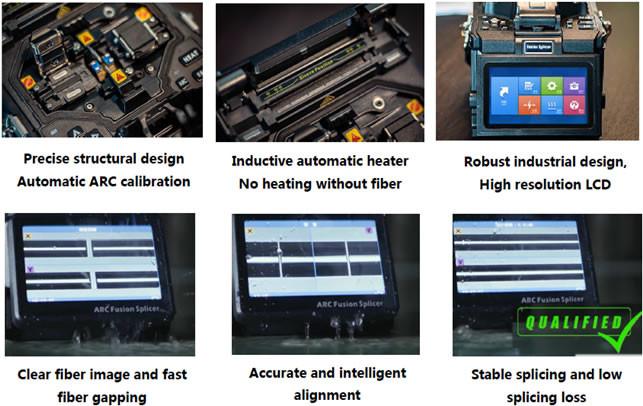

7. STXH-X-800 Handheld FTTx Fusion Splicer
FEATURES
- 4 motors accurate core to core alignment
- 6 seconds splicing & 20 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Anti-shock, anti vibration, dust-proof & waterproof
- Apply to bare fiber, pigtails, drop cable etc.
- Suitable for FTTx, FTTH, CATV, MAN projects etc.
Specificaitons
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 20 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimensions / Weight | 157mm(L) x 136mm(W) x 140mm(H) / 2.10kg (including battery) |

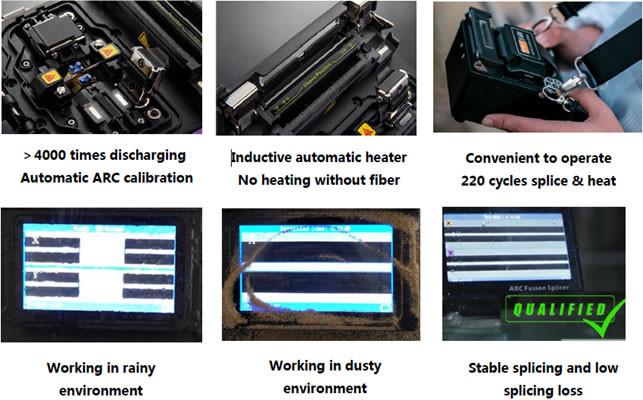

8. STXH-X-600 Handheld FTTx Fusion Splicer
FEATURES
- Small and light, easy to carry
- 4 motors accurate core to core alignment
- 7 seconds splicing & 26 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Apply to bare fiber, pigtails, drop cable etc.
- Suitable for FTTx, FTTH, CATV projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 4400mAh Li-battery, 220 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 200mm(L) x 123mm(W) x 95mm(H) /1.60kg (including battery) |

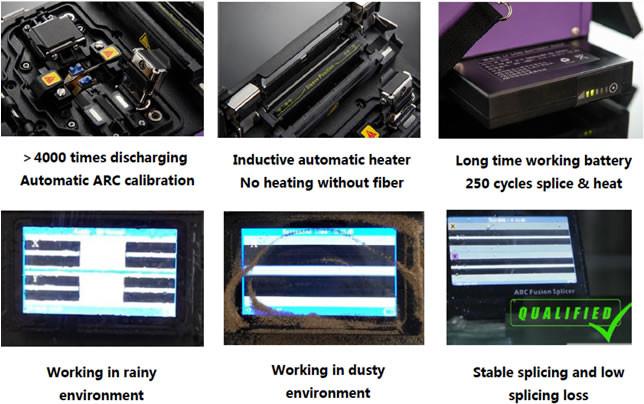

9. STXH-X-700 Handheld FTTx Fusion Splicer
FEATURES
- 4 motors accurate core to core alignment
- 6 seconds splicing & 20 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Anti-shock, anti vibration, dust-proof & waterproof
- Apply to bare fiber, pigtails, drop cable etc.
- Suitable for FTTx, FTTH, CATV, MAN projects etc.
Specificaitons
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 20 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 160mm(L) x 136mm(W) x 140mm(H) / 2.10kg (including battery) |
10. STXH-X-500 Handheld FTTx Fusion Splicer
FEATURES
- Small and light, easy to carry
- 4 motors accurate core to core alignment
- 7 seconds splicing & 26 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Apply to bare fiber, pigtails, drop cable etc.
- Suitable for FTTx, FTTH, CATV projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 149mm(L) x 120mm(W) x 127mm(H) / 1.90kg (including battery) |
11. STXH-A3 Handheld FTTx Fusion Splicer
FEATURES
- Small and light, easy to carry
- 4 motors accurate core to core alignment
- 7 seconds splicing & 26 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Apply to bare fiber, pigtails, drop cable etc.
- Suitable for FTTx, FTTH, CATV projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～+50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 149mm(L) x 120mm(W) x 127mm(H) /1.90kg (including battery) |
Similar Products
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
Company
Wuhan Sintec Optronics Co., Ltd,
Location
Sintec Industrial Park, Optics Vally of China, Wuhan, Hubei Province, PR China
Contact Person
Steven
