Low-power/Medium-power/High Sensitivity Laser Power Meters, Laser Energy Meters

SHY series laser power meters, with the core component of high-quality calorimetric probe as the starting point, are simple & easy to use, reliable via using the latest embedded technology design. This laser power meter with display head has a variety of specific probes to choose from, which is suitable for handheld measurement, but also suitable for online monitor of the running machines.

Probe:

• Fast response (10W probe with display head 0-95% response time 1.5 seconds)
• Wavelength range: 0.19-1um, NIST tracer correction, compact shape, built-in fan, and no external power supply optimized heat sink design
• High load power (10W probe: continuous 10W, intermittent maximum 20W)
• Square probe, easy to integrate, can be easily installed into the equipment
• Optical fittings mounting thread, omnidirectional adjustment support

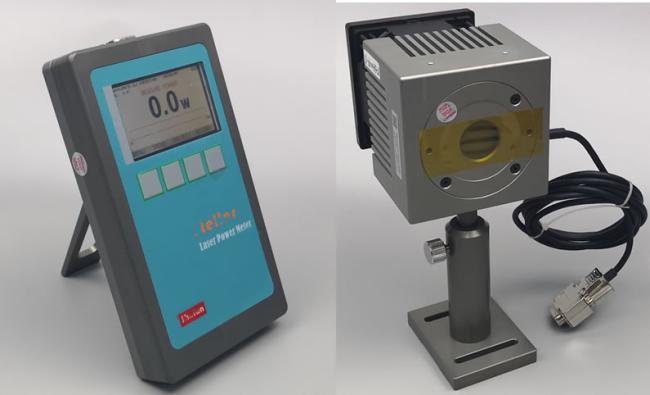

Display head:

• High resolution color TFT screen, two-stage backlight, USB port for charging power, and data upload
• Convenient after sale, short cycle
• Provide standard RS232 interface output lithium rechargeable battery, power failure working time >=14 hours all metal body, light weight
• No need to adjust zero (using suspension self-stabilizing zero circuit)
• Automatic range switching (AutoScale)
• User - defined correction coefficient, patent adjustable Ac algorithm toaster protection
• Ideal partner for laser research and development (real-time monitoring power, abnormal laser shutdown)
• Non-volatile data recording, up to 10,000 points high precision 12bit real-time
• Power waveform diagram display, time adjustable
• Easy to use menu and shortcut key mechanism
• Anti-electromagnetic interference

Applications:

• Portable equipment on-line measurement
• Laser marking, cutting, drilling
• Welding, light control, machine testing
• Power monitoring control compensation

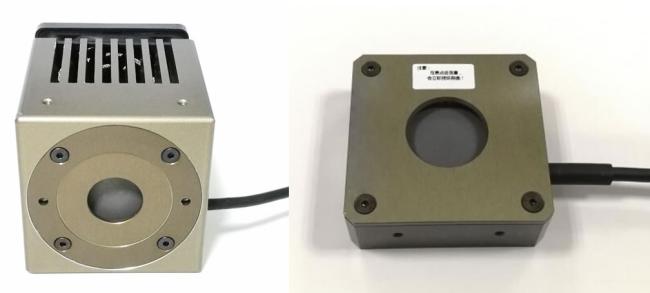

1. Low-power Laser Power Meter

• * The detector is centrally illuminated at 50% of the effective surface.
• ** The damage threshold also depends on the power level.

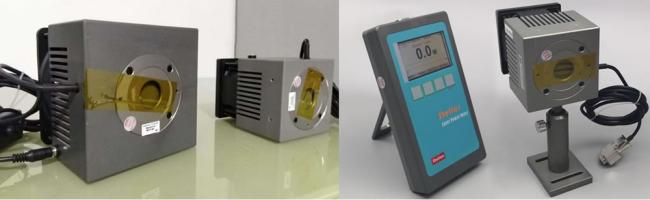

2. Medium-power Laser Power Meter

• * The detector is centrally illuminated at 50% of the effective surface.
• ** The damage threshold also depends on the power level.

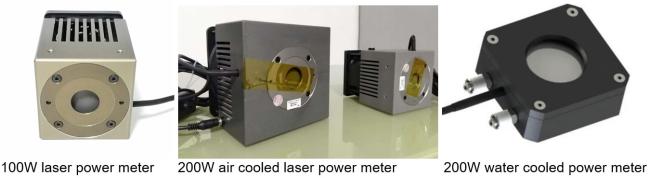

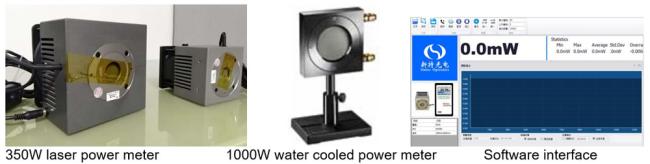

3. Kw Level Water-cooled Laser Power Meter

• * The detector is centrally illuminated at 50% of the effective surface.
• ** The damage threshold also depends on the power level.

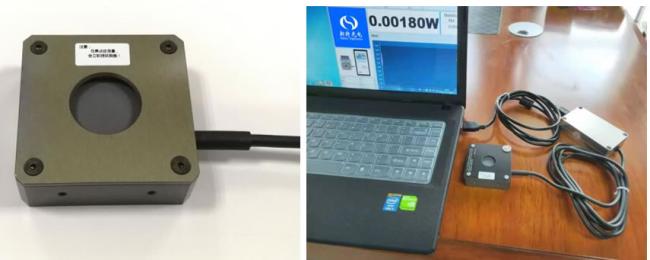

4.Serial/USB Laser Power Meter

• * The detector is centrally illuminated at 50% of the effective surface.
• ** The damage threshold also depends on the power level.

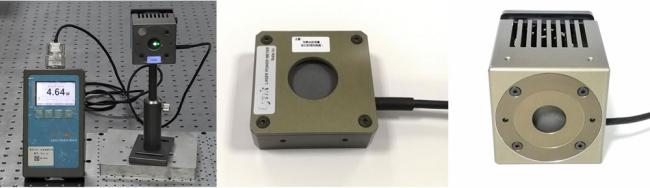

5. High Sensitivity Laser Power Meter

High sensitivity series laser power meters have many advantages like affordable, high precision, suitable for FPC cutting, drilling machine online measurement, high precision marking, solar cell equipment (scratching/ablation/back passivation/punching/etching/sintering, etc.).

• * The detector is centrally illuminated at 50% of the effective surface.
• ** The damage threshold also depends on the power level.

6.SHY Series Laser Energy Meter

• * The detector is centrally illuminated at 50% of the effective surface.
• ** The damage threshold also depends on the power level.
