Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

Price Negotiable
Delivery Time: Stock
Brand: Sintec Optronics
Product Description

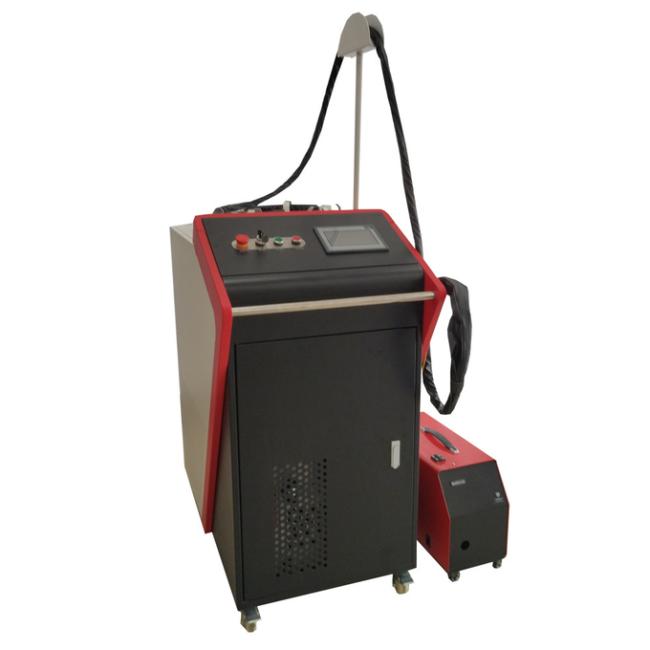

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W Metal Laser Welding Machine



Features

1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.

2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.

3. This laser equipment can be used for metal cleaning, rust removal, welding and cutting.

4. Redlight positioning, makes the work position is more accurate and beautiful.

5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.

6. Built-in high-efficiency chiller, the whole machine has a compact structure and weighs only 160KG after packing with auto wire feeder.

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 0

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 1

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 2

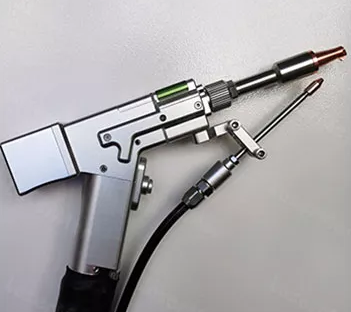

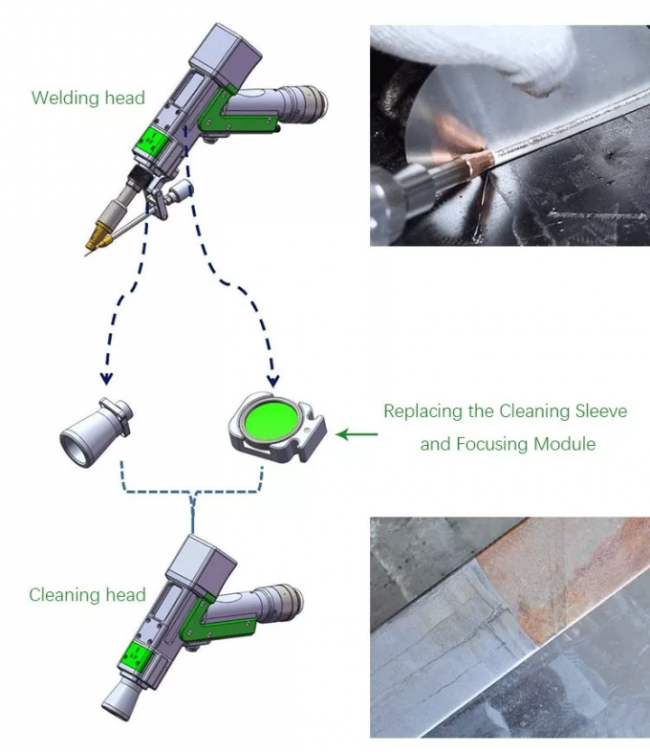

Three type heads

Three types gun



3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 3

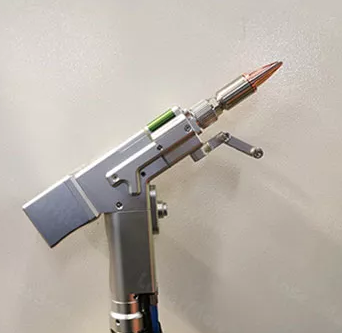

Laser welding head

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 4







Laser cutting head

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 5

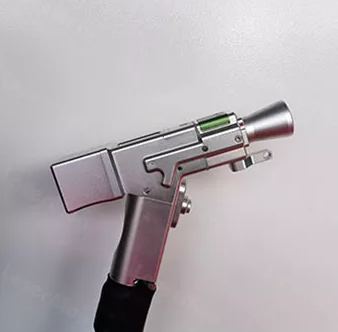

Laser cleaning head



Parameters



Model STW013-1000W STW013-1500W STW013-2000W
Average output power 1000W 1500W 2000W
Operation Mode CW/Modulate
Max Modulation Frequency 5KHz
Output Power Stability ±3%
Red Laser Yes
Terminal Type QBH
Beam Quality 1.3M2 1.5M2 1.8M2
Polarization Random
Delivery Cable Length 20M
Power Supply 1 PH 220V five wire connect
Control Mode RS232/AD
Power Consumption 4KW 5KW 6KW
Cooling Water Cooled
Operation Temperature 10-40 degree
Max Depth of welding 3mm 4mm 5mm
Machine Weight 250Kg 250Kg 260kg
Package size 1230*730*1440mm

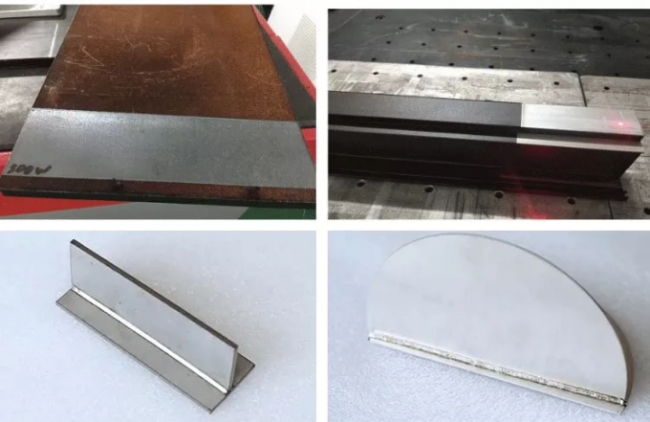

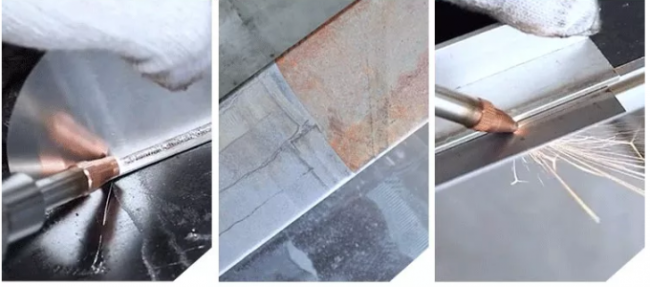

Samples

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 6

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 7
