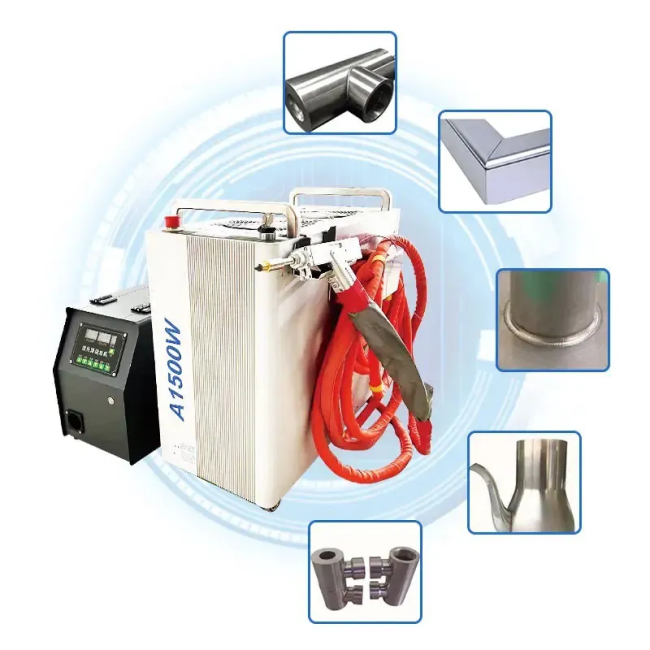

Handheld Fiber CNC Laser Welding Machine For Aluminum Galvanized Plate Steel
Delivery Time:
Stock
Brand:
Sintec Optronics
Product Description
Introduction
1. The output power is 1500W, and the welding penetration reaches 4mm;
2. Based on 976nm pump technology, high electro-optical conversion efficiency ≥42%;
3. Single pendulum welding head with adjustable welding width;
4. The weight of the whole machine is less than 60kg, compact design, small volume;
5. Unique air-cooled design, low power consumption, energy saving and environmental protection, power supply 220VAC-18A;
6. Triple protection design, built-in air pressure detection device.
PRODUCT PARAMETERS
| Model | STW003-1000M | STW003-1500M |
| Average output power | 1000W | 1500w |
| Operation Mode | CW/Modulate | |
| Max Modulation Frequency | 5KHz | |
| Polarization | Random | |
| Delivery Cable Length | 8M | |
| Power Supply | 1 PH 220V/50/60hZ | |
| Power Consumption | 4KW | 5KW |
| Cooling | Air Cooled | |
| Operation Temperature | 10-40 degree | |
| Max Depth of welding | 3mm | 4mm |
| Machine Weight | 62Kg | |
