Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel
Small 600*400mm 1000W Mini Fiber Laser Cutting Machine For Copper Steel Cutting
Overview
STC021 Precise fiber laser cutting machine Adopt a 1000W fiber laser source and a mini cabinet to save shipping costs.
The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operating the machine. The laser cutter machine can reach European safety standards. Best choice for high safety request customers.
Laser fiber laser cutting machine is widely used in hardware, precise machinery, automobile components,
glasses clocks and watches, precise cutting, medical equipment, instrument, and other metal-related industry.
The fiber laser cutting machine is suitable for stainless steel, carbon steel, Copper, and Aluminum, to cut and punch,
the cutting speed and incision are both high levels, CN program can process any graphics and text.
Parameter data
| Laser output power | 1000W |
| Laser wavelength | 1080 nm |
| Laser medium | Glass fiber with the rare-earth element |
| Repeat accuracy | ±0.01mm |
| Max cutting speed | 18m/min |
| Max cutting thickness | 3-6mm according to material |
| Output energy regulating | 10%~100% |
| Input electric power for laser | ≤2KW |
| Type of cooling | Water cooling |
| Drive mode | Imported servo motor |
| Transmission mode | Imported high precision Rack and Pinion |
| X Y axis movement | 600mm×600 mm (Optional: 200x200mm,300x300mm,400x400mm,500x500mm) |
| Z axis movement | 100mm |
| Power supply | Single phase 220V/50HZ |
| Contour dimension | 1900mm×1550 mm×1800 mm |
| Weight | 800kg |

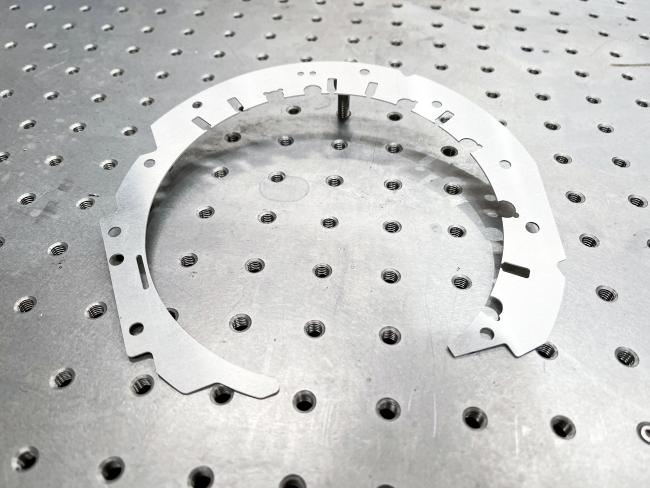

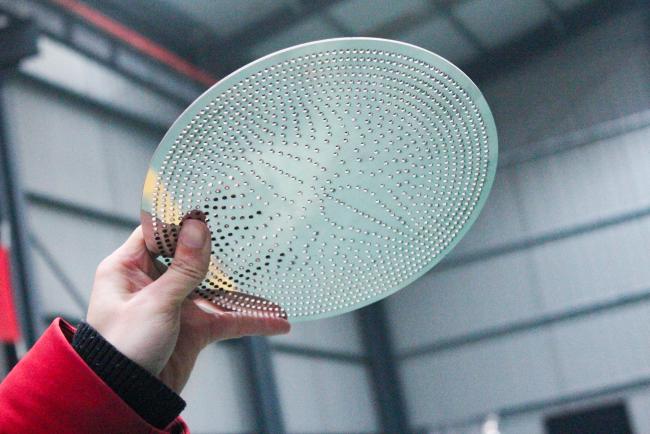

Samples

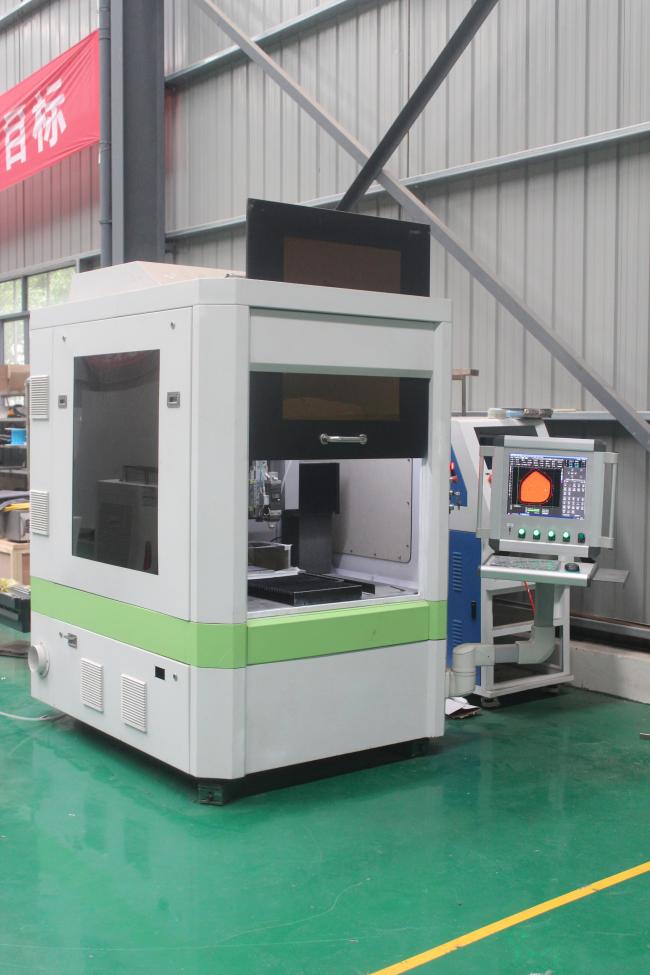

Machine outlook
