Fiber Laser Cutting Machine

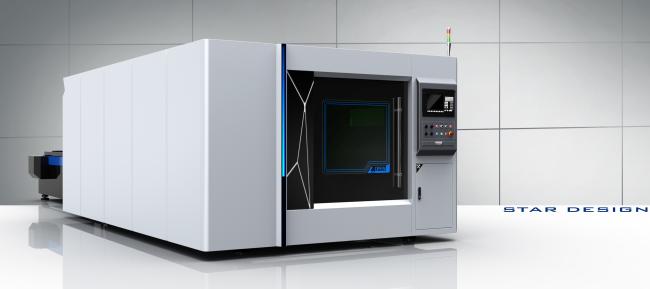

High power Enclosed metal machinery 8000W 12000W Fiber Laser cutting iron sheet plate steel equipment
Product Application
Cutting a wide variety of metal plates,tubes,mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rate metal and other materials cutting.
Application Industry
Industry of kitchen ware,lamps and lanterns,panel beating,metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
| Working area | 1500*3000mm | Graphic format accuracy | CAD,DXF,etc |
| Laser type | Fiber laser generator | Working enviroment | Temp:0-40℃,humidity:≤80%,No condensation |
| Transmission system | Gantry double-drive structure | Power supply | Triphase 380V,50Hz,60Hz |
| Laser power(optional) | 500W-3000W | Overall diension | 4450*2450*1800mm |
| Positioning accuracy | 0.03mm | Gross weight | 5000KG |
| Reposition accuracy | 0.02mm | Maximum speed | 100m/min |
| Maximum accelerated | 1.0G |
Main Features
1) High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
2) Gantry double-drive structure, with imported German rack&pinion transmission system,improves the production efficiency.
3) High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
4) Open worktable, simple operation and small space occupation.
