OSW1×N RS232 SM MM 850/1310/1550 optical fiber switch High Reliability
OSW1×N RS232 SM optical fiber switch
Introduction of OSW 1*N optical fiber switch
1×N Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Product Features of RS232 optical switch
- Modular Design
- Fast Switching Time
- Low IL,Good Repeatability
- High Reliability and Stability
Specifications
| Parameters | Unit | GP-OSW1×N-232 | |||
| Insertion Loss | dB | 1 < N ≤ 32 | 32 < N ≤ 64 | 64 < N ≤ 128 | |
| Type: 0.8 Max: 1.0 | Type: 0.8 Max: 1.2 | Type: 0.8 Max: 1.3 | |||
| Wavelength Range | nm | 850±40 / 1300±40,1550 MM | 1260 ~ 1650 SM | ||
| Test Wavelength | nm | 850 / 1300,1550 MM | 1310 / 1550 SM | ||
| Return Loss | dB | MM ≥ 30 SM ≥ 50 | |||
| PDL | dB | ≤ 0.05 | |||
| ER (PM swtich) | dB | ≥ 16 (PoIarization Maintaining switch) | |||
| Repeatability | dB | ≤ ±0.05 | |||
| Durability | Cycles | ≥ 10 Million | |||
| Switching Time | ms | ≤ 10(Sequence switch time of adjacent channel) | |||
| Optical Power | mW | ≤500 | |||
| Storage Temperature | ℃ | -40 ~ +85 | |||
| Relative Humidity | % | 5 ~ 95 | |||
| Dimension | mm | 135×40×32 (N≤12) | 135×60×32(N≤18) | 135×60×38 (N≤32) | |
| 150×80×67 (N≤64) | 165×100×100 (N≤98) | 185×130×130 (N≤128) | |||
Pin Configurations
RS232 DB-9 male connector (max.1×16)
| Pin No. | Signal Name | I / O | Description |
| 2 | Sout | Output | RS232 data Tx |
| 3 | Sin | Input | RS232 data Rx |
| 5 | Sgnd | Input | RS232 Ground |
| 8 | +5VDC | Input | 5.0±5% VDC Power Supply (max 800mA) |
| 9 | GND | Input | Ground |
|
1,4,6,7,10, 11,12,13,14,15 |
NA |
RS232 DB-15 male connector (max.1×32)
| Pin No. | Signal Name | I / O | Description |
| 2 | Sout | Output | RS232 data Tx |
| 3 | Sin | Input | RS232 data Rx |
| 5 | Sgnd | Input | RS232 Ground |
| 8 | +5VDC | Input | 5.0±5% VDC Power Supply (max 800mA) |
| 9 | GND | Input | Ground |
| 1,4,6,7,10, 11,12,13,14,15 | NA |
Serial port settings: 9600 baud rate, 8 bit data bits, 1 bit stop bits, no parity check.
Optical Route
Dimension(DBx male head or female head is defined as the actual mark of the element)

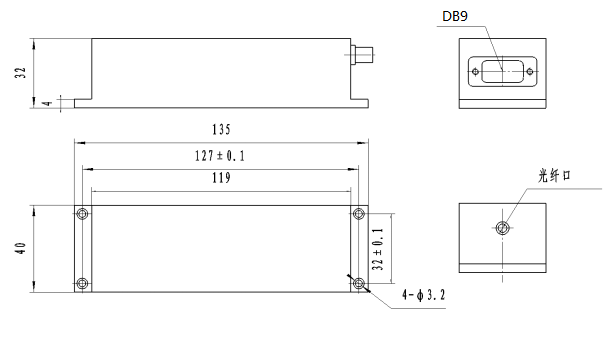

Ø 01: 135×40×32-DB9 (N≤12, DB-9 male)

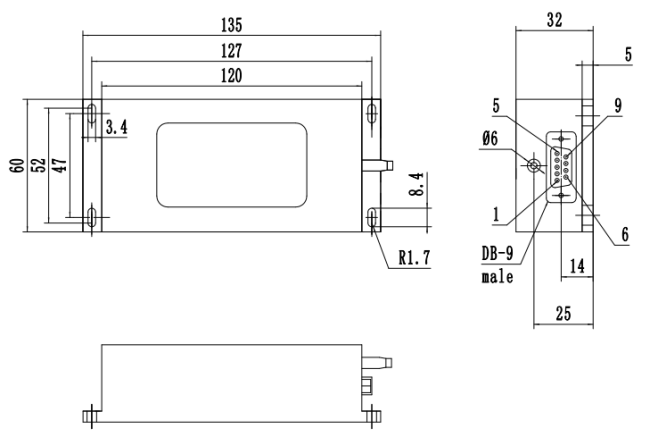

Ø 02: 135×60×32-DB9 (N≤16, DB-9 male)
Ø 03: 135×60×32-DB15 (N≤18, DB-15 male)

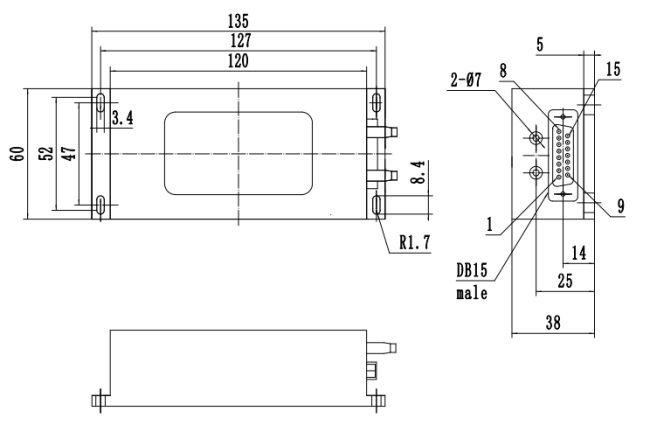

Ø 04: 135×60×38-DB15 (N≤32, DB-15 male)

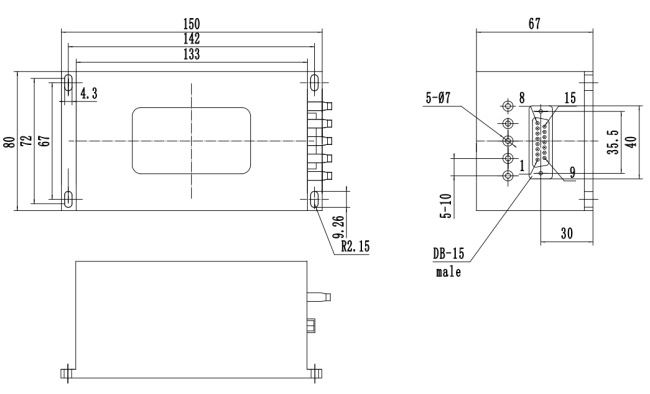

Ø 05: 150×80×67-DB15 (N≤64, DB-15 male)

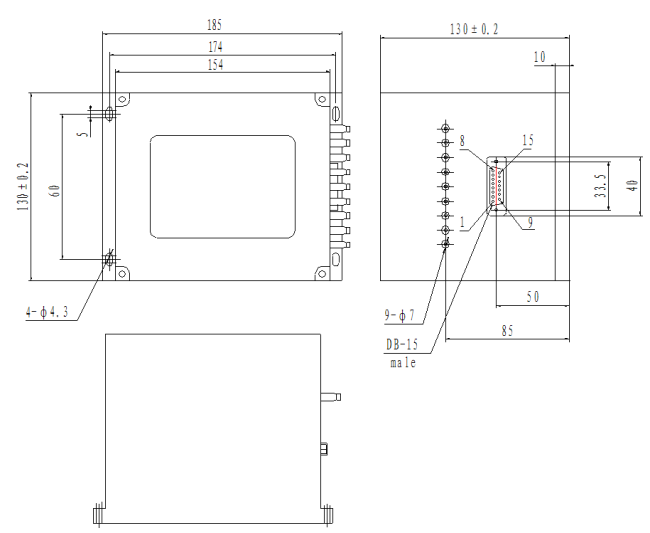

Ø 06: 185×130×130-DB15 (N≤128, DB-15 male)
