1×64 TTL SM MM 850/1310/1550 optical fiber switch for protection High Reliability

Price Negotiable

Price: negotiable

MOQ: 1PC

Delivery Time: 4-7 working days

Brand: Iseelink

Product Description

OSW1×64 TTL optical fiber switch

Introduction of OSW 1*48 optical fiber switch

Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Product Features of TTL optical switch

·Low Loss and High Reliability

·Parallel Interface (TTL)

·Modularized Design

·Epoxy-free on Optical Path

Specifications

Parameters	Unit	OSW1×64
Insertion Loss	dB	≤ 1.2
Wavelength Range	nm	850±40 / 1300±40,MM	1260 ~ 1650 SM
Test Wavelength	nm	850 / 1300,MM	1310 / 1550 SM
Return Loss	dB	MM ≥ 30 SM ≥ 50
Crosstalk	dB	≥ 70
PDL	dB	≤ 0.05
WDL	dB	≤ 0.25
TDL	dB	≤ 0.25
Repeatability	dB	≤ ±0.05
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤ 10(Sequence switch time of adjacent channel)
Optical Power	mW	≤500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95

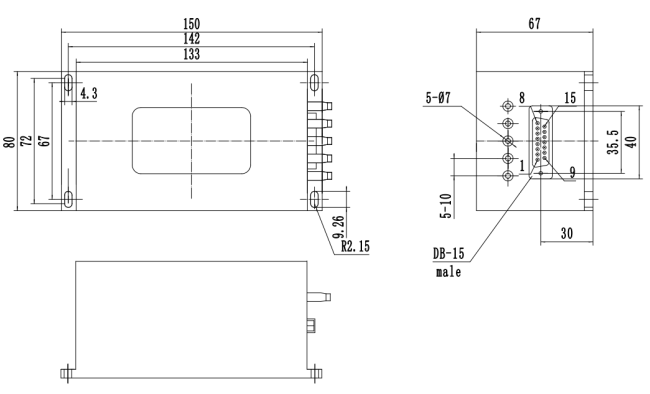

Dimension	mm	150×80×67

Pin Configurations

DB-15 male connector

Pin No.	Signal Name	I / O	Description
2	D0	Input	TTL, Channel selection bit 0
3	D1	Input	TTL, Channel selection bit 1
4	D2	Input	TTL, Channel selection bit 2
5	D3	Input	TTL, Channel selection bit 3
6	D4	Input	TTL, Channel selection bit 4
10	D5	Input	TTL, Channel selection bit 5

Channel Selection Table

Max Channel	Input								Active Channel
Max Channel	/RESET	D6	D5	D4	D3	D2	D1	D0	Active Channel
N=128	0	x	x	x	x	x	x	x	0 reset
	1	0	0	0	0	0	0	0	COM → 1
		0	0	0	0	0	0	1	COM → 2
		0	0	0	0	0	1	0	COM → 3
		…	…	…	…	…	…	…	…
		1	1	1	1	1	1	1	COM → 128
