10G Transponder Muxponder OTU Card 4 SFP+ Hot Pluggable 3R 2R
10G OTU Card: 4 SFP+ Hot-pluggable, 3R/2R, 42M~11.3G, -5℃~+60℃ for WDM System
10G OTU service card launched by Shenzhen ISEELINK Communication Technology Co., Ltd. supports four types of service access with 42M~11.3G rates.,its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for any access of services with a rate of 11.3G or below.
Product Diagram

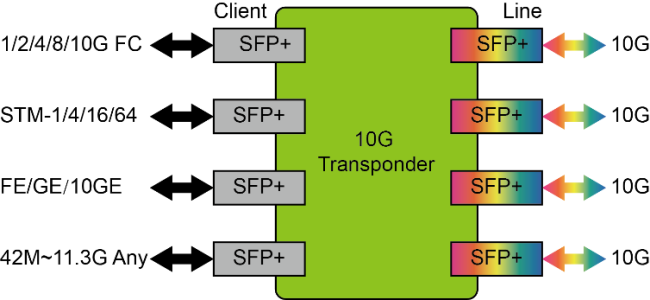

Functional Structure
Product Application
-
Telecom
-
Datacenter
-
5G Network
-
Long Haul Network
Product Specification
| Function | Note | |
| Card type | 10G OTU-3R | 10G OTU-2R |
| interface |
|
|
| Line mode | Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. | |
| Relay mode | Support 42M~11.3G wavelength electrical relay | |
| Support service type |
l GE, 10GE l 1/2/4/8/10G FC l STM-16/64 l CPRI-2/3/6/7 |
l FE, GE, 10GE l 1/2/4/8/10G FC l STM-1/4/16/64, OTU1/OTU2/OTU2e l CPRI-1~8, 42M~11.3G Any |
| WDM technology |
l Support CWDM: 18 waves l Support DWDM: C band 50GHz 96 waves |
|
| Occupied slot number | Support OSP3800 series chassis, occupy 1 slot,(0.5U) | |
| Network management function | Support real-time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. | |
| Power consumption | 16W (max, including transceiver) | |
| MTBF | ＞100000 hours | |
| NMS management card | 100G QSFP28 to CFP transponder | 2xQSFP28 to CFP2 200G Muxponder |
| 100G Muxponder:QSFP28 ↔4xSFP28 | 40G&100G OEO:6*QSFP28 | SFP28 25G Quad transponder |
| SFP+ Multi-Rate Quad transponder | Redundant Multi-Rate Dual transponder | EDFA Optical Amplifiers |
| Bidi EDFA Optical Amplifiers | 16ch DWDM MUX/DEMUX | 40ch DWDM MUX/DEMUX(AAWG) |
| OLP Optical Line Protector | DWDM Passive Optical Add/Drop Multiplexers | / |
